Overview

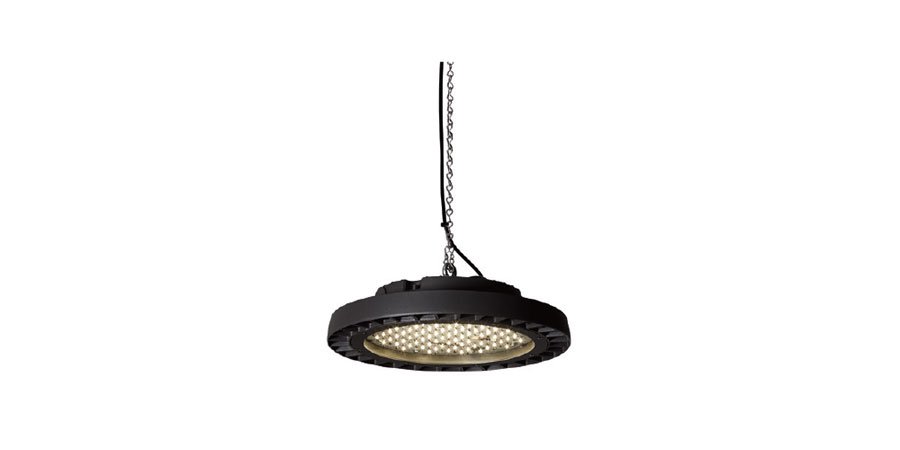

KONAK

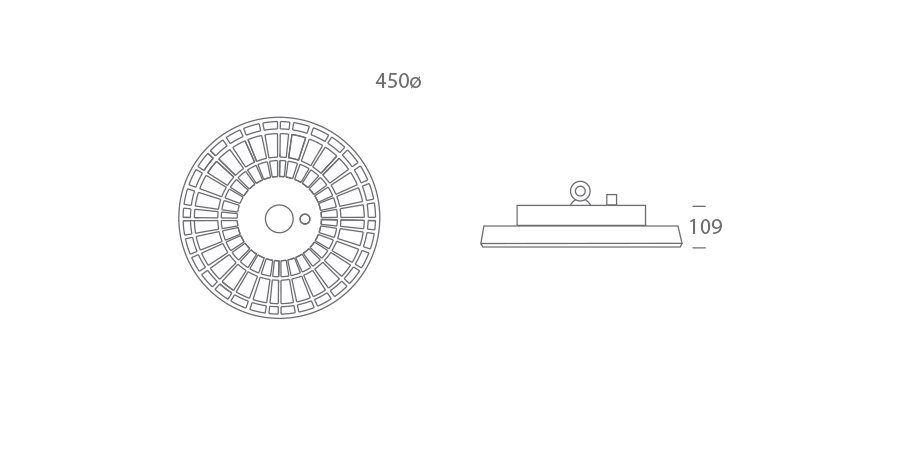

KONAK diagram

Product Details

  • IP65 Rated
  • Available in 3000K, 4000K or 5000K
  • Available as 40w, 100w, 150w. 200w, 250w
  • Supplied with quick connector and hook for suspending
  • Dark grey powdercoat
  • 80° or 150° optics
  • Option of ceiling mounting “U” bracket
  • Made in EU

Optional Accessories

  • Ceiling mouting bracket (Order code – KUSTO.BRKT)

Codes & Downloads

KONAK LED

80° Optics 150° Optics CCT 80° Lumens 150° Lumens Watts
4290.58.40.83.80 4290.58.40.83.150 3000K 4066 4275 40
4290.58.40.84.80 4290.58.40.84.150 4000K 4210 4675 40
4290.58.40.85.80 4290.58.40.85.150 5000K 4356 5131 40
4290.58.10.83.80 4290.58.10.83.150 3000K 9713 10213 100
4290.58.10.84.80 4290.58.10.84.150 4000K 10059 11167 100
4290.58.10.85.80 4290.58.10.85.150 5000K 10406 12256 100
4290.58.15.83.80 4290.58.15.83.150 3000K 14456 15202 150
4290.58.15.84.80 4290.58.15.84.150 4000K 14972 16620 150
4290.58.15.85.80 4290.58.15.85.150 5000K 15488 18242 150
4290.58.20.83.80 4290.58.20.83.150 3000K 19425 20427 200
4290.58.20.84.80 4290.58.20.84.150 4000K 20118 22334 200
4290.58.20.85.80 4290.58.20.85.150 5000K N/A 24513 200
4290.58.25.83.80 4290.58.25.83.150 3000K 23717 24940 250
4290.58.25.84.80 4290.58.25.84.150 4000K 24563 27268 250
4290.58.25.85.80 4290.58.25.85.150 5000K 25410 29928 250

Download the IES file for KONAK
