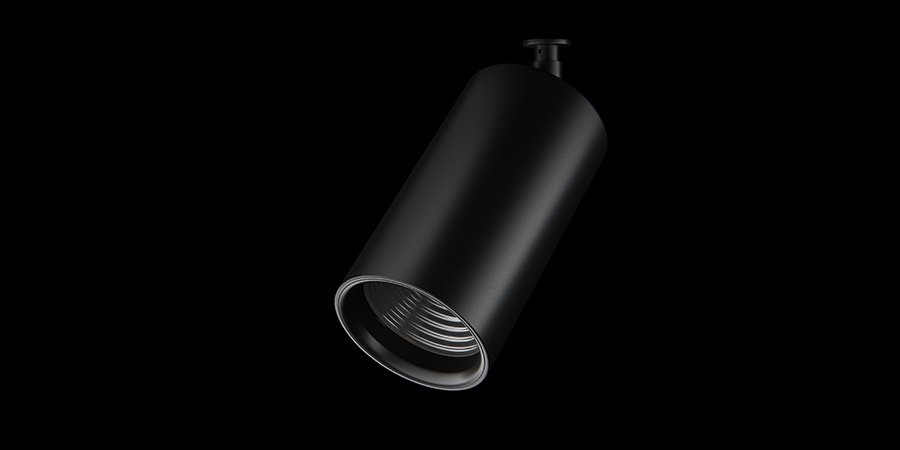

DISPLAY TRACKLIGHT
DISPLAY TRACKLIGHT diagram

Product Description

With an echo to classic designs of the past, but with an eye firmly on the future the Luxient Trackspot 66 offers perfect versatility and performance in any environment where both spot and track lighting is the preferred solution. Presenting in a sleek, modern cylindrical housing this luminaire is available with Variable Output Technology to optimise performance to exact project requirements and power usage.

Flexible Optic Technology enables the Trackspot 66 to deliver more accurate optics by offering flexibility to mix and match primary optics with secondary lenses and anti glare accessories to achieve the perfect results.

Product Details

Absolute luminous flux 435lm – 1175lm
System watts 8W / 10W / 12W / 14W
Luminaire efficacy up to 89lm/W
Colour deviation 2 SDCM
Colour rendition Index >95
Correlated colour temperature 3000K / 4000K
Lumen maintenance L90B10 90,000hours
Optic PMMA Clear lens, PC black holder
Beam angle 14° / 23° / 44° / 55° / 38°x57° / 21°– 46°adjustable
Dimming method DALI / Casambi
Luminaire housing Aluminium
Luminaire baffle colour Black
Luminaire housing colour Black / White / Custom
Custom body finishes Custom powdercoat colour
Country of origin Australia

Codes & Downloads

Non Dimmable DALI Dimmable Casambi Dimmable Beam Angle CCT Lumens Watts
LXTL66.200.14.93.61 N/A LXTL66.200.14.93.68 14° 3000K 507 8
LXTL66.200.14.94.61 N/A LXTL66.200.14.94.68 14° 4000K 554 8
LXTL66.200.23.93.61 N/A LXTL66.200.23.93.68 23° 3000K 487 8
LXTL66.200.23.94.61 N/A LXTL66.200.23.94.68 23° 4000K 532 8
LXTL66.200.44.93.61 N/A LXTL66.200.44.93.68 44° 3000K 664 8
LXTL66.200.44.94.61 N/A LXTL66.200.44.94.68 44° 4000K 725 8
LXTL66.200.55.93.61 N/A LXTL66.200.55.93.68 55° 3000K 659 8
LXTL66.200.55.94.61 N/A LXTL66.200.55.94.68 55° 4000K 720 8
LXTL66.200.OV.93.61 N/A LXTL66.200.OV.93.68 38°x 57° 3000K 395 8
LXTL66.200.OV.94.61 N/A LXTL66.200.OV.94.68 38°x 57° 4000K 435 8
LXTL66.200.AJ.93.61 N/A LXTL66.200.AJ.93.68 21°– 46° 3000K 481 8
LXTL66.200.AJ.94.61 N/A LXTL66.200.AJ.94.68 21°– 46° 4000K 523 8
Non Dimmable DALI Dimmable Casambi Dimmable Beam Angle CCT Lumens Watts
LXTL66.250.14.93.61 N/A LXTL66.250.14.93.68 14° 3000K 611 10
LXTL66.250.14.94.61 N/A LXTL66.250.14.94.68 14° 4000K 668 10
LXTL66.250.23.93.61 N/A LXTL66.250.23.93.68 23° 3000K 590 10
LXTL66.250.23.94.61 N/A LXTL66.250.23.94.68 23° 4000K 645 10
LXTL66.250.44.93.61 N/A LXTL66.250.44.93.68 44° 3000K 805 10
LXTL66.250.44.94.61 N/A LXTL66.250.44.94.68 44° 4000K 880 10
LXTL66.250.55.93.61 N/A LXTL66.250.55.93.68 55° 3000K 800 10
LXTL66.250.55.94.61 N/A LXTL66.250.55.94.68 55° 4000K 875 10
LXTL66.250.OV.93.61 N/A LXTL66.250.OV.93.68 38°x 57° 3000K 485 10
LXTL66.250.OV.94.61 N/A LXTL66.250.OV.94.68 38°x 57° 4000K 530 10
LXTL66.250.AJ.93.61 N/A LXTL66.250.AJ.93.68 21°– 46° 3000K 602 10
LXTL66.250.AJ.94.61 N/A LXTL66.250.AJ.94.68 21°– 46° 4000K 654 10
Non Dimmable DALI Dimmable Casambi Dimmable Beam Angle CCT Lumens Watts
LXTL66.300.14.93.61 LXTL66.300.14.93.66 LXTL66.300.14.93.68 14° 3000K 721 12
LXTL66.300.14.94.61 LXTL66.300.14.94.66 LXTL66.300.14.94.68 14° 4000K 788 12
LXTL66.300.23.93.61 LXTL66.300.23.93.66 LXTL66.300.23.93.68 23° 3000K 685 12
LXTL66.300.23.94.61 LXTL66.300.23.94.66 LXTL66.300.23.94.68 23° 4000K 748 12
LXTL66.300.44.93.61 LXTL66.300.44.93.66 LXTL66.300.44.93.68 44° 3000K 954 12
LXTL66.300.44.94.61 LXTL66.300.44.94.66 LXTL66.300.44.94.68 44° 4000K 1040 12
LXTL66.300.55.93.61 LXTL66.300.55.93.66 LXTL66.300.55.93.68 55° 3000K 938 12
LXTL66.300.55.94.61 LXTL66.300.55.94.66 LXTL66.300.55.94.68 55° 4000K 1025 12
LXTL66.300.OV.93.61 LXTL66.300.OV.93.66 LXTL66.300.OV.93.68 38°x 57° 34000K 565 12
LXTL66.300.OV.94.61 LXTL66.300.OV.94.66 LXTL66.300.OV.94.68 38°x 57° 4000K 620 12
LXTL66.300.AJ.93.61 LXTL66.300.AJ.93.66 LXTL66.300.AJ.93.68 21°– 46° 3000K 709 12
LXTL66.300.AJ.94.61 LXTL66.300.AJ.93.66 LXTL66.300.AJ.94.68 21°– 46° 4000K 770 12
Non Dimmable DALI Dimmable Casambi Dimmable Beam Angle CCT Lumens Watts
LXTL66.350.14.93.61 LXTL66.350.14.93.66 LXTL66.350.14.93.68 14° 3000K 811 14
LXTL66.350.14.94.61 LXTL66.350.14.94.66 LXTL66.350.14.94.68 14° 4000K 885 14
LXTL66.350.23.93.61 LXTL66.350.23.93.66 LXTL66.350.23.93.68 23° 3000K 794 14
LXTL66.350.23.94.61 LXTL66.350.23.94.66 LXTL66.350.23.94.68 23° 4000K 865 14
LXTL66.350.44.93.61 LXTL66.350.44.93.66 LXTL66.350.44.93.68 44° 3000K 1067 14
LXTL66.350.44.94.61 LXTL66.350.44.94.66 LXTL66.350.44.94.68 44° 4000K 1165 14
LXTL66.350.55.93.61 LXTL66.350.55.93.66 LXTL66.350.55.93.68 55° 3000K 1077 14
LXTL66.350.55.94.61 XTL66.350.55.94.66 LXTL66.350.55.94.68 55° 4000K 1175 14
LXTL66.350.OV.93.61 LXTL66.350.OV.93.66 LXTL66.350.OV.93.68 38°x 57° 3000K 650 14
LXTL66.350.OV.94.61 LXTL66.350.OV.94.66 LXTL66.350.OV.94.68 38°x 57° 4000K 710 14
LXTL66.350.AJ.93.61 LXTL66.350.AJ.93.66 LXTL66.350.AJ.93.68 21°– 46° 3000K 834 14
LXTL66.350.AJ.94.61 LXTL66.300.AJ.94.66 LXTL66.350.AJ.94.68 21°– 46° 4000K 907 14

For more details, download the LUXIENT TRACKSPOT 66 | LENS Information Sheet
