Overview
Product Description

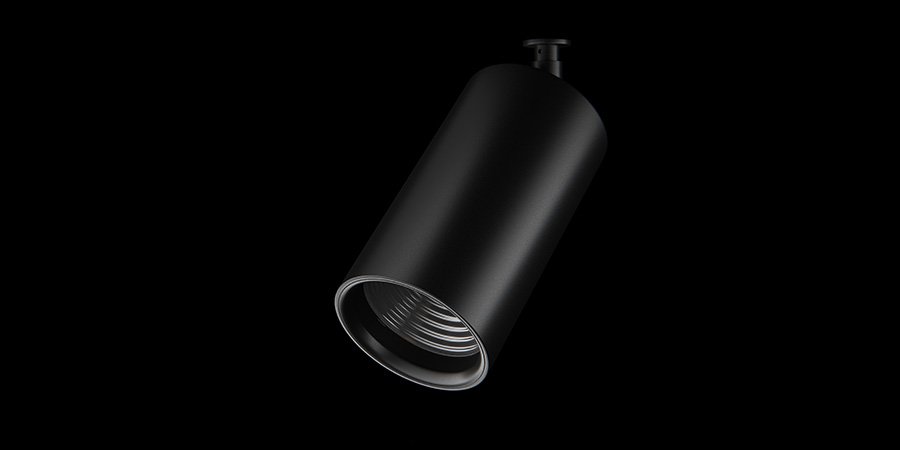

With an echo to classic designs of the past, but with an eye firmly on the future the Luxient Trackspot 90 offers perfect versatility and performance in any environment where both spot and track lighting is the preferred solution. Presenting in a sleek, modern cylindrical housing this luminaire is available with Variable Output Technology to optimise performance to exact project requirements and power usage.
Flexible Optic Technology enables the Trackspot 90 to deliver more accurate optics by offering flexibility to mix and match primary optics with secondary lenses and anti glare accessories to achieve the perfect results.
Product Details
| Absolute luminous flux | 447lm – 1491lm |
| System watts | 8W / 10W / 12W / 14W / 16W / 18W / 20W |
| Luminaire efficacy | up to 80lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 3000K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Optic | PMMA Clear lens, PC black holder |
| Beam angle | 13° / 23° / 42° / 54° / 62° / 37°x60° |
| Dimming method | DALI / Casambi |
| Luminaire housing | Aluminium |
| Luminaire baffle colour | Black |
| Luminaire housing colour | Black / White / Custom |
| Custom body finishes | Custom powdercoat colour |
| Country of origin | Australia |
Codes & Downloads
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.200.13.93.61 | N/A | LXTL90.200.13.93.68 | 13° | 3000K | 498 | 8 |
| LXTL90.200.13.94.61 | N/A | LXTL90.200.13.94.68 | 13° | 4000K | 545 | 8 |
| LXTL90.200.23.93.61 | N/A | LXTL90.200.23.93.68 | 23° | 3000K | 500 | 8 |
| LXTL90.200.23.94.61 | N/A | LXTL90.200.23.94.68 | 23° | 4000K | 546 | 8 |
| LXTL90.200.42.93.61 | N/A | LXTL90.200.42.93.68 | 42° | 3000K | 609 | 8 |
| LXTL90.200.42.94.61 | N/A | LXTL90.200.42.94.68 | 42° | 4000K | 666 | 8 |
| LXTL90.200.54.93.61 | N/A | LXTL90.200.54.93.68 | 54° | 3000K | 539 | 8 |
| LXTL90.200.54.94.61 | N/A | LXTL90.200.54.94.68 | 54° | 4000K | 587 | 8 |
| LXTL90.200.62.93.61 | N/A | LXTL90.200.62.93.68 | 62° | 3000K | 592 | 8 |
| LXTL90.200.62.94.61 | N/A | LXTL90.200.62.94.68 | 62° | 4000K | 645 | 8 |
| LXTL90.200.OV.93.61 | N/A | LXTL90.200.OV.93.68 | 37°x60° | 3000K | 447 | 8 |
| LXTL90.200.OV.94.61 | N/A | LXTL90.200.OV.94.68 | 37°x60° | 4000K | 489 | 8 |
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.250.13.93.61 | N/A | LXTL90.250.13.93.68 | 13° | 3000K | 608 | 10 |
| LXTL90.250.13.94.61 | N/A | LXTL90.250.13.94.68 | 13° | 4000K | 666 | 10 |
| LXTL90.250.23.93.61 | N/A | LXTL90.250.23.93.68 | 23° | 3000K | 610 | 10 |
| LXTL90.250.23.94.61 | N/A | LXTL90.250.23.94.68 | 23° | 4000K | 668 | 10 |
| LXTL90.250.42.93.61 | N/A | LXTL90.250.42.93.68 | 42° | 3000K | 744 | 10 |
| LXTL90.250.42.94.61 | N/A | LXTL90.250.42.94.68 | 42° | 4000K | 814 | 10 |
| LXTL90.250.54.93.61 | N/A | LXTL90.250.54.93.68 | 54° | 3000K | 660 | 10 |
| LXTL90.250.54.94.61 | N/A | LXTL90.250.54.94.68 | 54° | 4000K | 722 | 10 |
| LXTL90.250.62.93.61 | N/A | LXTL90.250.62.93.68 | 62° | 3000K | 734 | 10 |
| LXTL90.250.62.94.61 | N/A | LXTL90.250.62.94.68 | 62° | 4000K | 802 | 10 |
| LXTL90.250.OV.93.61 | N/A | LXTL90.250.OV.93.68 | 37°x60° | 3000K | 546 | 10 |
| LXTL90.250.OV.94.61 | N/A | LXTL90.250.OV.94.68 | 37°x60° | 4000K | 598 | 10 |
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.300.13.93.61 | LXTL90.300.13.93.66 | LXTL90.300.13.93.68 | 13° | 3000K | 716 | 12 |
| LXTL90.300.13.94.61 | LXTL90.300.13.94.66 | LXTL90.300.13.94.68 | 13° | 4000K | 782 | 12 |
| LXTL90.300.23.93.61 | LXTL90.300.23.93.66 | LXTL90.300.23.93.68 | 23° | 3000K | 717 | 12 |
| LXTL90.300.23.94.61 | LXTL90.300.23.94.66 | LXTL90.300.23.94.68 | 23° | 4000K | 784 | 12 |
| LXTL90.300.42.93.61 | LXTL90.300.42.93.66 | LXTL90.300.42.93.68 | 42° | 3000K | 875 | 12 |
| LXTL90.300.42.94.61 | LXTL90.300.42.94.66 | LXTL90.300.42.94.68 | 42° | 4000K | 956 | 12 |
| LXTL90.300.54.93.61 | LXTL90.300.54.93.66 | LXTL90.300.54.93.68 | 54° | 3000K | 871 | 12 |
| LXTL90.300.54.94.61 | LXTL90.300.54.94.66 | LXTL90.300.54.94.68 | 54° | 4000K | 854 | 12 |
| LXTL90.300.62.93.61 | LXTL90.300.62.93.66 | LXTL90.300.62.93.68 | 62°° | 3000K | 843 | 12 |
| LXTL90.300.62.94.61 | LXTL90.300.62.94.66 | LXTL90.300.62.94.68 | 62° | 4000K | 920 | 12 |
| LXTL90.300.OV.93.61 | LXTL90.300.OV.93.66 | LXTL90.300.OV.93.68 | 37°x60° | 3000K | 642 | 12 |
| LXTL90.300.OV.94.61 | LXTL90.300.OV.94.66 | LXTL90.300.OV.94.68 | 37°x60° | 4000K | 702 | 12 |
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.350.13.93.61 | LXTL90.350.13.93.66 | LXTL90.350.13.93.68 | 13° | 3000K | 820 | 14 |
| LXTL90.350.13.94.61 | LXTL90.350.13.94.66 | LXTL90.350.13.94.68 | 13° | 4000K | 895 | 14 |
| LXTL90.350.23.93.61 | LXTL90.350.23.93.66 | LXTL90.350.23.93.68 | 23° | 3000K | 822 | 14 |
| LXTL90.350.23.94.61 | LXTL90.350.23.94.66 | LXTL90.350.23.94.68 | 23° | 4000K | 898 | 14 |
| LXTL90.350.42.93.61 | LXTL90.350.42.93.66 | LXTL90.350.42.93.68 | 42° | 3000K | 1002 | 14 |
| LXTL90.350.42.94.61 | LXTL90.350.42.94.66 | LXTL90.350.42.94.68 | 42° | 4000K | 1094 | 14 |
| LXTL90.350.54.93.61 | LXTL90.350.54.93.66 | LXTL90.350.54.93.68 | 54° | 3000K | 899 | 14 |
| LXTL90.350.54.94.61 | LXTL90.350.54.94.66 | LXTL90.350.54.94.68 | 54° | 4000K | 983 | 14 |
| LXTL90.350.62.93.61 | LXTL90.350.62.93.66 | LXTL90.350.62.93.68 | 62°° | 3000K | 954 | 14 |
| LXTL90.350.62.94.61 | LXTL90.350.62.94.66 | LXTL90.350.62.94.68 | 62° | 4000K | 1040 | 14 |
| LXTL90.350.OV.93.61 | LXTL90.350.OV.93.66 | LXTL90.350.OV.93.68 | 37°x60° | 3000K | 736 | 14 |
| LXTL90.350.OV.94.61 | LXTL90.350.OV.94.66 | LXTL90.350.OV.94.68 | 37°x60° | 4000K | 803 | 14 |
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.400.13.93.61 | LXTL90.400.13.93.66 | LXTL90.400.13.93.68 | 13° | 3000K | 921 | 16 |
| LXTL90.400.13.94.61 | LXTL90.400.13.94.66 | LXTL90.400.13.94.68 | 13° | 4000K | 1005 | 16 |
| LXTL90.400.23.93.61 | LXTL90.400.23.93.66 | LXTL90.400.23.93.68 | 23° | 3000K | 924 | 16 |
| LXTL90.400.23.94.61 | LXTL90.400.23.94.66 | LXTL90.400.23.94.68 | 23° | 4000K | 1008 | 16 |
| LXTL90.400.42.93.61 | LXTL90.400.42.93.66 | LXTL90.400.42.93.68 | 42° | 3000K | 1126 | 16 |
| LXTL90.400.42.94.61 | LXTL90.400.42.94.66 | LXTL90.400.42.94.68 | 42° | 4000K | 1229 | 16 |
| LXTL90.400.54.93.61 | LXTL90.400.54.93.66 | LXTL90.400.54.93.68 | 54° | 3000K | 1011 | 16 |
| LXTL90.400.54.94.61 | LXTL90.400.54.94.66 | LXTL90.400.54.94.68 | 54° | 4000K | 1107 | 16 |
| LXTL90.400.62.93.61 | LXTL90.400.62.93.66 | LXTL90.400.62.93.68 | 62°° | 3000K | 1091 | 16 |
| LXTL90.400.62.94.61 | LXTL90.400.62.94.66 | LXTL90.400.62.94.68 | 62° | 4000K | 1192 | 16 |
| LXTL90.400.OV.93.61 | LXTL90.400.OV.93.66 | LXTL90.400.OV.93.68 | 37°x60° | 3000K | 827 | 16 |
| LXTL90.400.OV.94.61 | LXTL90.400.OV.94.66 | LXTL90.400.OV.94.68 | 37°x60° | 4000K | 902 | 16 |
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.450.13.93.61 | LXTL90.450.13.93.66 | LXTL90.450.13.93.68 | 13° | 3000K | 1020 | 18 |
| LXTL90.450.13.94.61 | LXTL90.450.13.94.66 | LXTL90.450.13.94.68 | 13° | 4000K | 1116 | 18 |
| LXTL90.450.23.93.61 | LXTL90.450.23.93.66 | LXTL90.450.23.93.68 | 23° | 3000K | 1022 | 18 |
| LXTL90.450.23.94.61 | LXTL90.450.23.94.66 | LXTL90.450.23.94.68 | 23° | 4000K | 1118 | 18 |
| LXTL90.450.42.93.61 | LXTL90.450.42.93.66 | LXTL90.450.42.93.68 | 42° | 3000K | 1246 | 18 |
| LXTL90.450.42.94.61 | LXTL90.450.42.94.66 | LXTL90.450.42.94.68 | 42° | 4000K | 1363 | 18 |
| LXTL90.450.54.93.61 | LXTL90.450.54.93.66 | LXTL90.450.54.93.68 | 54° | 3000K | 1124 | 18 |
| LXTL90.450.54.94.61 | LXTL90.450.54.94.66 | LXTL90.450.54.94.68 | 54° | 4000K | 1231 | 18 |
| LXTL90.450.62.93.61 | LXTL90.450.62.93.66 | LXTL90.450.62.93.68 | 62°° | 3000K | 1193 | 18 |
| LXTL90.450.62.94.61 | LXTL90.450.62.94.66 | LXTL90.450.62.94.68 | 62° | 4000K | 1305 | 18 |
| LXTL90.450.OV.93.61 | LXTL90.450.OV.93.66 | LXTL90.450.OV.93.68 | 37°x60° | 3000K | 915 | 18 |
| LXTL90.450.OV.94.61 | LXTL90.450.OV.94.66 | LXTL90.450.OV.94.68 | 37°x60° | 4000K | 1001 | 18 |
| Non Dimmable | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|
| LXTL90.500.13.93.61 | LXTL90.500.13.93.66 | LXTL90.500.13.93.68 | 13° | 3000K | 1116 | 20 |
| LXTL90.500.13.94.61 | LXTL90.500.13.94.66 | LXTL90.500.13.94.68 | 13° | 4000K | 1220 | 20 |
| LXTL90.500.23.93.61 | LXTL90.500.23.93.66 | LXTL90.500.23.93.68 | 23° | 3000K | 1118 | 20 |
| LXTL90.500.23.94.61 | LXTL90.500.23.94.66 | LXTL90.500.23.94.68 | 23° | 4000K | 1223 | 20 |
| LXTL90.500.42.93.61 | LXTL90.500.42.93.66 | LXTL90.500.42.93.68 | 42° | 3000K | 1363 | 20 |
| LXTL90.500.42.94.61 | LXTL90.500.42.94.66 | LXTL90.500.42.94.68 | 42° | 4000K | 1491 | 20 |
| LXTL90.500.54.93.61 | LXTL90.500.54.93.66 | LXTL90.500.54.93.68 | 54° | 3000K | 1233 | 20 |
| LXTL90.500.54.94.61 | LXTL90.500.54.94.66 | LXTL90.500.54.94.68 | 54° | 4000K | 1349 | 20 |
| LXTL90.500.62.93.61 | LXTL90.500.62.93.66 | LXTL90.500.62.93.68 | 62°° | 3000K | 1283 | 20 |
| LXTL90.500.62.94.61 | LXTL90.500.62.94.66 | LXTL90.500.62.94.68 | 62° | 4000K | 1400 | 20 |
| LXTL90.500.OV.93.61 | LXTL90.500.OV.93.66 | LXTL90.500.OV.93.68 | 37°x60° | 3000K | 1001 | 20 |
| LXTL90.500.OV.94.61 | LXTL90.500.OV.94.66 | LXTL90.500.OV.94.68 | 37°x60° | 4000K | 1090 | 20 |
For more details, download the LUXIENT TRACKSPOT 90 | LENS Information Sheet
