Overview

QP PANEL

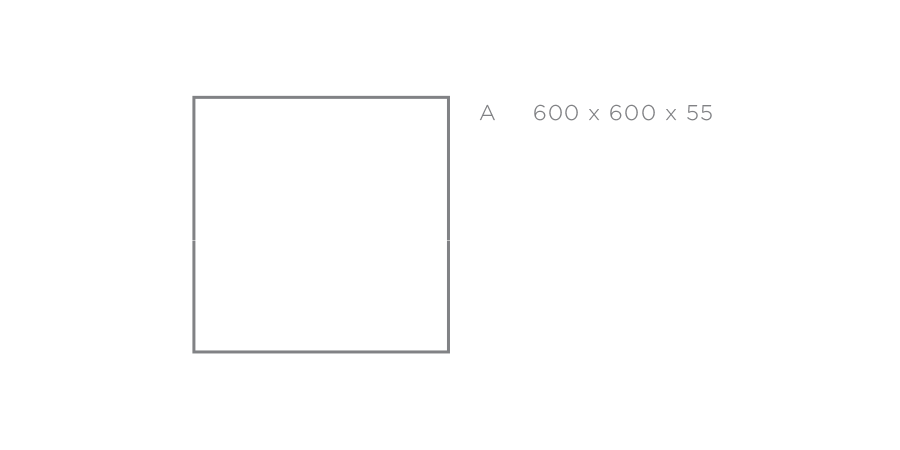

QR PANEL C diagram

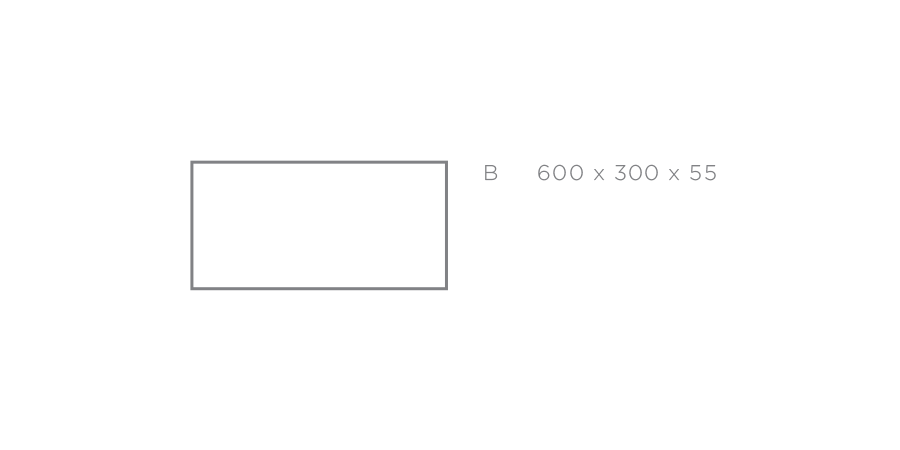

QS PANEL B diagram

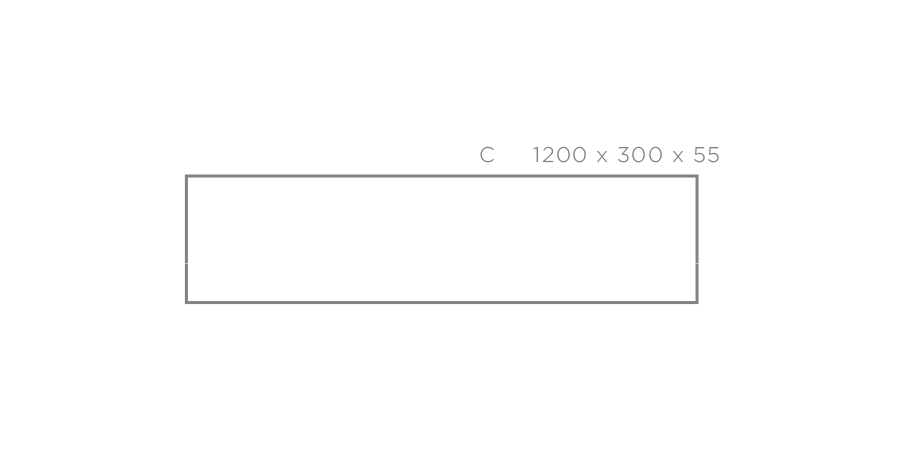

QS PANEL C diagram

Product Details

  • Suitable for surface mounting
  • 3000K, 4000K, 5300K
  • Edge lit technology for even illumination
  • 3 sizes available
  • Powdercoated body in white
  • Panel made in Europe

Codes & Downloads

QSA LED PANEL – 600 x 600

Non Dimmable DALI Dimmable CCT Lumens Watts Size (mm)
QS3A.500.61 QS3A.500.66 3000K 2700 26 600 x 600 x 55
QS3A.700.61 QS3A.700.66 3000K 4400 37 600 x 600 x 55
QS3A.1050.61 QS3A.1050.66 3000K 5000 57 600 x 600 x 55
QS4A.500.61 QS4A.500.66 4000K 2700 26 600 x 600 x 55
QS4A.700.61 QS4A.700.66 4000K 4400 37 600 x 600 x 55
QS4A.1050.61 QS4A.1050.66 4000K 5000 57 600 x 600 x 55
QS5A.500.61 QS5A.500.66 5300K 2700 26 600 x 600 x 55
QS5A.700.61 QS5A.700.66 5300K 3600 37 600 x 600 x 55
QS5A.1050.61 QS5A.1050.66 5300K 4900 57 600 x 600 x 55

QSB LED PANEL – 600 x 300

Non Dimmable DALI Dimmable CCT Lumens Watts Size (mm)
QS3B.350.61 QS3B.350.66 3000K 1600 18 600 x 300 x 55
QS4B.350.61 QS4B.350.66 4000K 1600 18 600 x 300 x 55
QS5B.350.61 QS5B.350.66 5300K 1600 18 600 x 300 x 55

QSC LED PANEL – 1200 x 300

Non Dimmable DALI Dimmable CCT Lumens Watts Size (mm)
QS3C.500.61 QS3C.500.66 3000K 2700 26 1200 x 300 x 55
QS3C.700.61 QS3C.700.66 3000K 4400 37 1200 x 300 x 55
QS3C.1050.61 QS3C.1050.66 3000K 5000 57 1200 x 300 x 55
QS4C.500.61 QS4C.500.66 4000K 2700 26 1200 x 300 x 55
QS4C.700.61 QS4C.700.66 4000K 4400 37 1200 x 300 x 55
QS4C.1050.61 QS4C.1050.66 4000K 5000 57 1200 x 300 x 55
QS5C.500.61 QS5C.500.66 5300K 2700 26 1200 x 300 x 55
QS5C.700.61 QS5C.700.66 5300K 3600 37 1200 x 300 x 55
QS5C.1050.61 QS5C.1050.66 5300K 4900 57 1200 x 300 x 55

For more details, download the QS PANEL Information Sheet

Download the IES file for QS PANEL
