QP PANEL

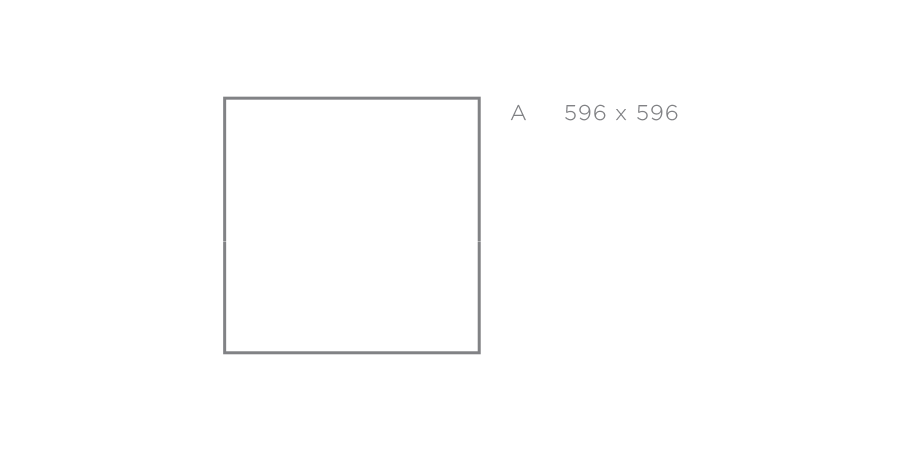

QT PANEL A diagram

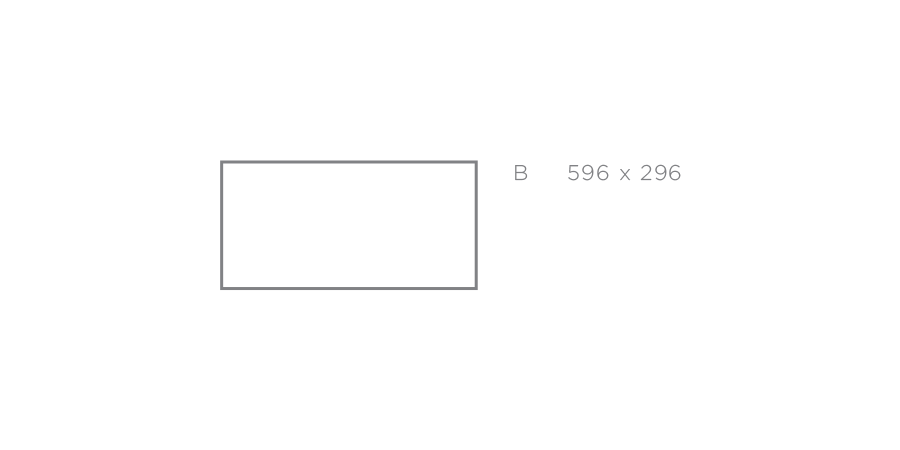

QT PANEL B diagram

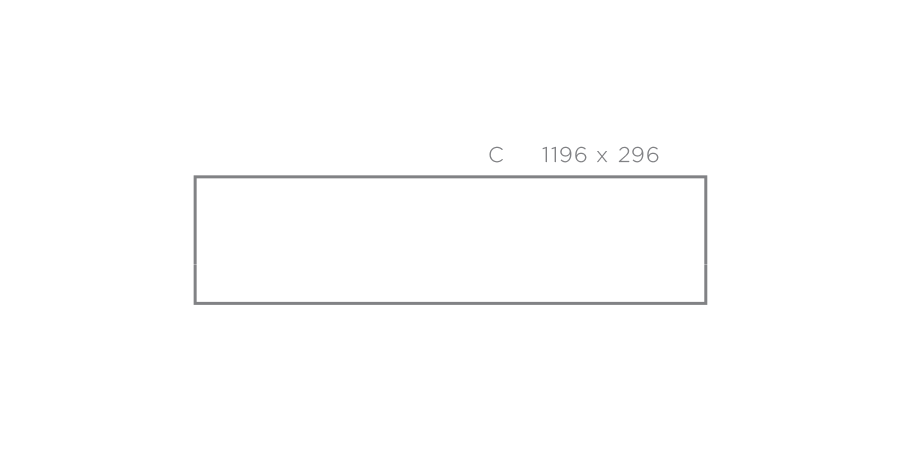

QT PANEL C diagram

Product Details

  • Suitable for T-bar ceilings
  • 3000K, 4000K, 5300K
  • Edge lit technology for even illumination
  • 3 sizes available
  • Anodised trim
  • Made in Europe

Codes & Downloads

QTA LED PANEL – 600 x 600

Non Dimmable DALI Dimmable CCT Lumens Watts Size (mm)
QT3A.500.61 QT3A.500.66 3000K 2700 26 596 x 596
QT3A.700.61 QT3A.700.66 3000K 4400 37 596 x 596
QT3A.1050.61 QT3A.1050.66 3000K 5000 57 596 x 596
QT4A.500.61 QT4A.500.66 4000K 2700 26 596 x 596
QT4A.700.61 QT4A.700.66 4000K 4400 37 596 x 596
QT4A.1050.61 QT4A.1050.66 4000K 5000 57 596 x 596
QT5A.500.61 QT5A.500.66 5300K 2700 26 596 x 596
QT5A.700.61 QT5A.700.66 5300K 3600 37 596 x 596
QT5A.1050.61 QT5A.1050.66 5300K 4900 57 596 x 596

QTB LED PANEL – 600 x 300

Non Dimmable DALI Dimmable CCT Lumens Watts Size (mm)
QT3B.350.61 QT3B.350.66 3000K 1600 18 596 x 296
QT4B.350.61 QT4B.350.66 4000K 1600 18 596 x 296
QT5B.350.61 QT5B.350.66 5300K 1600 18 596 x 296

QTC LED PANEL – 1200 x 300

Non Dimmable DALI Dimmable CCT Lumens Watts Size (mm)
QT3C.500.61 QT3C.500.66 3000K 2700 26 1196 x 296
QT3C.700.61 QT3C.700.66 3000K 4400 37 1196 x 296
QT3C.1050.61 QT3C.1050.66 3000K 5000 57 1196 x 296
QT4C.500.61 QT4C.500.66 4000K 2700 26 1196 x 296
QT4C.700.61 QT4C.700.66 4000K 4400 37 1196 x 296
QT4C.1050.61 QT4C.1050.66 4000K 5000 57 1196 x 296
QT5C.500.61 QT5C.500.66 5300K 2700 26 1196 x 296
QT5C.700.61 QT5C.700.66 5300K 3600 37 1196 x 296
QT5C.1050.61 QT5C.1050.66 5300K 4900 57 1196 x 296

For more details, download the QT PANEL Information Sheet

Download the IES file for QT PANEL
