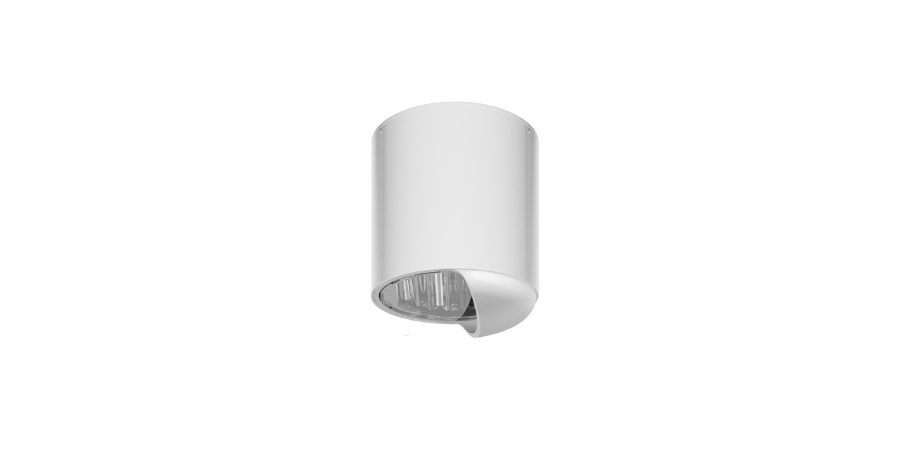

FSL70M MINI SURFACE WALL WASH

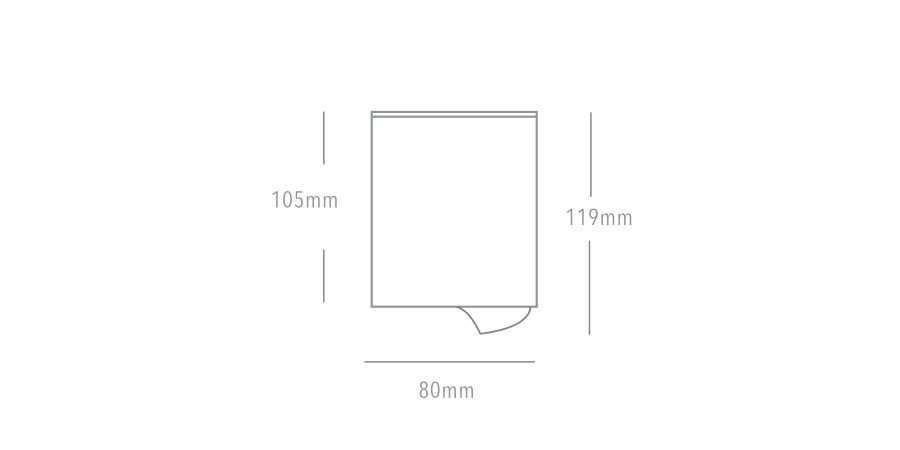

FSL70M MINI SURFACE WALL WASH Diagram

Product Description

The Flex 70 mini surface mounted downlight with wall wash optic presents a perfect solution for wall washing, offering an enviable spacing to offset ratio in a small luminaire footprint, perfect for interiors where recessed or track mounted luminaires are not suitable.

Product Details

Absolute luminous flux 691lm – 1107lm
System watts8W / 10W / 12W / 14W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL90B10 89,000hours
Dimming methodNon dimm / DALI / Casambi
Optic PMMA Clear Lens
Beam angleWall wash
DriverIntegral
Luminaire housingAluminium Powdercoated
Luminaire housing colourBlack / White / Custom
Luminaire baffle colourBlack / Custom
Custom body finishesCustom powdercoat colour
Country of origin Australia
Warranty 7 years

Best Practice Spacing & Placement Guide

WALL WASH Vertical Illumination
Vertical Illumination

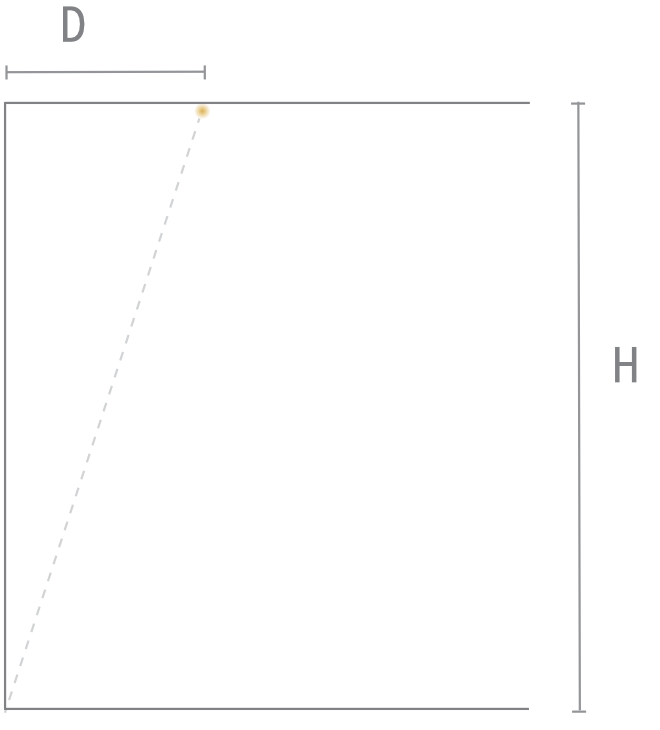

For uniform vertical illumination, wall washers should have a setback (D) from the wall of 0.3 time the height of your room (h)

Offset distance: D=0.3 x H

WALL WASH Horizontal Illumination
Horizontal Illumination

For uniform horizontal illumination, wall washers should use an on-centre fixture spacing (d1) ratio or two times the offset from the wall (D)

Luminaire spacing distance: d1=2 x D

D = Offset distance
H = height of room/wall height
d1 = Luminaire spacing

Quick Luminaire Spacing Guide

The below table provides a quick reference guide to which Flex wall washer luminaire to use along with offset and spacing recommendations at various heights. Listed is the optimum spacing when there are no on-site constraints and luminaire can be mounted as per optimum design requirements. These spacing guide achieves under the recommended uniformity of 3:1 av/min. at approx. 100lx av. on the wall.

Mounting HeightLuminaire OffsetLuminaire SpacingSpacing to Offset RatioUniformityAv. Luxluminaire version
2.4m0.7m1.5m2:1 <3134200mA / 8W
2.7m0.8m1.6m2:1 <3112 200mA / 8W
3.0m0.9m1.8m2:1 <3112250mA / 10W
3.3m1.0m2m2:1 <3106300mA / 12W
3.6m1.1m2.2m2:1 <3106350mA / 14W

Product Variants

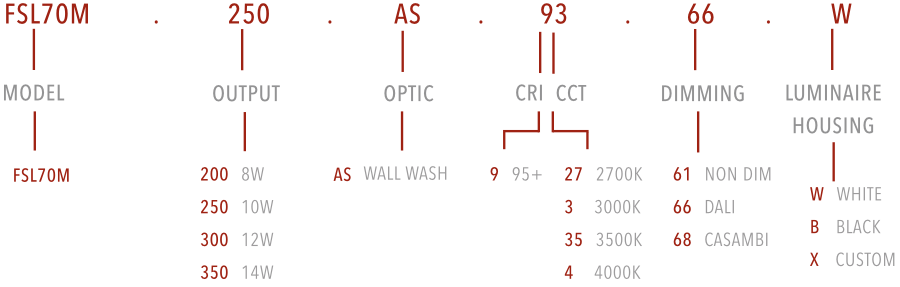

HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

For more details, download the FLEX 70 MINI SURFACE | WALL WASH Information Sheet

Download the IES files for FLEX 70 MINI SURFACE | WALL WASH
