Overview

Product Description

Flex by name and Flex by design. The Flex 70 Surface Mounted luminiare is one the most versatile high performance surface mounted luminaires available in the ELS range.

Presenting a sleek minimalist style, the Flex 70 Surface Mounted features optics that ensure exceptional glare control a cornerstone of ELS’s design philosophy.

It is available with variable output technology to optimise performance to exact project requirements.

Product Details

Absolute luminous flux 680lm – 1209lm
System watts8W / 10W / 12W / 14W
Luminaire efficacyup to 100lm/W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL90B10 90,000hours
Dimming methodNon dimm / Trailing Edge / DALI / Casambi
Optic PMMA Clear Lens
Beam angle13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear / Zoom
Luminaire housingAluminium Powdercoated
Luminaire housing colourBlack / White / Custom
Luminaire baffle colourBlack / Custom
Custom body finishesCustom powdercoat colour
Country of origin Australia
Warranty 7 years

Custom Luminaire Modifications

RGBW (remote driver)
White tunable (remote driver)
Horticultural version – Bloom / Leaf

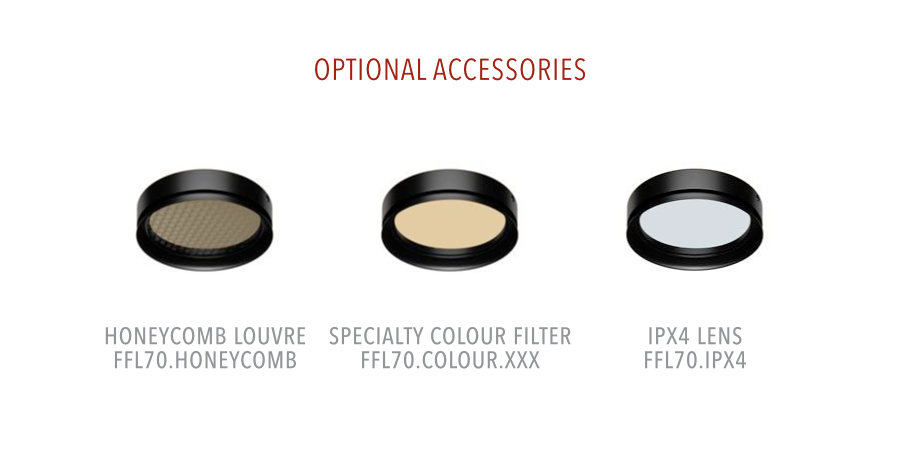

Optional Accessories

HONEYCOMB LOUVRE
FFL70.HONEYCOMB

Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

SPECIALTY COLOUR FILTER
FFL70.COLOUR.XXX

High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

IPX4 LENS
FFL70.IPX4

A clear IPX4 lens. Required to be installed at time of manufacture.

XL BAFFLE
FPL70.XLB

A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

HALO RING
FPL70.HALO

A discreet 7mm glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

Product Variants
HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

TUNABLE WHITE

Select from the available options to configure luminaire

RGBW

Select from the available options to configure luminaire

For more details, download the FLEX 70 SURFACE | LENS Information Sheet

Download the IES files for FLEX 70 SURFACE | LENS
