Overview

Product Description

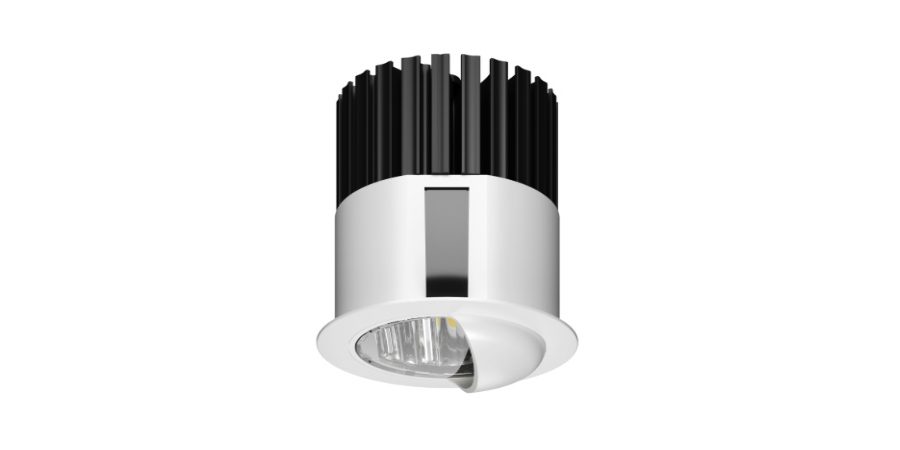

The Flex Adjustable 70 luminaire with wall washer optic presents a perfect solution for wall washing, offering an enviable spacing to offset ratio in a small luminaire footprint. The adjustable nature of the luminaire allows for fine tuning should site conditions not offer ideal conditions for either offset or spacing.

Product Details

Absolute luminous flux 691lm – 1526m
System watts8W / 10W / 12W / 14W /16W / 18W / 20W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL90B10 90,000hours
Dimming methodNon dimm / DALI / Casambi
Optic PMMA Clear Lens
Beam angleWall washer
Luminaire housingAluminium
Luminaire housing colourBlack / White / Silver / Custom
Luminaire baffle colourBlack / Custom
Custom body finishesCustom powdercoat colour
Country of origin Australia
Warranty 7 years

Best Practice Spacing & Placement Guide

WALL WASH Vertical Illumination
Vertical Illumination

For uniform vertical illumination, wall washers should have a setback (D) from the wall of 0.3 time the height of your room (h)

Offset distance: D=0.3 x H

WALL WASH Horizontal Illumination
Horizontal Illumination

For uniform horizontal illumination, wall washers should use an on-centre fixture spacing (d1) ratio or two times the offset from the wall (D)

Luminaire spacing distance: d1=2 x D

D = Offset distance
H = height of room/wall height
d1 = Luminaire spacing

Quick Luminaire Spacing Guide

The below table provides a quick reference guide to which Flex wall washer luminaire to use along with offset and spacing recommendations at various heights. Listed is the optimum spacing when there are no on-site constraints and luminaire can be mounted as per optimum design requirements. These spacing guide achieves under the recommended uniformity of 3:1 av/min. at approx. 100lx av. on the wall.

Mounting HeightLuminaire OffsetLuminaire SpacingSpacing to Offset RatioUniformityAv. Luxluminaire version
2.4m0.7m1.5m2:1 <3134200mA / 8W
2.7m0.8m1.6m2:1 <3112 200mA / 8W
3.0m0.9m1.8m2:1 <3112250mA / 10W
3.3m1.0m2m2:1 <3106300mA / 12W
3.6m1.1m2.2m2:1 <3106350mA / 14W

Product Variants

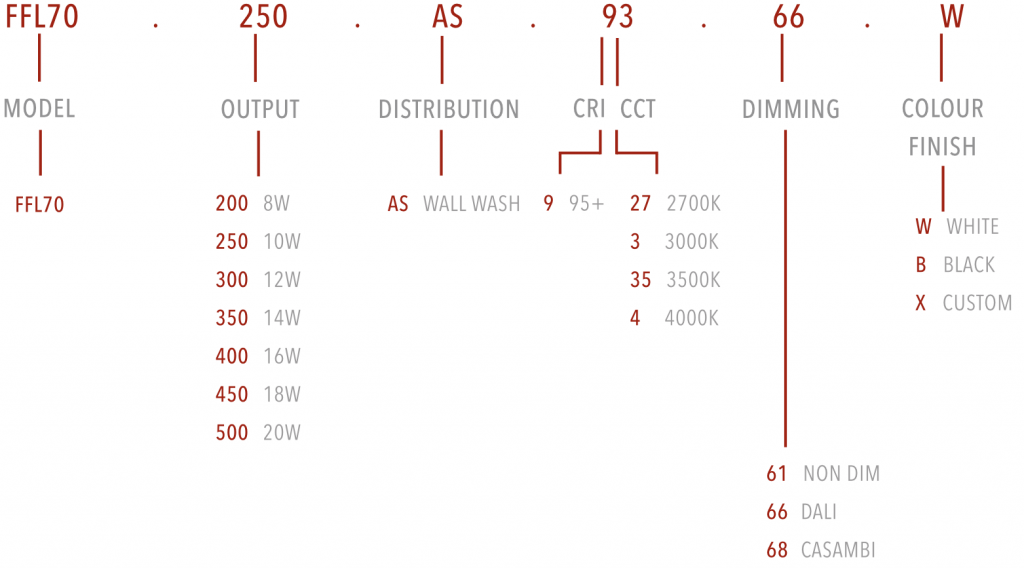

HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

For more details, download the FLEX FIXED 70 | WALL WASH Information Sheet

Download the IES files for FLEX FIXED 70 | WALL WASH
