Overview
Product Description

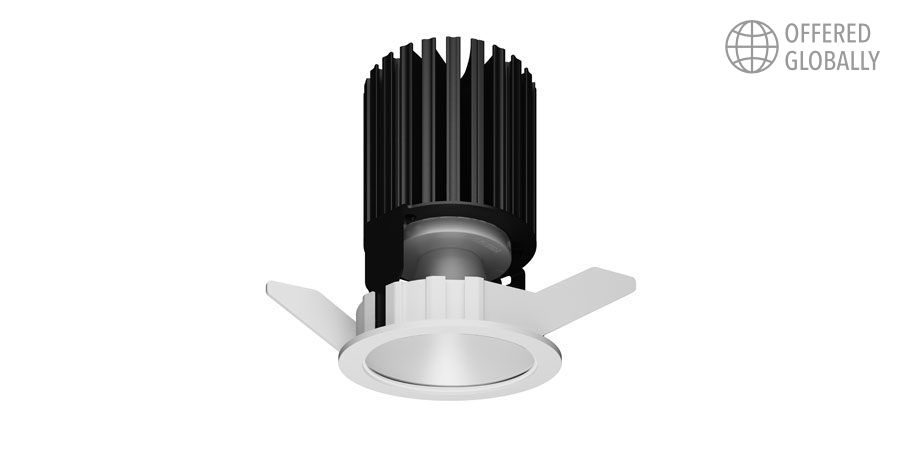

Engineered and built to perform the Luxient 90 recessed downlight offers versatility and endurance in any environment.
The specifically designed reflector system enables the Luxient 90 recessed downlight to deliver exceptional efficacy while still providing superior glare control. Various optics and finishes offer a truly custom approach to achieving the right lighting solution each and every time.
Product Details
| Absolute luminous flux | 930lm – 1403lm |
| System watts | 10W / 14W |
| Luminaire efficacy | up to 107lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 3000K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
| Optic | Metalised reflector |
| Beam angle | 24° / 35° / 50° / 80° |
| Trim | Polycarbonate 2.5mm |
| Trim colour | Black / White |
| Country of origin | Australia |
Custom Luminaire Modifications
- 2700K and 3500K colour temperature
- White tuneable 2700K – 6500K
- IPX4 lens
Codes & Downloads
| Non Dimmable | Trailing Edge Dimmable | DALI Dimmable | Casambi Dimmable | Beam | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| LX90.250.24.93.61 | LX90.250.24.93.63 | LX90.250.24.93.66 | LX90.250.24.93.68 | 24° | 3000K | 905 | 10 |
| LX90.250.24.94.61 | LX90.250.24.94.63 | LX90.250.24.94.66 | LX90.250.24.94.68 | 24° | 4000K | 982 | 10 |
| LX90.250.35.93.61 | LX90.250.35.93.63 | LX90.250.35.93.66 | LX90.250.35.93.68 | 35° | 3000K | 903 | 10 |
| LX90.250.35.94.61 | LX90.250.35.94.63 | LX90.250.35.94.66 | LX90.250.35.94.68 | 35° | 4000K | 994 | 10 |
| LX90.250.50.93.61 | LX90.250.50.93.63 | LX90.250.50.93.66 | LX90.250.50.93.68 | 50° | 3000K | 1049 | 10 |
| LX90.250.50.94.61 | LX90.250.50.94.63 | LX90.250.50.94.66 | LX90.250.50.94.68 | 50° | 4000K | 1071 | 10 |
| LX90.250.80.93.61 | LX90.250.80.93.63 | LX90.250.80.93.66 | LX90.250.80.93.68 | 80° | 3000K | 930 | 10 |
| LX90.250.80.94.61 | LX90.250.80.94.63 | LX90.250.80.94.66 | LX90.250.80.94.68 | 80° | 4000K | 984 | 10 |
| Non Dimmable | Trailing Edge Dimmable | DALI Dimmable | Casambi Dimmable | Beam | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| LX90.350.24.93.61 | LX90.350.24.93.63 | LX90.350.24.93.66 | LX90.350.24.93.68 | 24° | 3000K | 1260 | 14 |
| LX90.350.24.94.61 | LX90.350.24.94.63 | LX90.350.24.94.66 | LX90.350.24.94.68 | 24° | 4000K | 1340 | 14 |
| LX90.350.35.93.61 | LX90.350.35.93.63 | LX90.350.35.93.66 | LX90.350.35.93.68 | 35° | 3000K | 1299 | 14 |
| LX90.350.35.94.61 | LX90.350.35.94.63 | LX90.350.35.94.66 | LX90.350.35.94.68 | 35° | 4000K | 1403 | 14 |
| LX90.350.50.93.61 | LX90.350.50.93.63 | LX90.350.50.93.66 | LX90.350.50.93.68 | 50° | 3000K | 1330 | 14 |
| LX90.350.50.94.61 | LX90.350.50.94.63 | LX90.350.50.94.66 | LX90.350.50.94.68 | 50° | 4000K | 1383 | 14 |
| LX90.350.80.93.61 | LX90.350.80.93.63 | LX90.350.80.93.66 | LX90.350.80.93.68 | 80° | 3000K | 1263 | 14 |
| LX90.350.80.94.61 | LX90.350.80.94.63 | LX90.350.80.94.66 | LX90.350.80.94.68 | 80° | 4000K | 1333 | 14 |
For more details, download the LUXIENT 90 DOWNLIGHT Information Sheet
