Overview

Product Description

Designed and made in Australia the UD 30 Advanced is a completely customisable and versatile linear lighting solution. Quality of light is key to the design of the luminaires with the option to specify a specifically engineered ‘Full Spectrum’ version designed to minimise potential negative effects of artificial lighting to people, pets and plants.

This amazing luminaire also features the option of a specifically engineered U diffuser to optimise vertical illuminance.

Product Details

Absolute luminous flux p/m496lm – 1492lm
System watts p/m13W / 25W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperatureStatic White – 3000K / 4000K, Full Spectrum – 4000K
Cyanosis approvalAvailable with CRI 4000K
Dimming methodNon dimm / DALI / Casambi
DriverRemote
MaterialExtruded aluminium body, polycarbonate diffuser
IlluminationDirect or direct / indirect

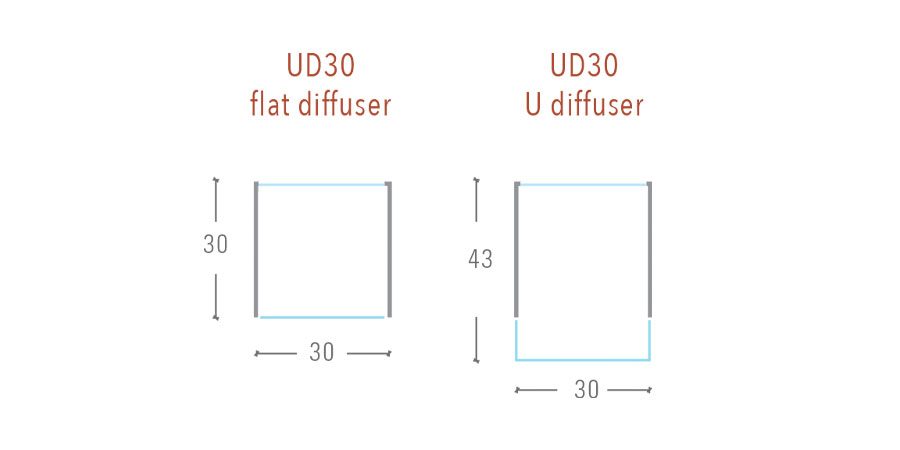

OpticOpal flat diffuser / opal U diffuser
MountingSuspended
AccessoriesEnd caps / joiners / mitered corners / coverplate
Housing colourBlack / White / Custom
LengthCustom lengths made to order
Warranty10 years
Colour consistency warranty10 years
Country of originAustralia

Custom Luminaire Modifications

  • 2700K & 3500K
  • Screwless endcaps

How to Order

Codes & Downloads

STATIC WHITE – FLAT DIFFUSER

Direct Illumination Flat DiffuserDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
5931395+25mm
11412595+25mm

STATIC WHITE – U DIFFUSER

Direct Illumination U DiffuserDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
6651395+25mm
12782595+25mm

STATIC WHITE – UPWARD ILLUMINATION

Indirect IlluminationDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
214495+25mm

FULL SPECTRUM – FLAT DIFFUSER

Direct Illumination Flat DiffuserDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
5061395+50mm
8792595+50mm

FULL SPECTRUM – U DIFFUSER

Direct Illumination Flat DiffuserDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
5671395+50mm
9852595+50mm

FULL SPECTRUM – UPWARD ILLUMINATION

Direct Illumination Flat DiffuserDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
5061395+50mm

For more details, download the SL40 ADVANCED Information Sheet

IES file coming soon
