Product Description

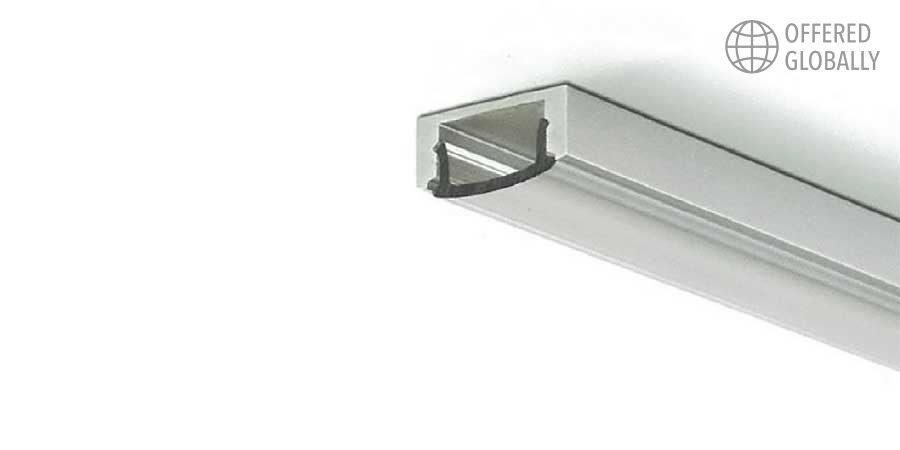

Designed and made in Australia the Nano7 is a completely customisable and versatile miniature linear lighting solution. The magic of this luminaire is that it presents beautifully and performs brilliantly without imposing on the overall design aesthetic.

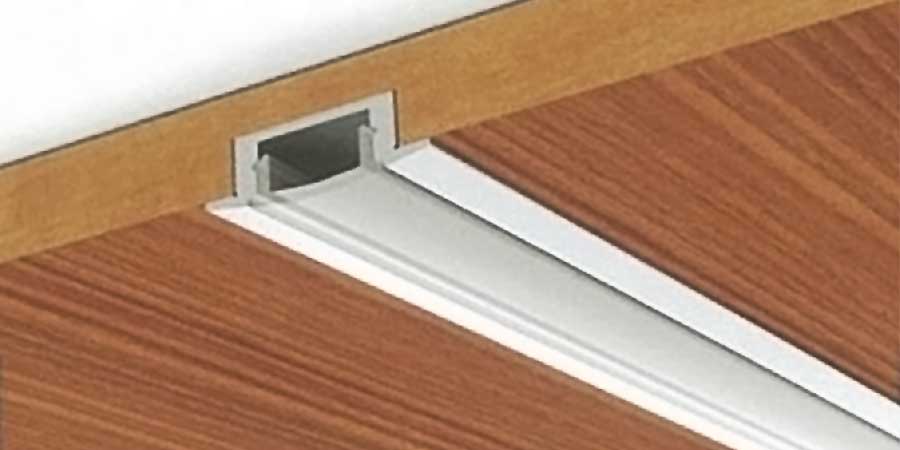

Available as recessed or surface mounted this miniature profile fits perfectly into tight spaces such as under benches and cabinetry or to highlight coves.

Product Details

Absolute luminous flux337lm – 432lm
System watts p/m6W / 8W
Colour deviation3 SDCM
Colour rendition Index>80 / >90
Correlated colour temperature3000K / 4000K
Lumen maintenanceL80B10 72,000hours
Dimming methodNon dimm / DALI / Casambi
DriverRemote
MaterialExtruded aluminium body, polycarbonate diffuser
IlluminationDirect
OpticOpal diffuser

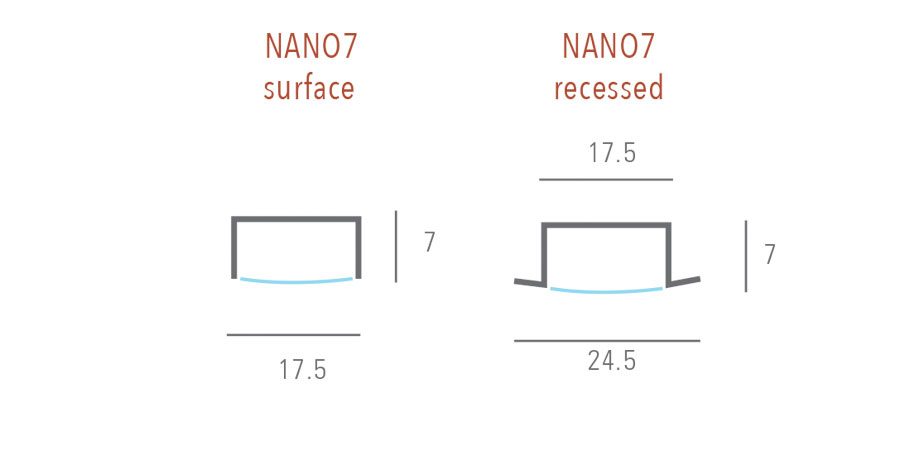

MountingSurface mounted / Recessed
AccessoriesEnd caps / Mounting brackets
Housing colourBlack / White / Custom
LengthCustom lengths made to order
Warranty7 years
Country of originAustralia

Custom Luminaire Modifications

  • 2700K
  • RGBW

How to Order

Codes & Downloads

Direct Illumination Flat DiffuserDelivered Lumens per 1000mmSystem Watts per meterCRILED’s divisible by
377680+100mm
432890+50mm

For more details, download the NANO7 Information Sheet
