Overview
Product Description

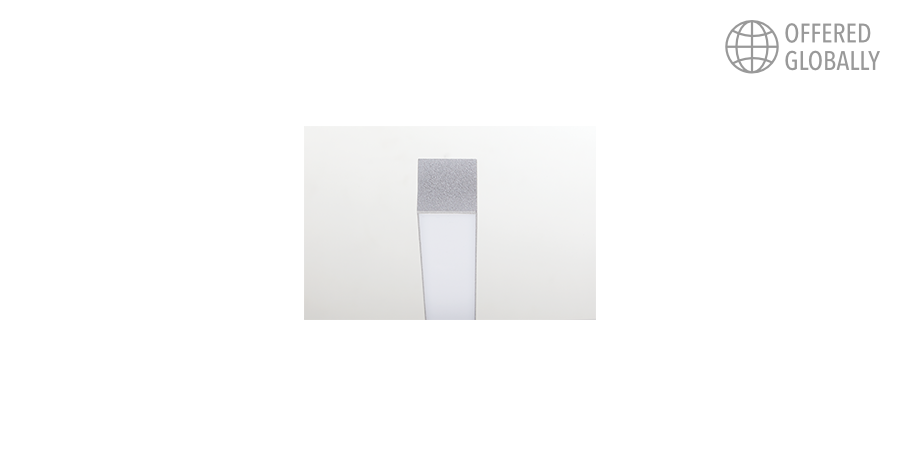

Designed and made in Australia the UD30 is a completely customisable and versatile linear lighting solution. The magic of this luminaire is that it presents beautifully and performs brilliantly without imposing on the overall design aesthetic.

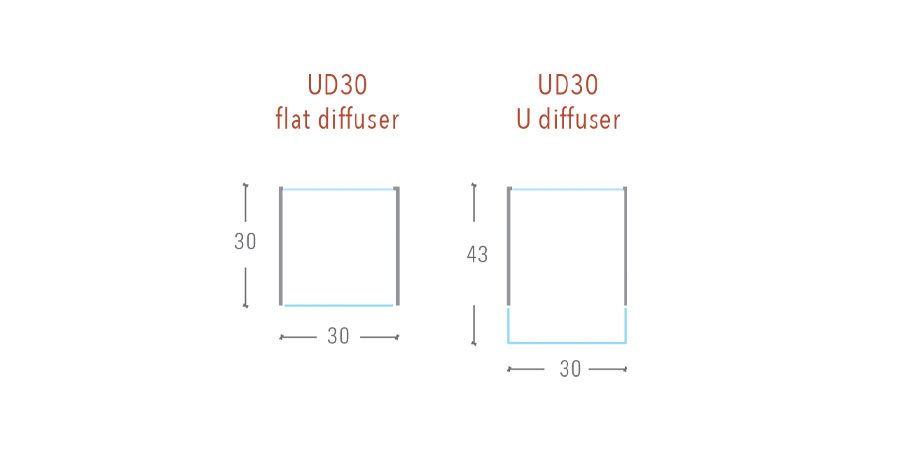

This amazing luminaire also features the option of a specifically engineered U diffuser to optimise vertical illuminance. Available with Variable Output Technology the UD30 ensures complete lighting control and performance for the user.
Product Details
Absolute luminous flux p/m 759lm – 1939lm System watts p/m 9W /12W / 17W Colour deviation 3 SDCM Colour rendition Index >80 / >90 Correlated colour temperature 3000K / 4000K Lumen maintenance L80B10 72,000hours Cyanosis approval Available with 90+CRI 4000K Dimming method Non dimm / DALI / Casambi Driver Remote Material Extruded aluminium body, polycarbonate diffuser Illumination Direct or direct / indirect Optic Opal flat diffuser / opal U diffuser Mounting Suspended Accessories End caps / joiners / mitered corners / coverplate Housing colour Black / White / Custom Length Custom lengths made to order Warranty 7 years Country of origin Australia
Custom Luminaire Modifications
2700K + 3500K White tunable 2700K-6500K RGBW Screwless endcaps
How to Order
Codes & Downloads
80+ CRI – FLAT DIFFUSER
Direct Illumination Flat Diffuser Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 859 9 80+ 140mm 1186 12 80+ 140mm 1659 17 80+ 140mm
90+ CRI – FLAT DIFFUSER
Direct Illumination Flat Diffuser Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 756 9 90+ 140mm 1043 12 90+ 140mm 1454 17 90+ 140mm
80+ CRI – U DIFFUSER
Direct Illumination U Diffuser Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 984 9 80+ 140mm 1358 12 80+ 140mm 1900 17 80+ 140mm
90+ CRI – U DIFFUSER
Direct Illumination U Diffuser Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 829 9 90+ 140mm 1144 12 90+ 140mm 1595 17 90+ 140mm
UPWARD ILLUMINATION
Indirect Illumination Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 340 6 80+ 100mm 389 8 90+ 50mm
For more details, download the UD30 Information Sheet
Download the IES files for UD30 SUSPENDED
