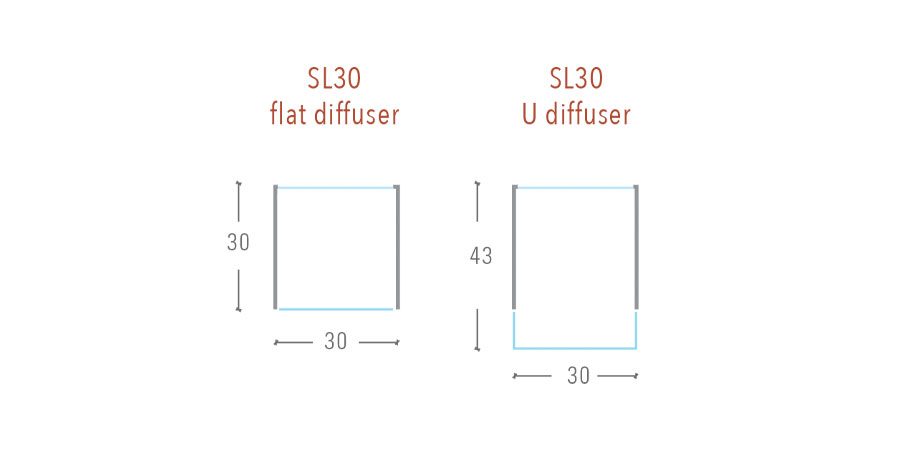

SL30 Flat Opal Diffuser diagram
SL30 U Opal Diffuser diagram

Product Details

  • Australian Made
  • Extruded aluminium body | polycarbonate diffuser
  • Opal flat diffuser | opal U diffuser
  • 5 year warranty
  • 80+ CRI or 90+ CRI versions
  • Surface mounted | Trimless recessed | Suspended
  • Custom lengths made to order divisible as per below
  • 3000K, 4000K or custom 2700K | RGBW
  • Available as IPX4 with flat diffuser (up to 3m length)
  • Optional Casambi and DALI dimmable

How to Order

IPX4 Version – Surface Mounted

To specify the product as IPX4 add .IP to the end of the part code

Colour Finish

  • white WH
  • black BLK
  • custom powdercoat colour

Mounting Styles

Surface mounted

SL30 Surface mounted

Suspended – down only

SL30 Suspended - down only

Trimless recessed*

SL30 Trimless recessed

* in ceiling support to be installed and supplied by installer

Codes & Downloads


Direct Illumination Delivered Lumens per meter System watts per meter CRI LED’s divisable by
  690 10.5 80+ 100mm
  1020 15.8 80+ 100mm
  682 14.5 90+ 50mm
  1135 25 90+ 50mm
  1570 35 90+ 50mm

For more details, download the SL30 Information Sheet

Download the IES file for SL30
