Overview

SYSTEMKANAL 50

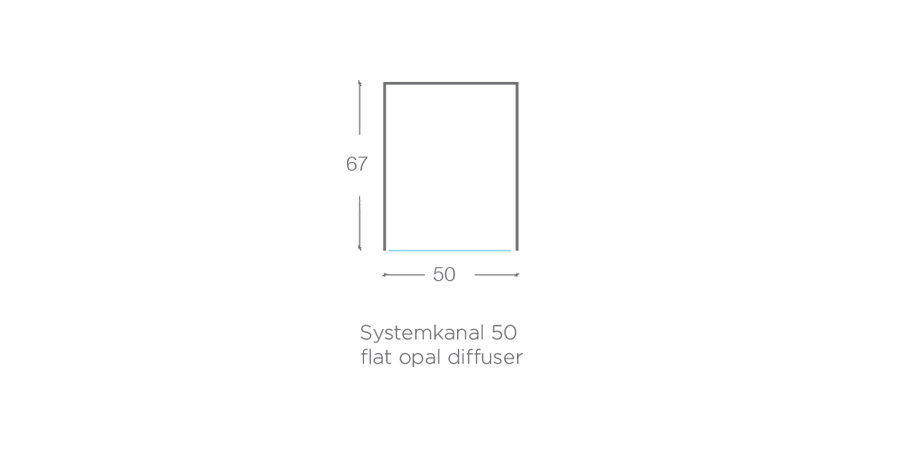

SYSTEMKANAL 50 Flat Opal Diffuser diagram
SYSTEMKANAL 50 Flat Opal Diffuser diagram

Product Details

  • Australian Made
  • Extruded aluminium body | polycarbonate diffuser
  • Opal flat diffuser | opal U diffuser
  • 5 year warranty
  • 80+ CRI or 90+ CRI versions
  • Surface mounted | Trimless Recessed | Suspended
  • Custom lengths made to order divisible as per below
  • 3000K, 4000K or custom 2700K and RGBW
  • Available as IP54 with flat diffuser (up to 3m length)
  • Optional Casambi and DALI dimmable

How to Order

IP54 Version – Surface Mounted

To specify the product as IP54 add .IP to the end of the part code

Colour Finish

  • white WH
  • black BLK
  • custom powdercoat colour

Mounting Styles

Surface mounted

SL30 Surface mounted

Suspended – down only

SL30 Suspended - down only

Trimless recessed*

SL30 Trimless recessed

* in ceiling support to be installed and supplied by installer

Codes & Downloads

SYSTEM 50

Direct Illumination Delivered Lumens per meter System watts per meter CRI LED’s divisable by
  1134 16 80+ 100mm
  1864 34 90+ 50mm
  2560 24 HO 80+ 140mm
  3150 31 HO 80+ 140mm

For more details, download the SYSTEM 50 Information Sheet

Download the IES file for the SYSTEM 50
