Overview

Product Description

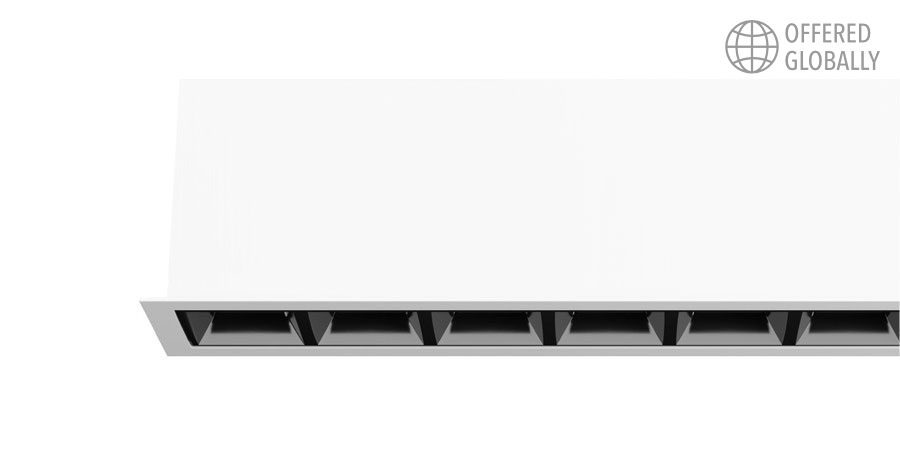

Designed and made in Australia the SK60 recessed is a completely customisable and versatile linear lighting solution. The magic of this luminaire is that it presents beautifully and performs brilliantly without imposing on the overall design aesthetic.

This amazing luminaire also features a dual optical system that enables both exceptional glare control and beam intensity. Available with Variable Output Technology the SK60 recessed ensures complete lighting control and performance for the user.

Product Details

Absolute luminous flux p/m2010lm – 3491lm
System watts p/m18W / 23W / 28W
Colour deviation3 SDCM
Colour rendition Index>80 / >90
Correlated colour temperature3000K / 4000K
Lumen maintenanceL80B10 75,000hours
Dimming methodNon dimm / DALI / Casambi
DriverIntegral
IlluminationDirect
OpticPMMA Clear Lens & PC Louvre

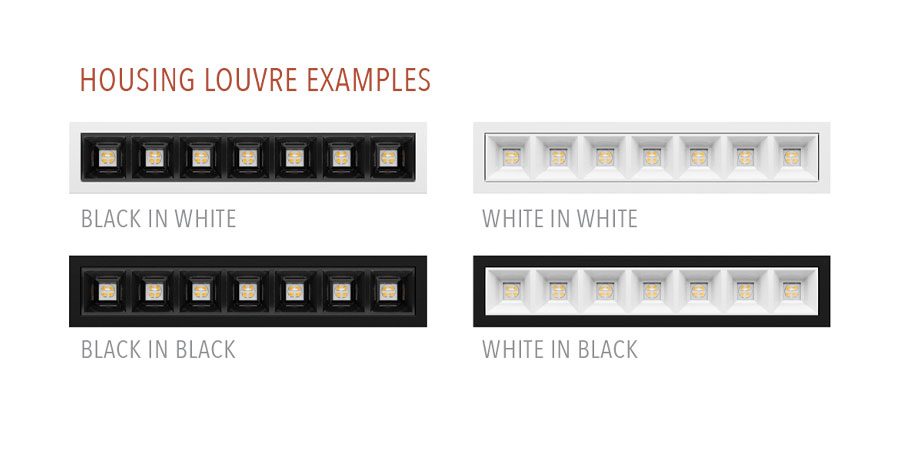

Louvre FinishBlack / White
MountingRecessed
AccessoriesEnd caps / joiners / coverplate
Housing colourBlack / White / Custom
LengthCustom lengths made to order divisible by 280mm
Country of originAustralia

Custom Luminaire Modifications

  • White tunable 2700K-6500K
  • Integrated track spots

How to Order

Codes & Downloads

80+ CRI

Direct Illumination Delivered Lumens per 1120mmSystem Watts per 1120mmBeam AngleLED’s divisible by
23601865°280mm
29422365°280mm
34912865°280mm
23161880°280mm
28872380°280mm
34262880°280mm

90+ CRI

Direct Illumination Delivered Lumens per 1120mmSystem Watts per 1120mmBeam AngleLED’s divisible by
20481865°280mm
25532365°280mm
30292865°280mm
20101880°280mm
25052380°280mm
29732880°280mm

For more details, download the SYSTEM 60 Information Sheet

Download the IES files for SYSTEM 60
