Overview
Product Description

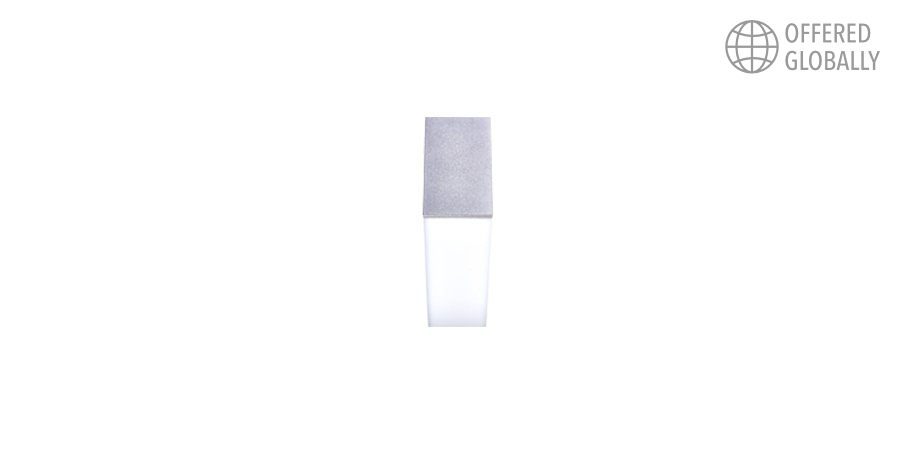

Designed and made in Australia the UD 50 is a completely customisable and versatile linear lighting solution. The magic of this luminaire is that it presents beautifully and performs brilliantly without imposing on the overall design aesthetic.
This amazing luminaire also features the option of a specifically engineered U diffuser to optimise vertical illuminance. Available with Variable Output Technology the UD 50 ensures complete lighting control and performance for the user.
Product Details
Absolute luminous flux p/m 827lm – 3510lm System watts p/m 9W /12W / 17W / 21W / 26W / 30W Colour deviation 3 SDCM Colour rendition Index >80 / >90 Correlated colour temperature 3000K / 4000K Lumen maintenance L80B10 72,000hours Cyanosis approval Available with 90+CRI 4000K Dimming method Non dimm / DALI / Casambi Driver Integral Material Extruded aluminium body, polycarbonate diffuser Illumination Direct or direct / indirect Optic Opal flat diffuser / opal U diffuser Mounting Surface mounted / Trimless recessed / Suspended Accessories End caps / joiners / suspension / mitered corners / coverplate Housing colour Black / White / Custom Length Custom lengths made to order divisible by 140mm Warranty 7 years Country of origin Australia
Custom Luminaire Modifications
2700K & 3500K
White tunable 2700K-6500K
RGBW
Screwless endcaps
Integrated track spots
Integrated pendant luminaires
How to Order
Codes & Downloads
80+ CRI – FLAT DIFFUSER
Direct Illumination Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 942 9 80+ 140mm 1300 12 80+ 140mm 1819 17 80+ 140mm 2164 21 80+ 140mm 2687 26 80+ 140mm 2975 30 80+ 140mm
90+ CRI – FLAT DIFFUSER
Direct Illumination Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 827 9 90+ 140mm 1141 12 90+ 140mm 1591 17 90+ 140mm 1896 21 90+ 140mm 2355 26 90+ 140mm 2605 30 90+ 140mm
80+ CRI – U DIFFUSER
Direct Illumination Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 1112 9 80+ 140mm 1534 12 80+ 140mm 2146 17 80+ 140mm 2553 21 80+ 140mm 3170 26 80+ 140mm 3510 30 80+ 140mm
90+ CRI – FLAT DIFFUSER
Direct Illumination Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 937 9 90+ 140mm 1292 12 90+ 140mm 1801 17 90+ 140mm 2146 21 90+ 140mm 2666 26 90+ 140mm 2949 30 90+ 140mm
INDIRECT ILLUMINATION
Indirect Illumination Delivered Lumens per 980mm System Watts per meter CRI LED’s divisible by 340 6 80+ 100mm 389 8 90+ 50mm
For more details, download the UD50 Information Sheet
Download the IES files for UD50
