Overview
Product Description

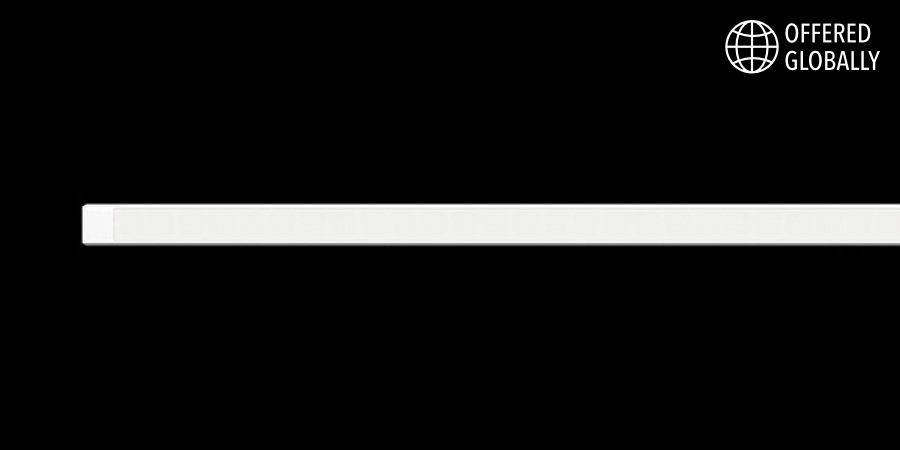

Versatile and flexible would be the best words to describe the genius of the Versaline 27 U Diffuser luminaire. Presented in a long, sleek housing the Versaline 27 features a patented clip system for easy installation without tools. Which means it can also be relocated just as easily after installation.
Versaline is versatile too in lighting control. It is available as either non dim, DALI or Casambi versions. This Versaline 27 luminaire version features unique U diffuser to increase vertical illuminance.
Product Details
| Absolute luminous flux | 1308lm – 3680lm |
| System watts | 14W / 24W / 27W / 37W |
| Luminaire efficacy | up to 99lm/W |
| Colour deviation | 3 SDCM |
| Colour rendition Index | >85 |
| Correlated colour temperature | 3000K / 4000K / 2700K – 6500K |
| Lumen maintenance | L80B10 60,000hours |
| Dimming method | DALI / Casambi |
| Optic | Opal U diffuser |
| Beam angle | 130° |
| Luminaire housing | Aluminium |
| Luminaire housing colour | Black / White / Silver / Custom |
| Country of origin | Australia |
Codes & Downloads

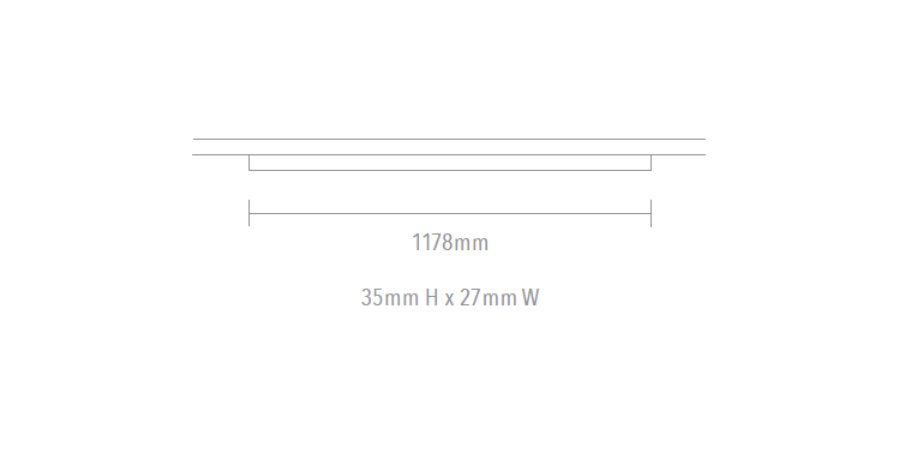

U DIFFUSER 1178MM
| Non Dimmable | DALI Dimmable | Casambi Dimmable | CCT | Lumens | Watts |
|---|---|---|---|---|---|
| VL27.30.U.3.1178.61 | VL27.30.U.3.1178.66 | VL27.30.U.3.1178.68 | 3000K | 2694 | 27 |
| VL27.30.U.4.1178.61 | VL27.30.U.4.1178.66 | VL27.30.U.4.1178.68 | 4000K | 2834 | 37 |
| VL27.40.U.3.1178.61 | VL27.40.U.3.1178.66 | VL27.40.U.3.1178.68 | 3000K | 3502 | 27 |
| VL27.40.U.4.1178.61 | VL27.40.U.4.1178.66 | VL27.40.U.4.1178.68 | 4000K | 3680 | 37 |
U DIFFUSER TUNEABLE WHITE 1178MM
| DALI Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|
| VL27.30.U.T.1178.66 | 130° | 2700K – 6500K | 1308 – 1416 | 14 |
| VL27.50.U.T.1178.66 | 130° | 2700K – 6500K | 2062 – 2230 | 24 |
For more details, download the VERSALINE 27 U DIFFUSER | 1200 Information Sheet
