Overview
Product Description

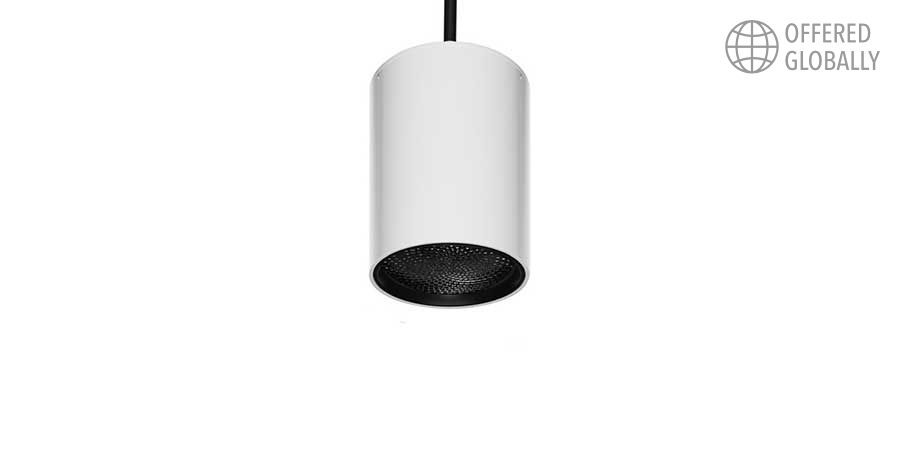

Flex by name and Flex by design. The Flex 70 Mini Pendant luminiare is the most versatile high performance miniature pendant luminaire available in the ELS range.
Presenting in a miniature size, the Flex 70 Mini Pendant features optics that ensure exceptional glare control a cornerstone of ELS’s design philosophy.
It is available with variable output technology to optimise performance to exact project requirements.
Product Details
| Absolute luminous flux | 743lm – 1209lm |
| System watts | 8W / 10W / 12W / 14W |
| Luminaire efficacy | up to 93lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
| Optic | PMMA Clear Lens |
| Beam angle | 13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear / Zoom |
| Driver | Integral for non dim & DALI / Remote for Casambi |
| Luminaire housing | Aluminium Powdercoated |
| Luminaire housing colour | Black / White / Custom |
| Luminaire baffle colour | Black / Custom |
| Custom body finishes | Custom powdercoat colour |
| Suspension | Clear flex 1m |
| Country of origin | Australia |
Optional Accessories
FFL70.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.
FFL70.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.
FPL70.XLB
A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle
FPL70.HALO
A discreet 7mm glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
ROD.KIT.500.B
ROD.KIT.500.W
An optional rod suspension kit to suit the Flex pendant range.Comes complete with 500mm rod and ceiling rose
ROD.KIT.1000.B
ROD.KIT.1000.W
An optional rod suspension kit to suit the Flex pendant range.Comes complete with 1000mm rod and ceiling rose
ROD.KIT.1500.B
ROD.KIT.1500.W
An optional rod suspension kit to suit the Flex pendant range.Comes complete with 1500mm rod and ceiling rose
Optional Cloth Flex
3 CORE OR 5 CORE
3C.BLK
5C.BLK
3C.GO
5C.GO
3C.WH
5C.WH
3 CORE ONLY
3C.YL
3C.OR
3C.RD
3C.EM
3C.LB
Custom Luminaire Modifications
RGBW (remote driver)
White tunable (remote driver)
Product Variants

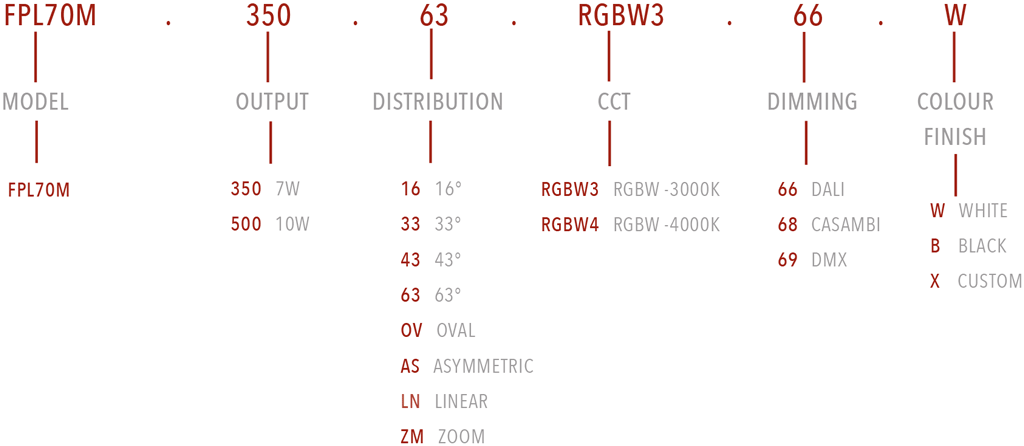

HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
TUNABLE WHITE
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the FLEX 70 MINI PENDANT | LENS Information Sheet
