Overview
Product Description

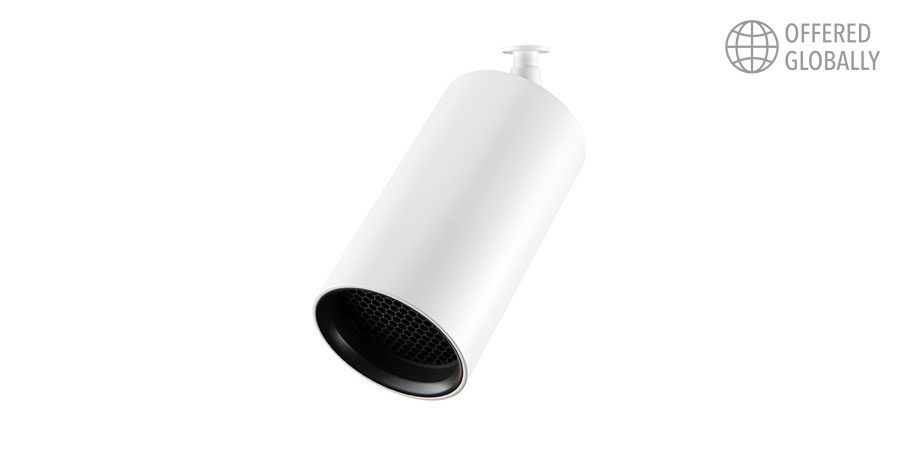

With an echo to classic designs of the past, but with an eye firmly on the future the Flex Trackspot 70 offers perfect versatility and performance in any environment where both spot and track lighting is the preferred solution. Presenting in a sleek, modern cylindrical housing this luminaire is available with Variable Output Technology to optimise performance to exact project requirements and power usage.

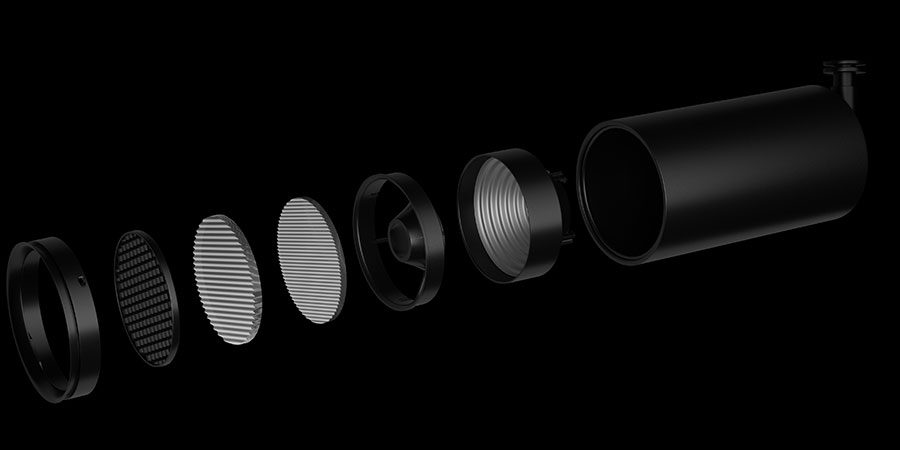

Flexible Optic Technology enables the Flex Trackspot 70 to deliver more accurate optics by offering flexibility to mix and match primary optics with secondary lenses and anti glare accessories to achieve the perfect results.
Product Details
| Absolute luminous flux | 743lm – 1645m |
| System watts | 8W / 10W / 12W / 14W / 16W / 18W |
| Luminaire efficacy | up to 100lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Non dimm / DALI / Casambi |
| Optic | PMMA Clear Lens |
| Beam angle | 13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear / Zoom |
| Luminaire housing | Aluminium Powdercoated |
| Luminaire housing colour | Black / White / Custom |
| Luminaire baffle colour | Black / Custom |
| Custom body finishes | Custom powdercoat colour |
| Country of origin | Australia |
| Warranty | 7 years |
Optional Accessories

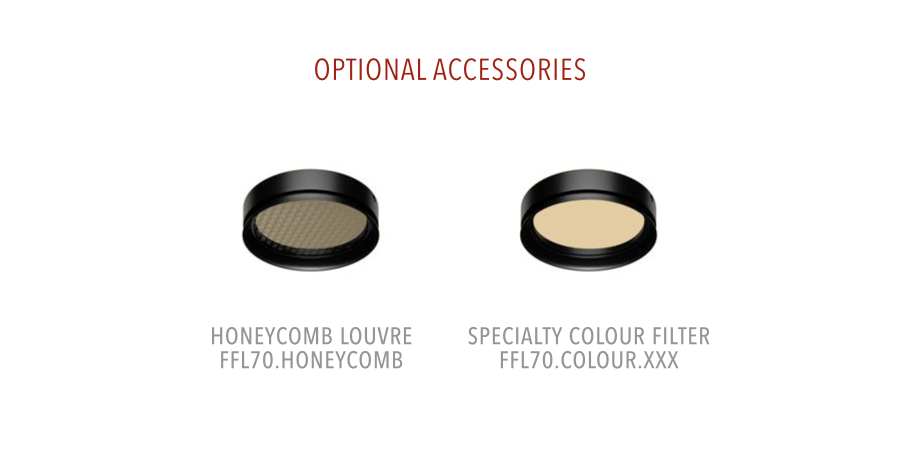

FFL70.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.
FFL70.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

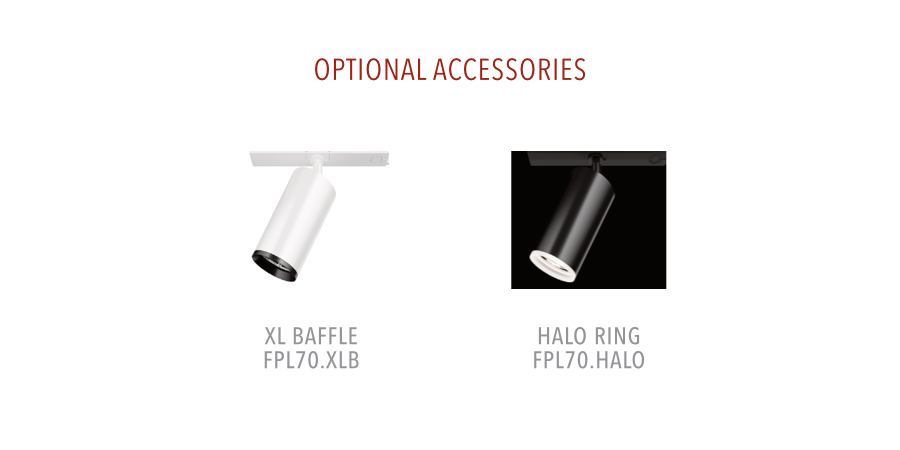

FPL70.XLB
A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
FPL70.HALO
A discreet 7mm glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

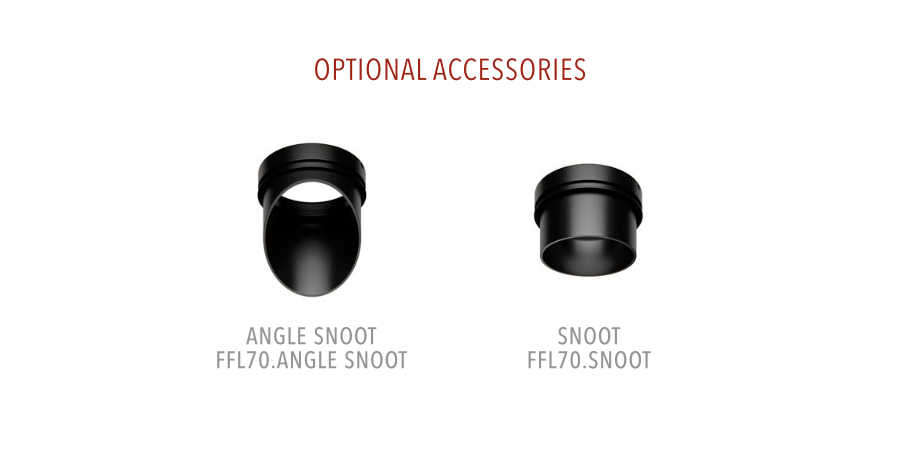

FFL70.ANGLE SNOOT
Used to provide extra glare control or additional defined light control along with reducing beam distributions to a narrower spot.
FFL70.ANGLE SNOOT
Used to provide extra glare control or additional diefined light control along with reducing beam distributions to a narrower spot
Product Variants

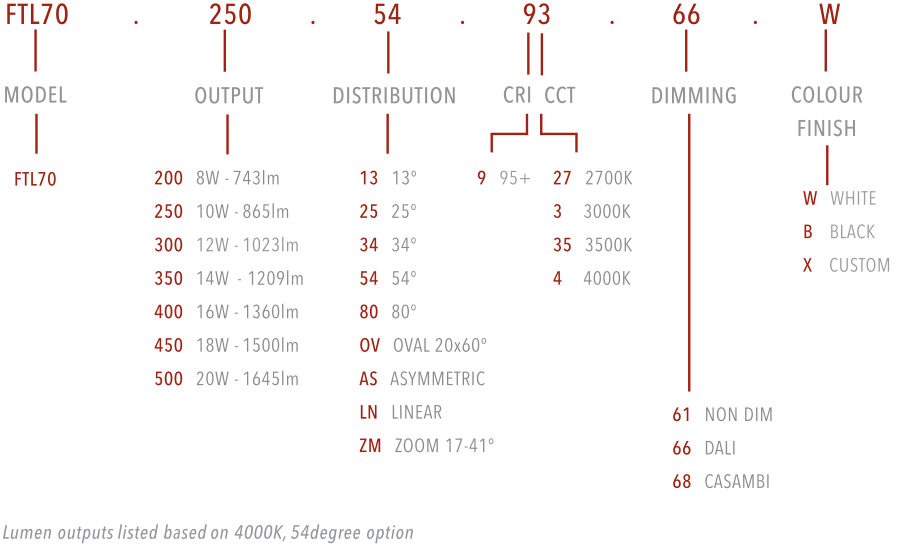

HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
For more details, download the FLEX 70 TRACKSPOT | LENS Information Sheet
