FLEX 70 TRACKSPOT | LENS

Overview

Product Description

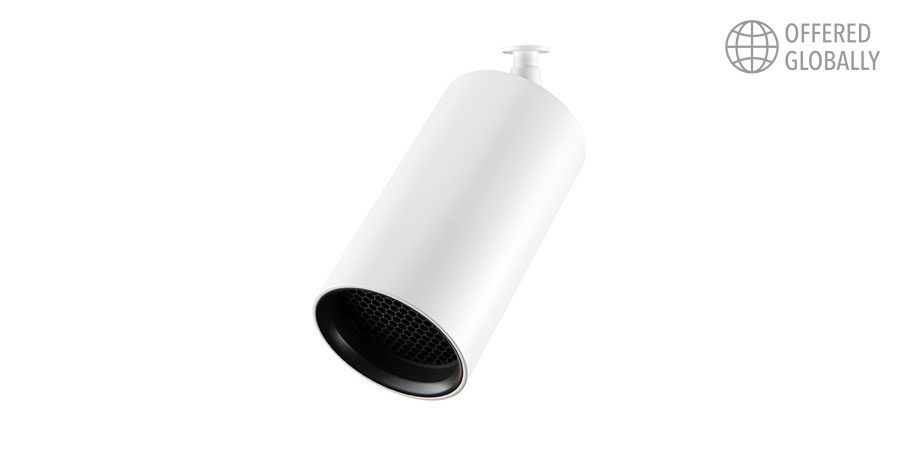

With an echo to classic designs of the past, but with an eye firmly on the future the Flex Trackspot 70 offers perfect versatility and performance in any environment where both spot and track lighting is the preferred solution. Presenting in a sleek, modern cylindrical housing this luminaire is available with Variable Output Technology to optimise performance to exact project requirements and power usage.

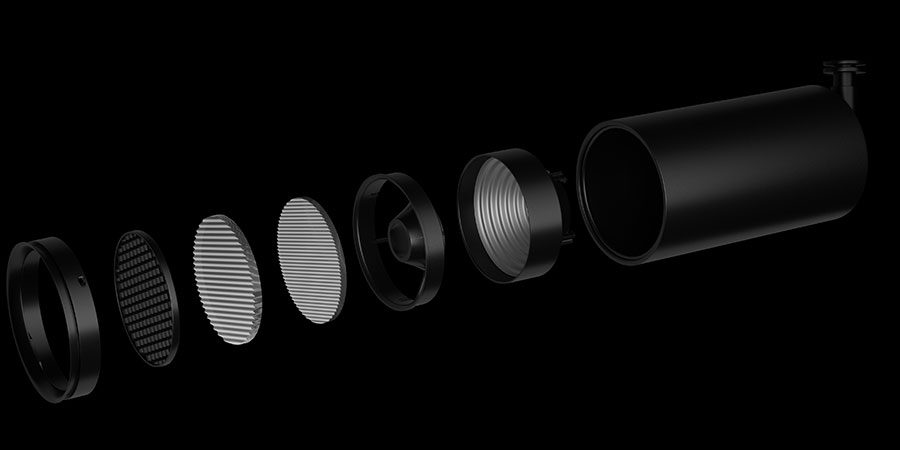

Flexible Optic Technology enables the Flex Trackspot 70 to deliver more accurate optics by offering flexibility to mix and match primary optics with secondary lenses and anti glare accessories to achieve the perfect results.

Product Details

Absolute luminous flux 743lm – 1645m
System watts8W / 10W / 12W / 14W / 16W / 18W
Luminaire efficacyup to 100lm/W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL90B10 90,000hours
Dimming methodNon dimm / DALI / Casambi
Optic PMMA Clear Lens
Beam angle13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear / Zoom
Luminaire housingAluminium Powdercoated
Luminaire housing colourBlack / White / Custom
Luminaire baffle colourBlack / Custom
Custom body finishesCustom powdercoat colour
Country of origin Australia
Warranty 7 years

Optional Accessories

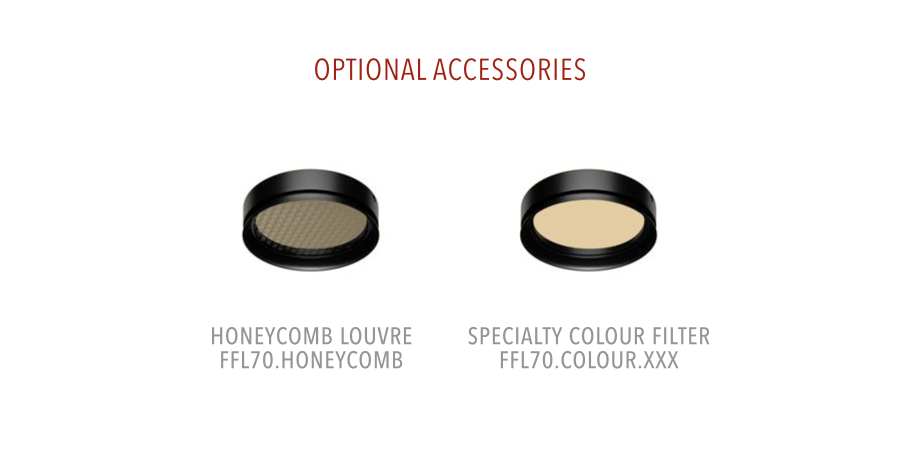

HONEYCOMB LOUVRE
FFL70.HONEYCOMB

Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

SPECIALTY COLOUR FILTER
FFL70.COLOUR.XXX

High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

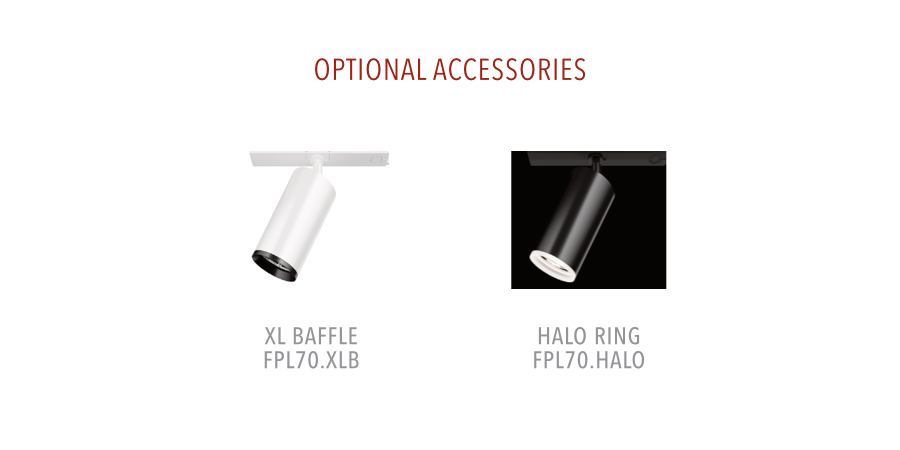

XL BAFFLE
FPL70.XLB

A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

HALO RING
FPL70.HALO

A discreet 7mm glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

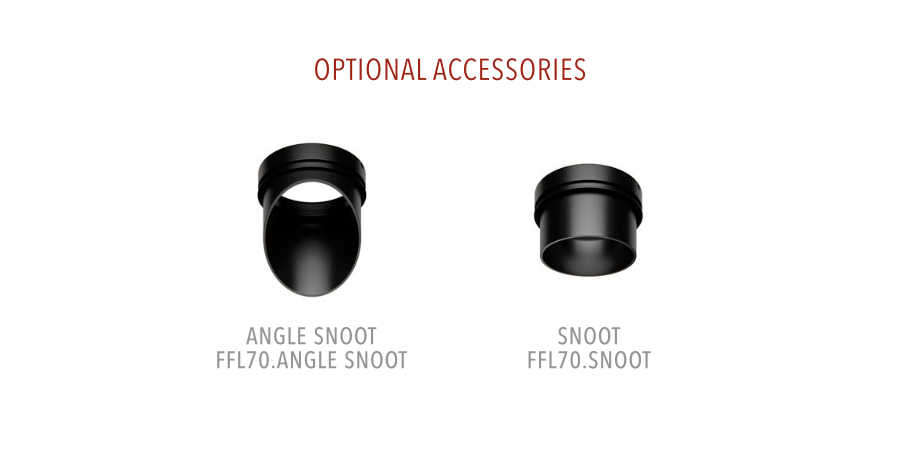

ANGLE SNOOT
FFL70.ANGLE SNOOT

Used to provide extra glare control or additional defined light control along with reducing beam distributions to a narrower spot.

STRAIGHT SNOOT
FFL70.ANGLE SNOOT

Used to provide extra glare control or additional diefined light control along with reducing beam distributions to a narrower spot

Product Variants

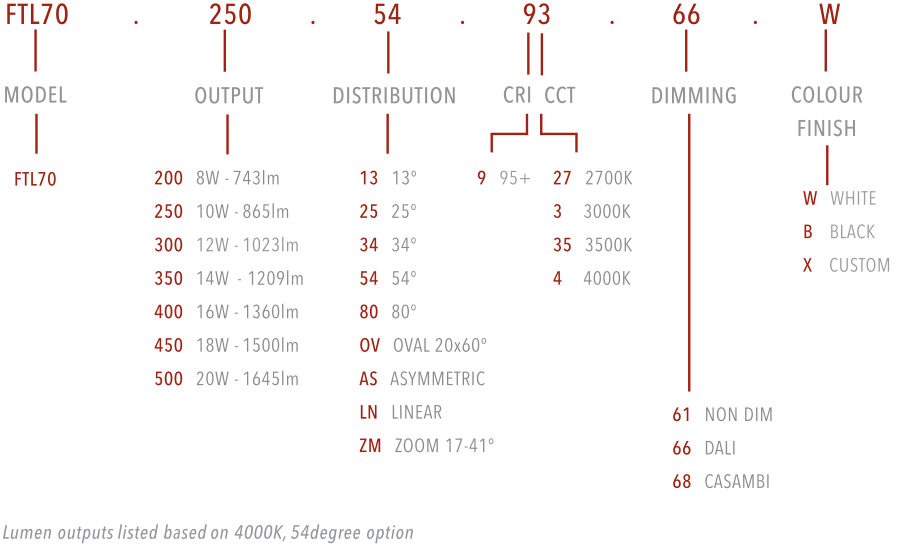

HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

For more details, download the FLEX 70 TRACKSPOT | LENS Information Sheet

Download the IES files for FLEX 70 TRACKSPOT | LENS
