Overview
Product Description

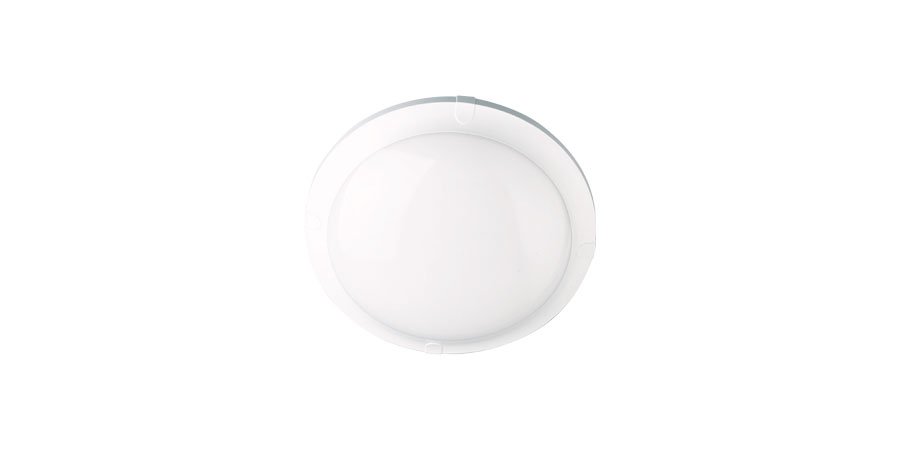

A traditional wall or ceiling mounted bulkhead for exterior applications the Belle offers IP65 protection and vandal resistant in a slim construction.
Manufactured from UV stabalised fire resistant polycabonate the Belle has been designed to stand the test of time and has proven itself in the harsh Australian elements for over 25years.
Product Details
| Absolute luminous flux | 1290lm – 1400lm |
| System watts | 16W |
| Luminaire efficacy | up to 87lm/W |
| Colour deviation | 3 SDCM |
| Colour rendition Index | >80 |
| Correlated colour temperature | 3000K / 4000K |
| Lumen maintenance | L80B10 60,000hours |
| Optic | PMMA Clear Lens |
| Dimming method | Non dimm / DALI |
| Lens | UV stabalised opal polycarbonate |
| Body / Trim | UV stabalised flame retardant polycarbonate |
| Trim colour | Black / White / Silver |
| Country of origin | Australia |
Codes & Downloads
| Non Dimmable | DALI Dimmable | CCT | Lumens | Watts | Trim Colour |
|---|---|---|---|---|---|
| BLW.16.3000.61 | BLW.16.3000.66 | 3000K | 1290 | 16 | White |
| BLW.16.4000.61 | BLW.16.4000.66 | 4000K | 1400 | 16 | White |
| BLS.16.3000.61 | BLS.16.3000.66 | 3000K | 1290 | 16 | White |
| BLS.16.4000.61 | BLS.16.4000.66 | 4000K | 1400 | 16 | White |
| BLB.16.3000.61 | BLB.16.3000.66 | 3000K | 1290 | 16 | White |
| BLB.16.4000.61 | BLB.16.4000.66 | 4000K | 1400 | 16 | White |
