CIRCULITE 400 SURFACE MOUNT

Overview

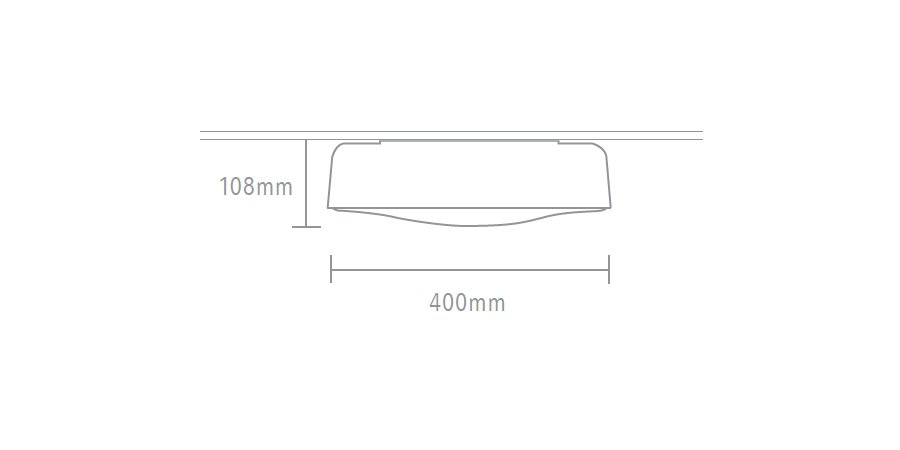

DISPLAY TRACKLIGHT diagram

Product Description

A new addition to the popular Circulite Range, the Circulite 400 Surface Mount is one of the most versatile luminaires designed and made by ELS. Simple, clean lines of the circular presentation make it a beautiful option where lighting performance is as important as the room aesthetic.

The Circulite 400 Surface Mounted is available with Variable Output Technology and is finished in ELS standard powdercoat colours or can be finished as per specification.

Product Details

Absolute luminous flux 1835lm – 3416lm
System watts 20W / 28W / 40W
Luminaire efficacy up to 95lm/W
Colour deviation 3 SDCM
Colour rendition Index >90
Correlated colour temperature 3000K / 4000K
Lumen maintenance L80B10 72,000hours
Dimming method DALI / Casambi
Lens Opal
Luminaire housing Aluminium
Luminaire housing colour Black / White / Silver / Custom
Country of origin Australia

Codes & Downloads

Non Dimmable DALI Dimmable Casambi Dimmable CCT Lumens Watts
CL400.500.93.61 CL400.500.93.66 CL400.500.93.68 3000K 1835 20
CL400.500.94.61 CL400.500.94.66 CL400.500.94.68 4000K 1914 20
CL400.700.93.61 CL400.700.93.66 CL400.700.93.68 3000K 2558 28
CL400.700.94.61 CL400.700.94.66 CL400.700.94.68 4000K 2670 28
CL400.900.93.61 CL400.900.93.66 CL400.900.93.68 3000K 3274 40
CL400.900.94.61 CL400.900.94.66 CL400.900.94.68 4000K 3416 40

For more details, download the CIRCULITE 400 SURFACE MOUNT Information Sheet
