Overview

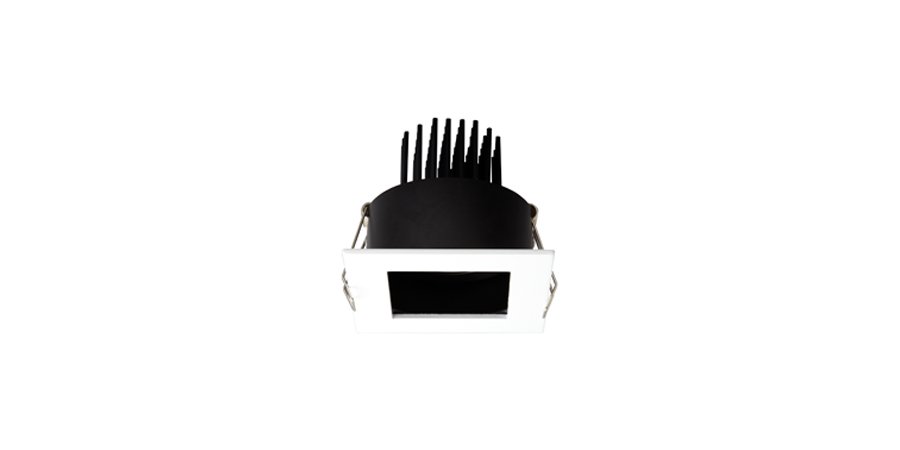

9000 XIM DOWNLIGHT
9000 XIM DOWNLIGHT diagram

Lighting Effects

9000 XIM DOWNLIGHT lighting effects 9000 XIM DOWNLIGHT lighting effects

Product Details

  • Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K or 4000K
  • Black internal with 25° shielding angle
  • White painted trim
  • Tilt adjustable to 20°
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift
  • L70B0 at 55,000 hours

Codes & Downloads

XTM 240V – 83+ CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable CCT Lumens Watts
9000.XTM5.8030.61 9000.XTM5.8030.63 9000.XTM5.8030.66 3000K 712 8
9000.XTM5.8040.61 9000.XTM5.8040.63 9000.XTM5.8040.66 4000K 712 8
9000.XTM7.8030.61 9000.XTM7.8030.63 9000.XTM7.8030.66 3000K 955 12.5
9000.XTM7.8040.61 9000.XTM7.8040.63 9000.XTM7.8040.66 4000K 955 12.5

XTM 240V – 98 CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable CCT Lumens Watts
9000.XTM5.9530.61 9000.XTM5.9530.63 9000.XTM5.9530.66 3000K 709 11.5
9000.XTM5.9540.61 9000.XTM5.9540.63 9000.XTM5.9540.66 4000K 709 11.5
9000.XTM7.9530.61 9000.XTM7.9530.63 9000.XTM7.9530.66 3000K 955 16.5
9000.XTM7.9540.61 9000.XTM7.9540.63 9000.XTM7.9530.66 4000K 955 16.5

For more details, download the 9000 DOWNLIGHT Information Sheet

Download the IES file for 9000 DOWNLIGHT
