Overview

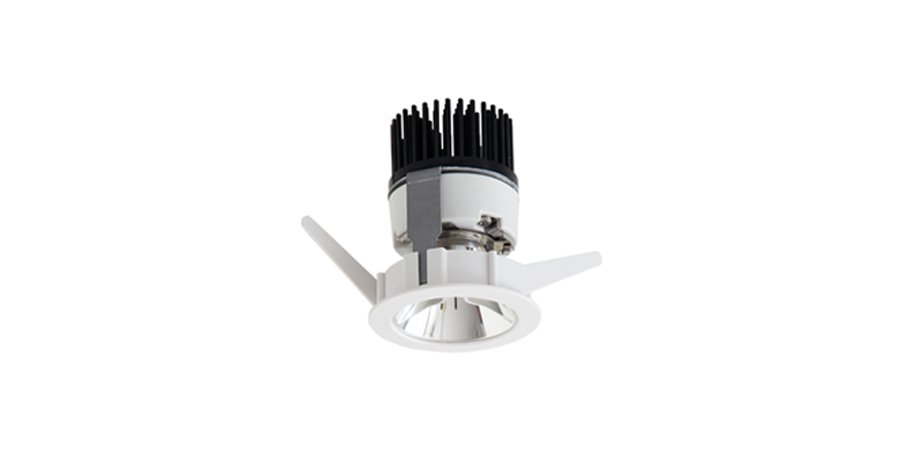

ADL66 XIM DOWNLIGHT

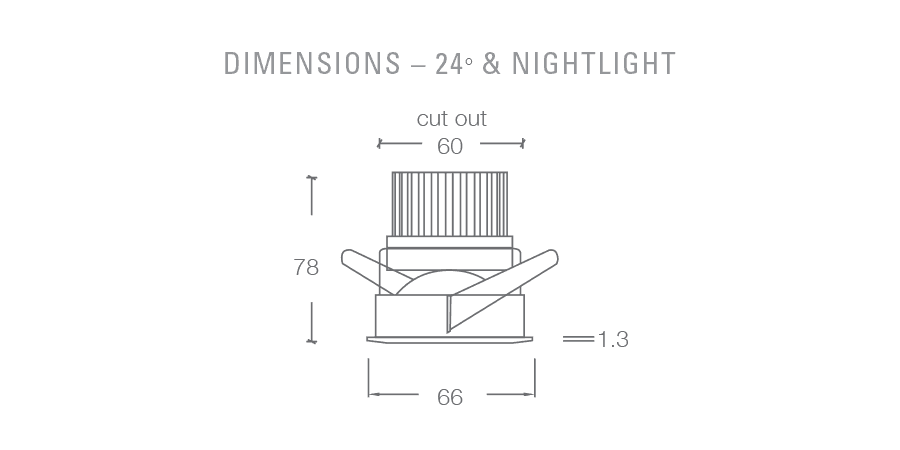

ADL66 XIM NIGHTLIGHT diagram
ADL66 XIM DOWNLIGHT diagram

Lighting Effects

Lighting Effects Lighting Effects

Product Details

  • Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K, 4000K or 2700K upon request
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift
  • Thin 1.3mm white polycarbonate trim
  • Made in Australia
  • L70B0 at 55,000 hours
  • UGR<19
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Colour Finish

  • white WH
  • silver SIL
  • black BLK

Codes & Downloads

NIGHTLIGHT XTM 240V – 83+ CRI

Non Dimmable CCT Lumens Watts
ADL66.XTM2.8030.61 3000K 250 3
ADL66.XTM2.8040.61 4000K 250 3

XTM 240V – 83+ CRI

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL66.XTM7N.8030.61 ADL66.XTM7N.8030.66 24° 3000K 607 6
ADL66.XTM7N.8040.61 ADL66.XTM7N.8040.66 24° 4000K 607 6
ADL66.XTM3M.8030.61 ADL66.XTM3M.8030.66 35° 3000K 626 6
ADL66.XTM3M.8040.61 ADL66.XTM3M.8040.66 35° 4000K 626 6
ADL66.XTM3W.8030.61 ADL66.XTM3W.8030.66 55° 3000K 607 6
ADL66.XTM3W.8040.61 ADL66.XTM3W.8040.66 55° 4000K 607 6

XTM 240V – 98 CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable Beam CCT Lumens Watts
ADL66.XTM7N.9530.61 ADL66.XTM7N.9530.63 ADL66.XTM7N.9530.66 24° 3000K 621 8
ADL66.XTM7N.9540.61 ADL66.XTM7N.9540.63 ADL66.XTM7N.9540.66 24° 4000K 621 8
ADL66.XTM3M.9530.61 ADL66.XTM3M.9530.63 ADL66.XTM3M.9530.66 35° 3000K 645 8
ADL66.XTM3M.9540.61 ADL66.XTM3M.9540.63 ADL66.XTM3M.9540.66 35° 4000K 645 8
ADL66.XTM3W.9530.61 ADL66.XTM3W.9530.63 ADL66.XTM3W.9530.66 55° 3000K 621 8
ADL66.XTM3W.9540.61 ADL66.XTM3W.9540.63 ADL66.XTM3W.9540.66 55° 4000K 621 8

For more details, download the ADL66 DOWNLIGHT Information Sheet

Download the IES file for ADL66 DOWNLIGHT
