Overview

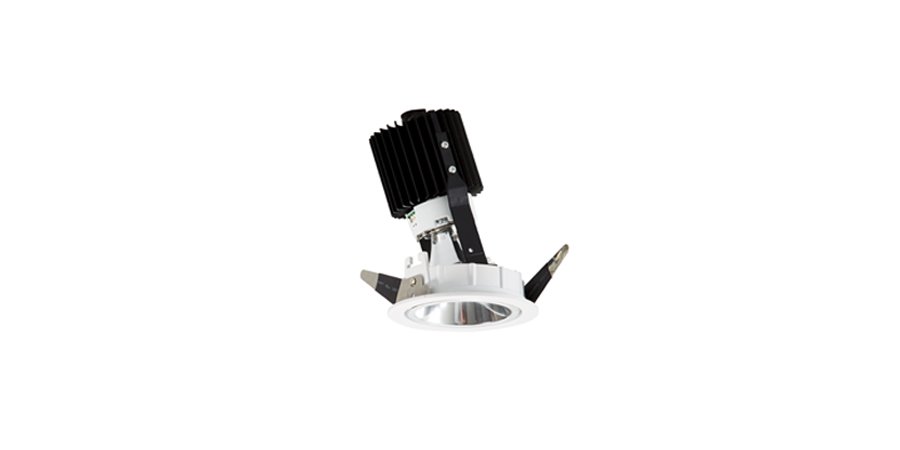

ADLJ110 DOWNLIGHT

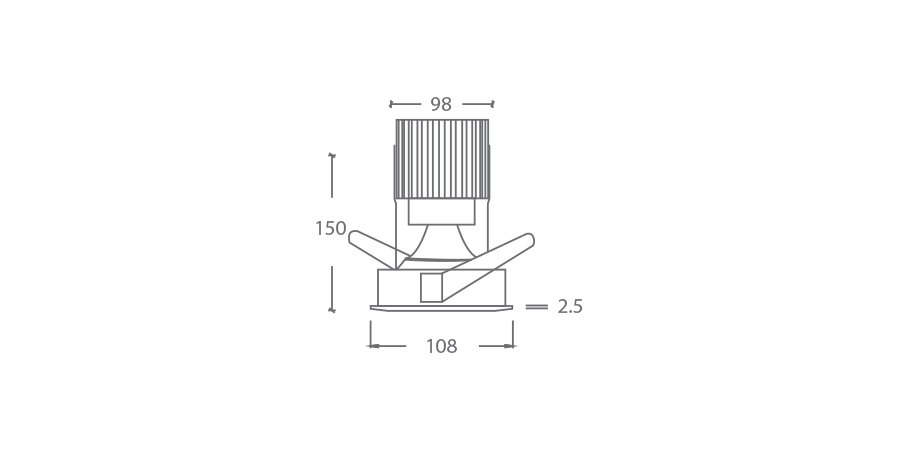

ADLJ110 DOWNLIGHT diagram

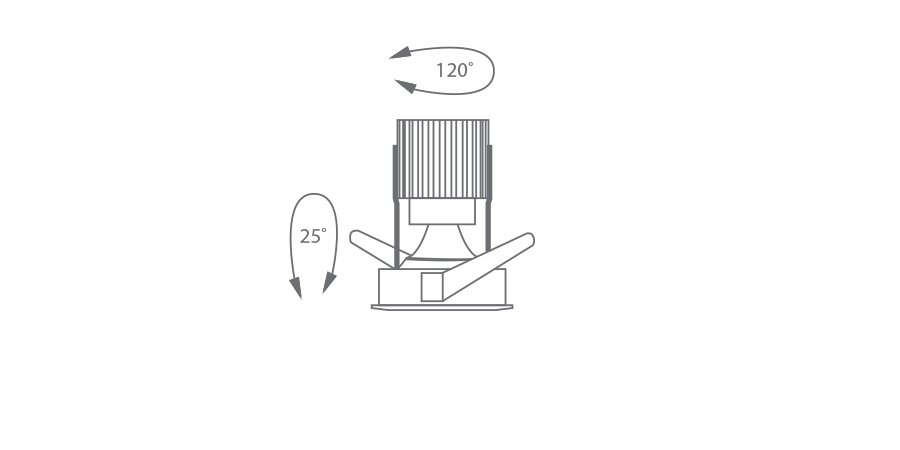

ADLJ110 DOWNLIGHT rotation

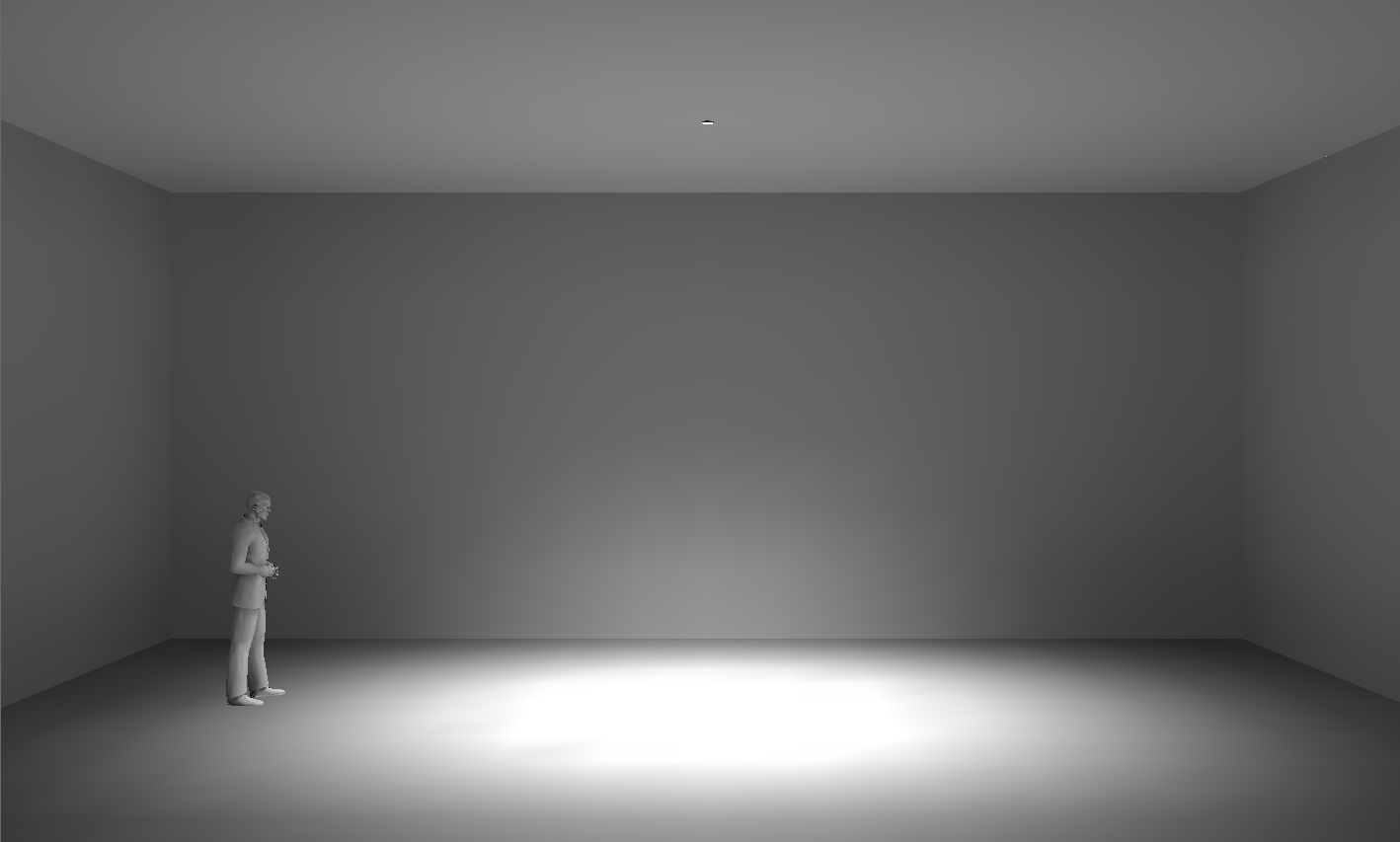

Lighting Effects

ADLJ110 XIM RECESSED Lighting Effects ADLJ110 XIM RECESSED Lighting Effects

Product Details

  • Xicato XTM technology
  • Standard CRI 83+ or Artist high CRI 98
  • 3000K, 4000K or 2700K upon request
  • High quality, mirror finish low glare reflector
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift
  • L70B0 at 55,000 hours
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Colour Finish

  • white WH

Codes & Downloads

XTM 240V – 83+ CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable CCT Lumens Watts
ADLJ110.XTM5.8030.61 ADLJ110.XTM5.8030.63 ADLJ110.XTM5.8030.66 3000K 1121 13
ADLJ110.XTM5.8040.61 ADLJ110.XTM5.8040.63 ADLJ110.XTM5.8040.66 4000K 1121 13

XTM 240V – 98 CRI

Non Dimmable Trailing Edge Dimmable DALI Dimmable CCT Lumens Watts
ADLJ110.XTM7.9530.61 ADLJ110.XTM7.9530.63 ADLJ110.XTM7.9530.66 3000K 970 16
ADLJ110.XTM7.9540.61 ADLJ110.XTM7.9540.63 ADLJ110.XTM7.9540.66 4000K 970 16

For more details, download the ADLJ110 DOWNLIGHT Information Sheet

Download the IES file for ADLJ110 DOWNLIGHT
