DISPLAY SPOT 110 DOWNLIGHT

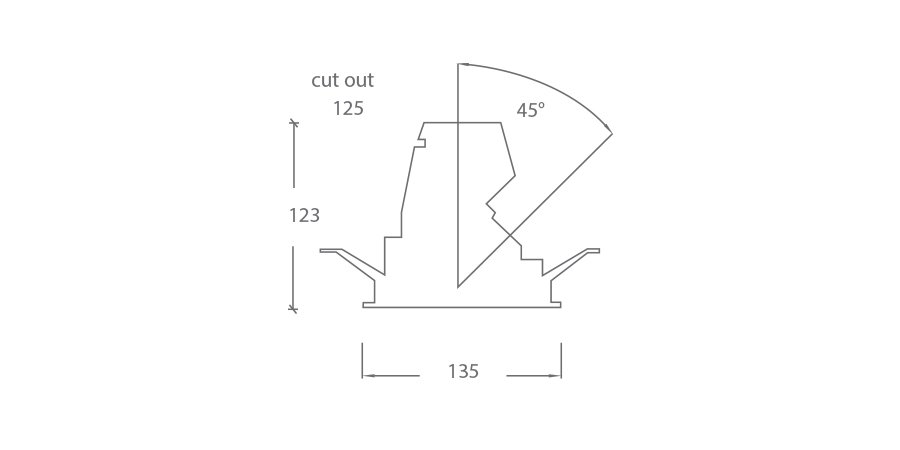

DISPLAY SPOT 135 DOWNLIGHT diagram

Product Details

  • XICATO XTM technology
  • Rotatable and adjustable
  • Die cast aluminium trim, powdercoated white
  • Aluminium reflector and internal lens
  • 3000K, 4000K or 2700K upon request
  • Ceiling mounted without tools
  • Standard CRI 83+ or Artist high CRI 98
  • Excellent colour consistency from luminaire to luminaire
  • 5 year colour consistency warranty – no colour shift
  • L70B0 @ 55,000 hours
  • UGR19
  • Available in a Bluetooth dimmable version refer to Smart Lighting Catalogue

Colour Finish

  • white WH

Codes & Downloads

XTM 240V – 83+ CRI – LOW OUTPUT

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
DS135.XTM5.N.8030.61 DS135.XTM5.N.8030.66 23° 3000K 1382 13
DS135.XTM5.N.8040.61 DS135.XTM5.N.8040.66 23° 4000K 1382 13
DS135.XTM5.W.8030.61 DS135.XTM5.W.8030.66 45° 3000K 1398 13
DS135.XTM5.W.8040.61 DS135.XTM5.W.8040.66 45° 4000K 1398 13

XTM 240V – 83+ CRI – HIGH OUTPUT

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
DS135.XTM7.N.8030.61 DS135.XTM7.N.8030.66 23° 3000K 1856 18.5
DS135.XTM7.N.8040.61 DS135.XTM7.N.8040.66 23° 4000K 1856 18.5
DS135.XTM7.W.8030.61 DS135.XTM7.W.8030.66 45° 3000K 1877 18.5
DS135.XTM7.W.8040.61 DS135.XTM7.W.8040.66 45° 4000K 1877 18.5

XTM 240V – 98 CRI – LOW OUTPUT

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
DS135.XTM5.N.9530.61 DS135.XTM5.N.9530.66 23° 3000K 979 11
DS135.XTM5.N.9540.61 DS135.XTM5.N.9540.66 23° 4000K 979 11
DS135.XTM5.W.9530.61 DS135.XTM5.W.9530.66 40° 3000K 990 11
DS135.XTM5.W.9540.61 DS135.XTM5.W.9540.66 40° 4000K 990 11

XTM 240V – 98 CRI – HIGH OUTPUT

Non Dimmable DALI Dimmable Beam CCT Lumens Watts
DS135.XTM7.N.9530.61 DS135.XTM7.N.9530.66 23° 3000K 1300 16
DS135.XTM7.N.9540.61 DS135.XTM7.N.9540.66 23° 4000K 1300 16
DS135.XTM7.W.9530.61 DS135.XTM7.W.9530.66 40° 3000K 1310 16
DS135.XTM7.W.9540.61 DS135.XTM7.W.9540.66 40° 4000K 1310 16

For more details, download the DISPLAY SPOT 135 DOWNLIGHT Information Sheet

Download the IES file for DISPLAY SPOT 135 DOWNLIGHT
