Overview

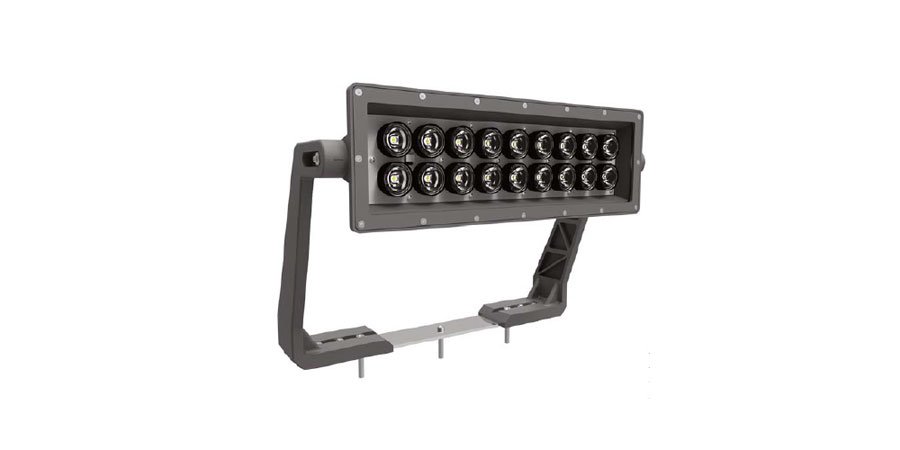

ESDIUM PRO
ESIDUIM PRO M1 HORIZONTAL
ESIDUIM PRO M2 HORIZONTAL
ESIDUIM PRO M3 HORIZONTAL
ESIDUIM PRO M3 VERTICAL
ESIDUIM PRO M4 VERTICAL

Product Details

  • IP66 rated
  • Aluminium housing powdercoated
  • Available in 3000K, 4000K or 5000K
  • 80+ CRI
  • 6 different optics available
  • Suitable for sports field lighting with special TV broadcasting LED (5700K CRI>90)
  • Made in EU

How to Order

ESDIUM PRO How to Order

CCT

3000K 83
4000K 84
5000K 85

Body Colour

dark grey 58
black 02
white 01

Optics

Symmetric 100° 0
Extensive symmetric 41° 1
Medium symmetric 32° 2
Intensive symmetric 21° 3
Frontal asymmetric 50° 4
Asymmetric 2 sides 120° x 40° 5
ESDIUM PRO Optics diagram 0 1 2
ESDIUM PRO Optics diagram 3 4 5

Optional Accessories

  • DALI dimmable driver DRD
  • TV Broadcasting LED LTV

Codes & Downloads

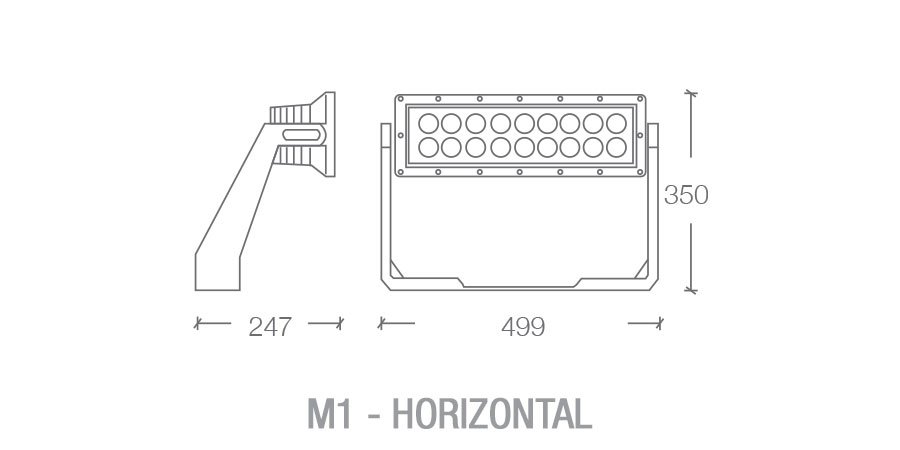

M1 – 150W – HORIZONTAL

Non Dimmable CCT Lumens Watts
5300.58.15.0.83 3000K 15300 150
5300.58.15.0.84 4000K 16290 150
5300.58.15.0.85 5000K 16560 150

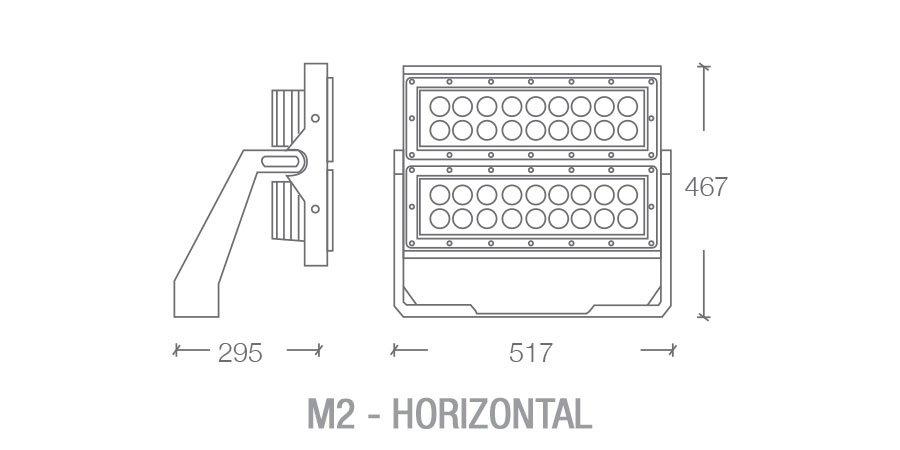

M2 – 300W – HORIZONTAL

Non Dimmable CCT Lumens Watts
5300.58.30.0.83 3000K 30600 300
5300.58.30.0.84 4000K 32580 300
5300.58.30.0.85 5000K 33120 300

M3 – 450W – HORIZONTAL

Non Dimmable CCT Lumens Watts
5300.58.45.0.83 3000K 45900 450
5300.58.45.0.84 4000K 48870 450
5300.58.45.0.85 5000K 49680 450

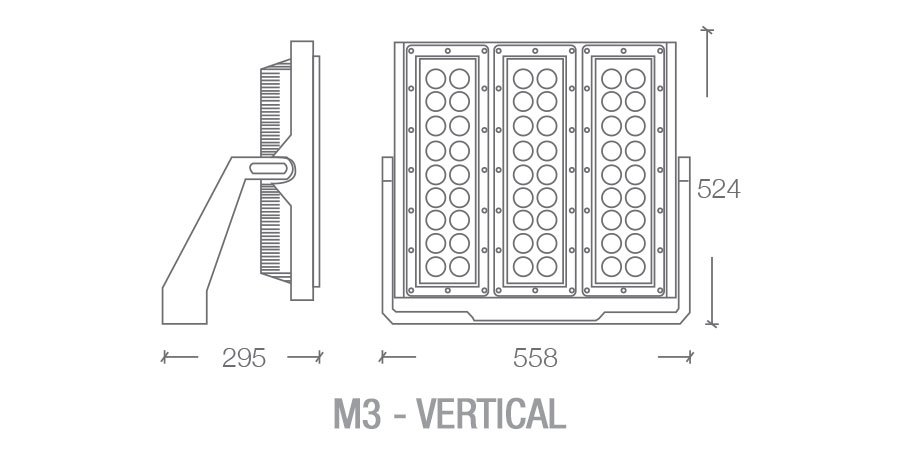

M3 – 450W – VERTICAL

Non Dimmable CCT Lumens Watts
5301.58.45.0.83 3000K 45900 450
5301.58.45.0.84 4000K 48870 450
5301.58.45.0.85 5000K 49680 450

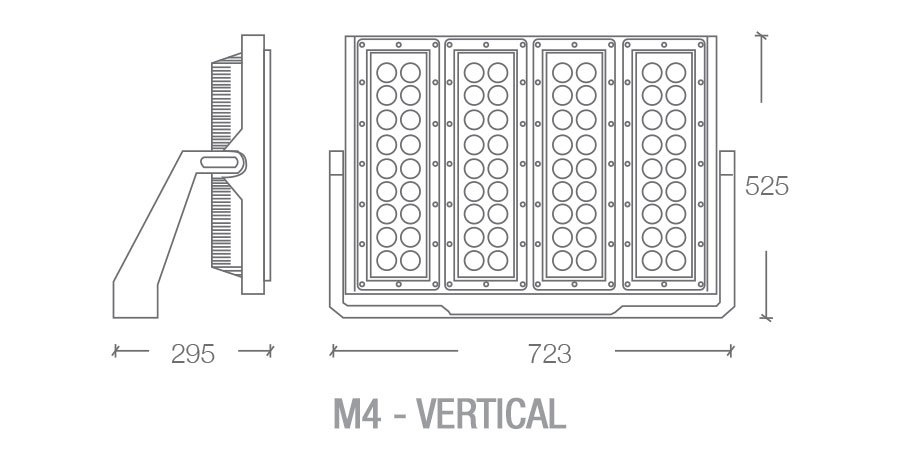

M4 – 600W – VERTICAL

Non Dimmable CCT Lumens Watts
5300.58.60.0.83 3000K 61200 600
5300.58.60.0.84 4000K 65160 600
5300.58.60.0.85 5000K 66240 600

For more details, download the ESDIUM PRO Information Sheet

Download the IES file for ESDIUM PRO
