Overview
Product Description

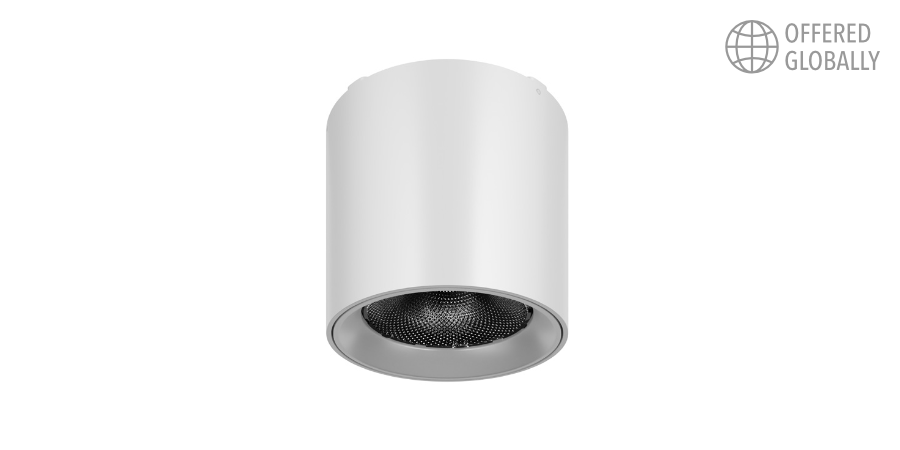

Flex by name and Flex by design. The Flex 100 Mini Surface Mounted luminiare is one of the smallest surface mounted luminaires available in the ELS range.
Presenting in a miniature size, the Flex 100 Mini Surface Mounted features optics that ensure exceptional glare control, a cornerstone of ELS’s design philosophy. It also features a large baffle for extra visual comfort.
It is available with variable output technology to optimise performance to exact project requirements.
Product Details
| Absolute luminous flux | 743lm – 1500lm |
| System watts | 8W / 10W / 12W / 14W / 16W / 18W |
| Luminaire efficacy | up to 93lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
| Optic | PMMA Clear Lens |
| Beam angle | 13° / 25° / 34° / 54° / 80° |
| Driver | Integral for non dim & DALI / Remote for Casambi |
| Luminaire housing | Aluminium Powdercoated |
| Luminaire housing colour | Black / White / Custom |
| Luminaire baffle colour | Black / White / Custom |
| Custom body finishes | Custom powdercoat colour |
| Country of origin | Australia |
| Warranty | 7 years |

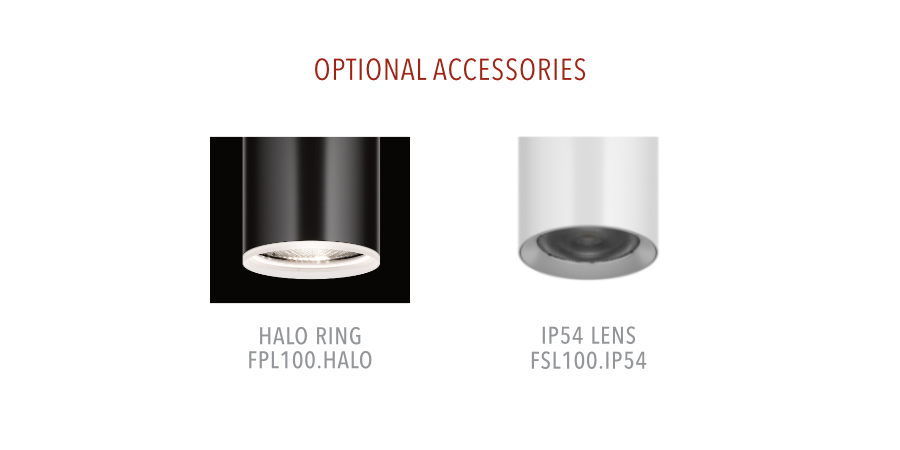

Optional Accessories
FPL100.HALO
A discreet glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
FSL100.IP54
A clear IP54 lens. Required to be installed at time of manufacture. Not available in 18W version.
Product Variants
HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the FLEX 100 MINI SURFACE | LENS Information Sheet
