Overview
Product Description
Flex by name and Flex by design. The Flex 70 Mini Surface Mounted luminiare is the smallest surface mounted luminaire available in the ELS range.
Presenting in a miniature size, the Flex 70 Mini Surface Mounted features optics that ensure exceptional glare control a cornerstone of ELS’s design philosophy.
It is available with variable output technology to optimise performance to exact project requirements.
Product Details
| Absolute luminous flux | 743lm – 1209lm |
| System watts | 8W / 10W / 12W / 14W |
| Luminaire efficacy | up to 93lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
| Optic | PMMA Clear Lens |
| Beam angle | 13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear / Zoom |
| Driver | Integral for non dim & DALI / Remote for Casambi |
| Luminaire housing | Aluminium Powdercoated |
| Luminaire housing colour | Black / White / Custom |
| Luminaire baffle colour | Black / Custom |
| Custom body finishes | Custom powdercoat colour |
| Country of origin | Australia |
| Warranty | 7 years |

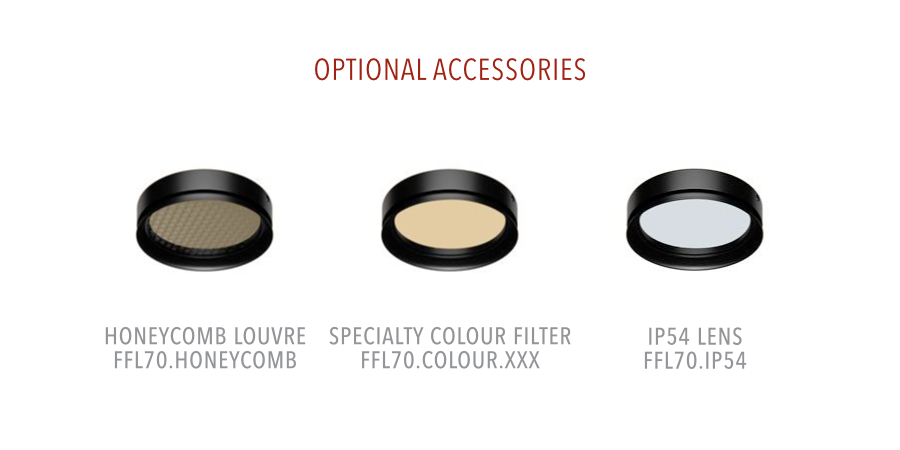

Optional Accessories
FFL70.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.
FFL70.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.Only available with remote gear.
FFL70.IPX4
A clear IPX4 lens. Required to be installed at time of manufacture. Only available with remote gear.
FPL70.XLB
A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
FPL70.HALO
A discreet 7mm glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.
Product Variants

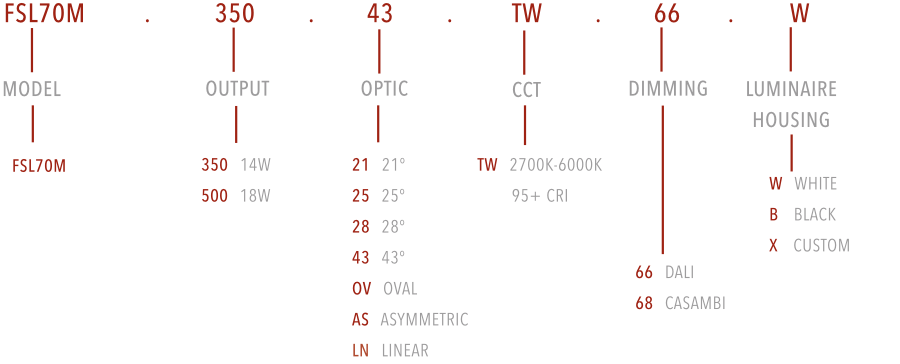

HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
TUNABLE WHITE
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the FLEX 70 MINI SURFACE | LENS Information Sheet
