Overview

Product Description

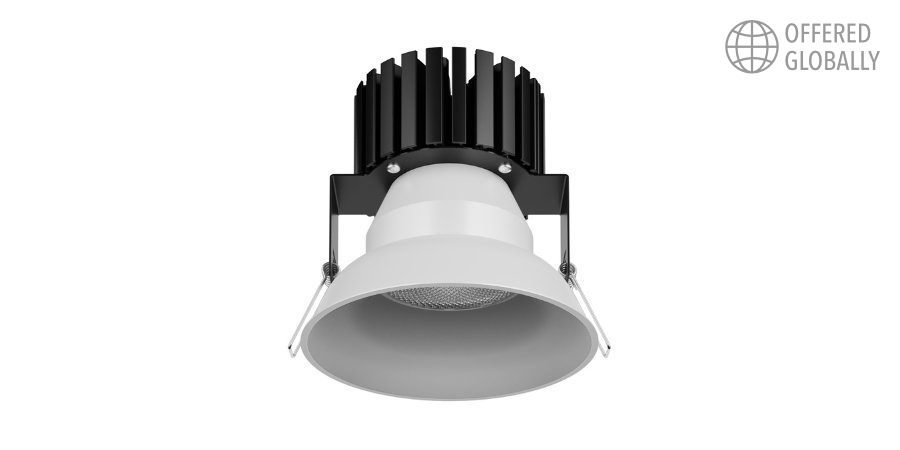

Introducing the newest member to the Flex Range – the Flex 70 Trimless. An ultra fine trimmed downlight giving the illusion of a trimless luminaire once installed in the ceiling without the hassles of traditional plaster in luminaires.

The Flex Trimless features a deep reflector paired with lens based optics to provide precise distributions while still ensuring perfect visual comfort.

Available with an array of optics, the Flex Trimless can also comes as IP44 rated and ELS’s variable output technology allowing for customisable outputs.

Product Details

Absolute luminous flux 867lm – 2017lm
System watts7W / 9W / 11W / 13W /15W / 17W / 19W
Luminaire efficacyup to 106lm/W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperature2700K / 3000K / 3500K / 4000K / White Tunable / RGBW
Lumen maintenanceL90B10 90,000hours
Dimming methodDALI / Casambi
Optic PMMA Clear Lens
Beam angle24° / 35° / 54° / 80°
Luminaire frame/reflectorAluminium
Luminaire reflector colourBlack / White / Custom
Country of origin Australia
Warranty 7 years

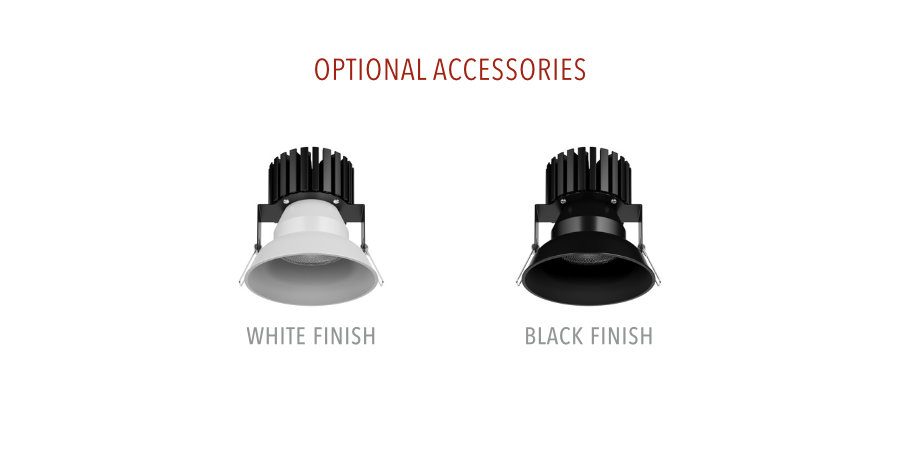

Optional Accessories

IP44 ATTACHMENT
FTM50.IP44

A factory modification that creates an IP44 rating from below the ceiling.

Cannot be retrofitted at a later date.

FLEX 50 TRIMLESS White Finish
WHITE FINISH
FLEX 50 TRIMLESS Black Finish
BLACK FINISH

Product Variants
HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

For more details, download the FLEX 70 TRIMLESS | LENS Information Sheet

Download the IES files for FLEX 70 TRIMLESS | LENS
