Overview
Product Description

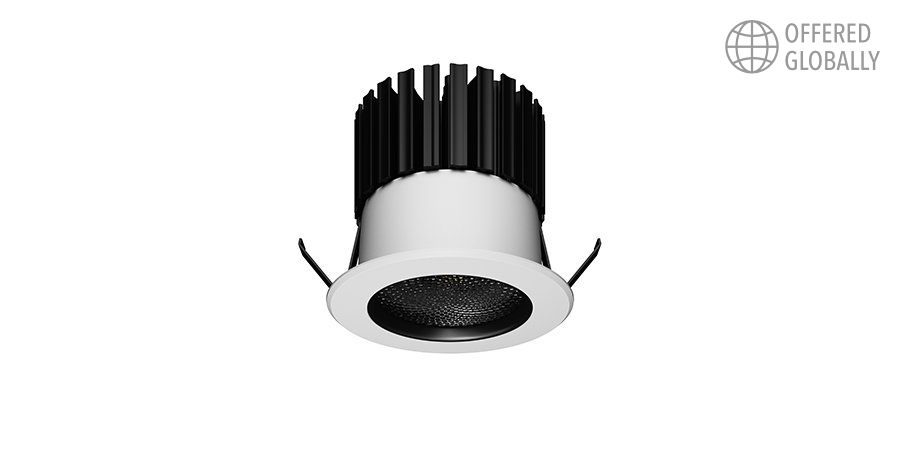

Flex by name and Flex by design. The Flex Fixed 70 luminiare is the most versatile high performance spotlight luminaire available in the ELS range.
Presenting a sleek minimalist style, the Flex Fixed 70 features optics that ensure exceptional glare control a cornerstone of ELS’s design philosophy.
It is available with variable output technology to optimise performance to exact project requirements.
Product Details
| Absolute luminous flux | 589lm – 1750lm |
| System watts | 8W / 10W / 12W / 14W / 16W / 18W / 20W |
| Luminaire efficacy | up to 100lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 3000K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Trailing Edge / DALI / Casambi |
| Optic | PMMA Clear Lens |
| Beam angle | 13° / 25° / 34° / 54° / 40°x 68° |
| Luminaire housing | Aluminium |
| Luminaire housing colour | Black / White / Silver / Custom |
| Luminaire baffle colour | Black |
| Custom body finishes | Custom powdercoat colour |
| Country of origin | Australia |

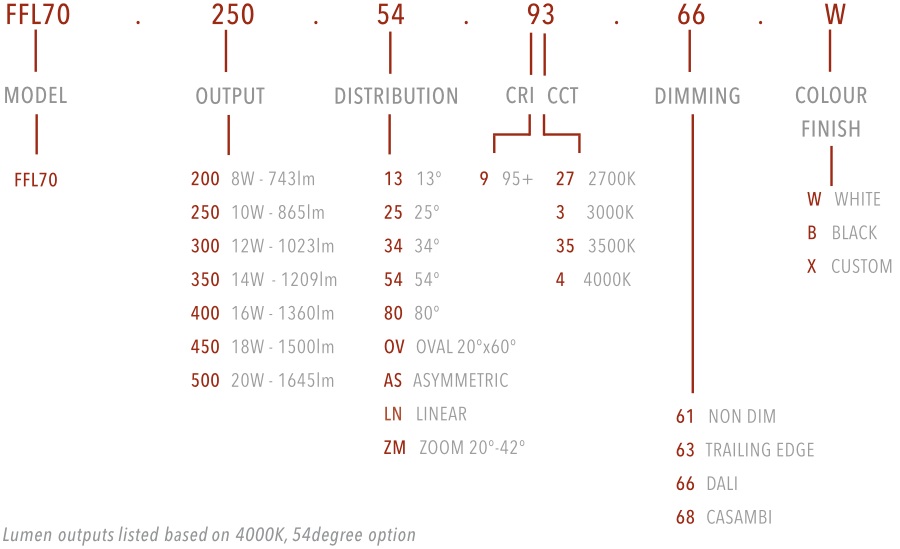

Codes & Downloads
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.200.13.93.61 | FFL70.200.13.93.63 | FFL70.200.13.93.66 | FFL70.200.13.93.68 | 13° | 3000K | 728 | 8 |
| FFL70.200.13.94.61 | FFL70.200.13.94.63 | FFL70.200.13.94.66 | FFL70.200.13.94.68 | 13° | 4000K | 790 | 8 |
| FFL70.200.25.93.61 | FFL70.200.25.93.63 | FFL70.200.25.93.66 | FFL70.200.25.93.68 | 25° | 3000K | 731 | 8 |
| FFL70.200.25.94.61 | FFL70.200.25.94.63 | FFL70.200.25.94.66 | FFL70.200.25.94.68 | 25° | 4000K | 799 | 8 |
| FFL70.200.34.93.61 | FFL70.200.34.93.63 | FFL70.200.34.93.66 | FFL70.200.34.93.68 | 34° | 3000K | 750 | 8 |
| FFL70.200.34.94.61 | FFL70.200.34.94.63 | FFL70.200.34.94.66 | FFL70.200.34.94.68 | 34° | 4000K | 810 | 8 |
| FFL70.200.54.93.61 | FFL70.200.54.93.63 | FFL70.200.54.93.66 | FFL70.200.54.93.68 | 54° | 3000K | 680 | 8 |
| FFL70.200.54.94.61 | FFL70.200.54.94.63 | FFL70.200.54.94.66 | FFL70.200.54.94.68 | 54° | 4000K | 743 | 8 |
| FFL70.200.OV.93.61 | FFL70.200.OV.93.63 | FFL70.200.OV.93.66 | FFL70.200.OV.93.68 | 40° x 68° | 3000K | 589 | 8 |
| FFL70.200.OV.94.61 | FFL70.200.OV.94.63 | FFL70.200.OV.94.66 | FFL70.200.OV.94.68 | 40° x 68° | 4000K | 644 | 8 |
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.250.13.93.61 | FFL70.250.13.93.63 | FFL70.250.13.93.66 | FFL70.250.13.93.68 | 13° | 3000K | 894 | 10 |
| FFL70.250.13.94.61 | FFL70.250.13.94.63 | FFL70.250.13.94.66 | FFL70.250.13.94.68 | 13° | 4000K | 977 | 10 |
| FFL70.250.25.93.61 | FFL70.250.25.93.63 | FFL70.250.25.93.66 | FFL70.250.25.93.68 | 25° | 3000K | 899 | 10 |
| FFL70.250.25.94.61 | FFL70.250.25.94.63 | FFL70.250.25.94.66 | FFL70.250.25.94.68 | 25° | 4000K | 983 | 10 |
| FFL70.250.34.93.61 | FFL70.250.34.93.63 | FFL70.250.34.93.66 | FFL70.250.34.93.68 | 34° | 3000K | 861 | 10 |
| FFL70.250.34.94.61 | FFL70.250.34.94.63 | FFL70.250.34.94.66 | FFL70.250.34.94.68 | 34° | 4000K | 938 | 10 |
| FFL70.250.54.93.61 | FFL70.250.54.93.63 | FFL70.250.54.93.66 | FFL70.250.54.93.68 | 54° | 3000K | 791 | 10 |
| FFL70.250.54.94.61 | FFL70.250.54.94.63 | FFL70.250.54.94.66 | FFL70.250.54.94.68 | 54° | 4000K | 865 | 10 |
| FFL70.250.OV.93.61 | FFL70.250.OV.93.63 | FFL70.250.OV.93.66 | FFL70.250.OV.93.68 | 40° x 68° | 3000K | 724 | 10 |
| FFL70.250.OV.94.61 | FFL70.250.OV.94.63 | FFL70.250.OV.94.66 | FFL70.250.OV.94.68 | 40° x 68° | 4000K | 792 | 10 |
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.300.13.93.61 | FFL70.300.13.93.63 | FFL70.300.13.93.66 | FFL70.300.13.93.68 | 13° | 3000K | 1058 | 12 |
| FFL70.300.13.94.61 | FFL70.300.13.94.63 | FFL70.300.13.94.66 | FFL70.300.13.94.68 | 13° | 4000K | 1155 | 12 |
| FFL70.300.25.93.61 | FFL70.300.25.93.63 | FFL70.300.25.93.66 | FFL70.300.25.93.68 | 25° | 3000K | 1110 | 12 |
| FFL70.300.25.94.61 | FFL70.300.24.94.63 | FFL70.300.25.94.66 | FFL70.300.25.94.68 | 25° | 4000K | 1200 | 12 |
| FFL70.300.34.93.61 | FFL70.300.34.93.63 | FFL70.300.34.93.66 | FFL70.300.34.93.68 | 34° | 3000K | 1018 | 12 |
| FFL70.300.34.94.61 | FFL70.300.34.94.63 | FFL70.300.34.94.66 | FFL70.300.34.94.68 | 34° | 4000K | 1115 | 12 |
| FFL70.300.54.93.61 | FFL70.300.54.93.63 | FFL70.300.54.93.66 | FFL70.300.54.93.68 | 54° | 3000K | 935 | 12 |
| FFL70.300.54.94.61 | FFL70.300.54.94.63 | FFL70.300.54.94.66 | FFL70.300.54.94.68 | 54° | 4000K | 1023 | 12 |
| FFL70.300.OV.93.61 | FFL70.300.OV.93.63 | FFL70.300.OV.93.66 | FFL70.300.OV.93.68 | 40° x 68° | 3000K | 857 | 12 |
| FFL70.300.OV.94.61 | FFL70.300.OV.94.63 | FFL70.300.OV.94.66 | FFL70.300.OV.94.68 | 40° x 68° | 4000K | 937 | 12 |
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.350.13.93.61 | FFL70.350.13.93.63 | FFL70.350.13.93.66 | FFL70.350.13.93.68 | 13° | 3000K | 1130 | 14 |
| FFL70.350.13.94.61 | FFL70.350.13.94.63 | FFL70.350.13.94.66 | FFL70.350.13.94.68 | 13° | 4000K | 1235 | 14 |
| FFL70.350.25.93.61 | FFL70.350.25.93.63 | FFL70.350.25.93.66 | FFL70.350.25.93.68 | 25° | 3000K | 1191 | 14 |
| FFL70.350.25.94.61 | FFL70.350.25.94.63 | FFL70.350.25.94.66 | FFL70.350.25.94.68 | 25° | 4000K | 1285 | 14 |
| FFL70.350.34.93.61 | FFL70.350.34.93.63 | FFL70.350.34.93.66 | FFL70.350.34.93.68 | 34° | 3000K | 1201 | 14 |
| FFL70.350.34.94.61 | FFL70.350.34.94.63 | FFL70.350.34.94.66 | FFL70.350.34.94.68 | 34° | 4000K | 1310 | 14 |
| FFL70.350.54.93.61 | FFL70.350.54.93.63 | FFL70.350.54.93.66 | FFL70.350.54.93.68 | 54° | 3000K | 1106 | 14 |
| FFL70.350.54.94.61 | FFL70.350.54.94.63 | FFL70.350.54.94.66 | FFL70.350.54.94.68 | 54° | 4000K | 1209 | 14 |
| FFL70.350.OV.93.61 | FFL70.350.OV.93.63 | FFL70.350.OV.93.66 | FFL70.350.OV.93.68 | 40° x 68° | 3000K | 966 | 14 |
| FFL70.350.OV.94.61 | FFL70.350.OV.94.63 | FFL70.350.OV.94.66 | FFL70.350.OV.94.68 | 40° x 68° | 4000K | 1057 | 14 |
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.400.13.93.61 | FFL70.400.13.93.63 | FFL70.400.13.93.66 | FFL70.400.13.93.68 | 13° | 3000K | 1296 | 16 |
| FFL70.400.13.94.61 | FFL70.400.13.94.63 | FFL70.400.13.94.66 | FFL70.400.13.94.68 | 13° | 4000K | 1418 | 16 |
| FFL70.400.25.93.61 | FFL70.400.25.93.63 | FFL70.400.25.93.66 | FFL70.400.25.93.68 | 25° | 3000K | 1355 | 16 |
| FFL70.400.25.94.61 | FFL70.400.25.94.63 | FFL70.400.25.94.66 | FFL70.400.25.94.68 | 25° | 4000K | 1450 | 16 |
| FFL70.400.34.93.61 | FFL70.400.34.93.63 | FFL70.400.34.93.66 | FFL70.400.34.93.68 | 34° | 3000K | 1350 | 16 |
| FFL70.400.34.94.61 | FFL70.400.34.94.63 | FFL70.400.34.94.66 | FFL70.400.34.94.68 | 34° | 4000K | 1475 | 16 |
| FFL70.400.54.93.61 | FFL70.400.54.93.63 | FFL70.400.54.93.66 | FFL70.400.54.93.68 | 54° | 3000K | 1244 | 16 |
| FFL70.400.54.94.61 | FFL70.400.54.94.63 | FFL70.400.54.94.66 | FFL70.400.54.94.68 | 54° | 4000K | 1360 | 16 |
| FFL70.400.OV.93.61 | FFL70.400.OV.93.63 | FFL70.400.OV.93.66 | FFL70.400.OV.93.68 | 40° x 68° | 3000K | 1087 | 16 |
| FFL70.400.OV.94.61 | FFL70.400.OV.94.63 | FFL70.400.OV.94.66 | FFL70.400.OV.94.68 | 40° x 68° | 4000K | 1189 | 16 |
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.450.13.93.61 | FFL70.450.13.93.63 | FFL70.450.13.93.66 | FFL70.450.13.93.68 | 13° | 3000K | 1400 | 18 |
| FFL70.450.13.94.61 | FFL70.450.13.94.63 | FFL70.450.13.94.66 | FFL70.450.13.94.68 | 13° | 4000K | 1530 | 18 |
| FFL70.450.25.93.61 | FFL70.450.25.93.63 | FFL70.450.25.93.66 | FFL70.450.25.93.68 | 25° | 3000K | 1480 | 18 |
| FFL70.450.25.94.61 | FFL70.450.25.94.63 | FFL70.450.25.94.66 | FFL70.450.25.94.68 | 25° | 4000K | 1610 | 18 |
| FFL70.450.34.93.61 | FFL70.450.34.93.63 | FFL70.450.34.93.66 | FFL70.450.34.93.68 | 34° | 3000K | 1485 | 18 |
| FFL70.450.34.94.61 | FFL70.450.34.94.63 | FFL70.450.34.94.66 | FFL70.450.34.94.68 | 34° | 4000K | 1590 | 18 |
| FFL70.450.54.93.61 | FFL70.450.54.93.63 | FFL70.450.54.93.66 | FFL70.450.54.93.68 | 54° | 3000K | 1371 | 18 |
| FFL70.450.54.94.61 | FFL70.450.54.94.63 | FFL70.450.54.94.66 | FFL70.450.54.94.68 | 54° | 4000K | 1500 | 18 |
| FFL70.450.OV.93.61 | FFL70.450.OV.93.63 | FFL70.450.OV.93.66 | FFL70.450.OV.93.68 | 40° x 68° | 3000K | 1208 | 18 |
| FFL70.450.OV.94.61 | FFL70.450.OV.94.63 | FFL70.450.OV.94.66 | FFL70.450.OV.94.68 | 40° x 68° | 4000K | 1322 | 18 |
| Non Dimmable | TRAILING EDGE DIMMABLE | DALI Dimmable | Casambi Dimmable | Beam Angle | CCT | Lumens | Watts |
|---|---|---|---|---|---|---|---|
| FFL70.500.13.93.61 | FFL70.500.13.93.63 | FFL70.500.13.93.66 | FFL70.500.13.93.68 | 13° | 3000K | 1527 | 20 |
| FFL70.500.13.94.61 | FFL70.500.13.94.63 | FFL70.500.13.94.66 | FFL70.500.13.94.68 | 13° | 4000K | 1665 | 20 |
| FFL70.500.25.93.61 | FFL70.500.25.93.63 | FFL70.500.25.93.66 | FFL70.500.25.93.68 | 25° | 3000K | 1621 | 20 |
| FFL70.500.25.94.61 | FFL70.500.25.94.63 | FFL70.500.25.94.66 | FFL70.500.25.94.68 | 25° | 4000K | 1750 | 20 |
| FFL70.500.34.93.61 | FFL70.500.34.93.63 | FFL70.500.34.93.66 | FFL70.500.34.93.68 | 34° | 3000K | 1633 | 20 |
| FFL70.500.34.94.61 | FFL70.500.34.94.63 | FFL70.500.34.94.66 | FFL70.500.34.94.68 | 34° | 4000K | 1745 | 20 |
| FFL70.500.54.93.61 | FFL70.500.54.93.63 | FFL70.500.54.93.66 | FFL70.500.54.93.68 | 54° | 3000K | 1505 | 20 |
| FFL70.500.54.94.61 | FFL70.500.54.94.63 | FFL70.500.54.94.66 | FFL70.500.54.94.68 | 54° | 4000K | 1645 | 20 |
| FFL70.500.OV.93.61 | FFL70.50.OV.93.63 | FFL70.500.OV.93.66 | FFL70.500.OV.93.68 | 40° x 68° | 3000K | 1325 | 20 |
| FFL70.500.OV.94.61 | FFL70.500.OV.94.63 | FFL70.500.OV.94.66 | FFL70.500.OV.94.68 | 40° x 68° | 4000K | 1449 | 20 |
For more details, download the FLEX FIXED 70 | LENS Information Sheet
