Overview

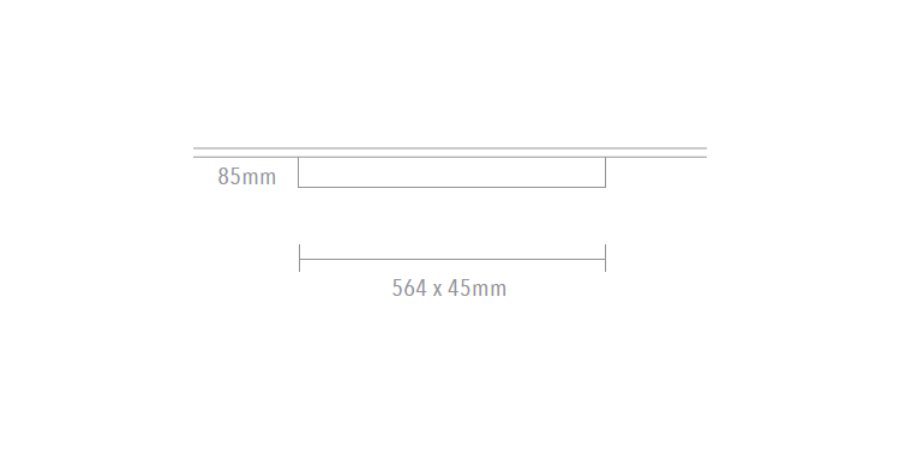

DISPLAY TRACKLIGHT diagram

Product Description

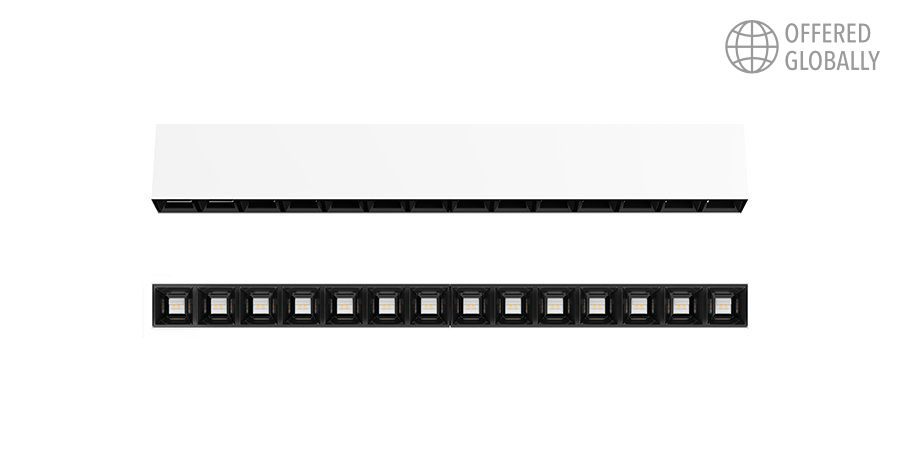

The most magical lights are seen at nightfall. And so it is with the Nightfall 414 Asymmetric Surface Mount Linear Downlight. The magic of this luminaire is that it presents beautifully and performs brilliantly without imposing on the overall design aesthetic.

Available with Variable Output Technology the Nightfall 414 ensures complete lighting control and performance for the user. This amazing luminaire also features a dual optical system that enables both glare control and beam intensity.

Product Details

Absolute luminous flux 775lm – 1395lm
System watts 11W / 14W / 18W
Luminaire efficacy up to 78lm/W
Colour deviation 3 SDCM
Colour rendition Index >90
Correlated colour temperature 3000K / 4000K / 2700K – 6500K
Lumen maintenance L80B10 50,000hours
Driver Remote
Dimming method DALI / Casambi
Optic PMMA Clear Lens & PC Louvre
Louvre finish Black / White
Beam angle 65° / 80° / Asymmetric
Luminaire housing Aluminium
Luminaire housing colour Black / White / Custom
Country of origin Australia

Codes & Downloads

BLACK LOUVRE

Non Dimmable DALI Dimmable Casambi Dimmable BEAM ANGLE CCT CRI Lumens Watts
NFS414B.250.AS.93.61 NFS414B.250.AS.93.66 NFS414B.250.AS.93.68 ASYMMETRIC 3000K 90+ 775 11
NFS414B.250.AS.94.61 NFS414B.250.AS.94.66 NFS414B.250.AS.94.68 ASYMMETRIC 4000K 90+ 814 11
Non Dimmable DALI Dimmable Casambi Dimmable BEAM ANGLE CCT CRI Lumens Watts
NFS414B.350.AS.93.61 NFS414B.350.AS.93.66 NFS414B.350.AS.93.68 ASYMMETRIC 3000K 90+ 1066 14
NFS414B.350.AS.94.61 NFS414B.350.AS.94.66 NFS414B.350.AS.94.68 ASYMMETRIC 4000K 90+ 1119 14
Non Dimmable DALI Dimmable Casambi Dimmable BEAM ANGLE CCT CRI Lumens Watts
NFS414B.400.AS.93.61 NFS414B.400.AS.93.66 NFS414B.400.AS.93.68 ASYMMETRIC 3000K 90+ 1328 18
NFS414B.400.AS.94.61 NFS414B.400.AS.94.66 NFS414B.400.AS.94.68 ASYMMETRIC 4000K 90+ 1395 18

WHITE LOUVRE

Non Dimmable DALI Dimmable Casambi Dimmable BEAM ANGLE CCT CRI Lumens Watts
NFS414W.250.AS.93.61 NFS414W.250.AS.93.66 NFS414W.250.AS.93.68 ASYMMETRIC 3000K 90+ 775 11
NFS414W.250.AS.94.61 NFS414W.250.AS.94.66 NFS414W.250.AS.94.68 ASYMMETRIC 4000K 90+ 814 11
Non Dimmable DALI Dimmable Casambi Dimmable BEAM ANGLE CCT CRI Lumens Watts
NFS414W.350.AS.93.61 NFS414W.350.AS.93.66 NFS414W.350.AS.93.68 ASYMMETRIC 3000K 90+ 1066 14
NFS414W.350.AS.94.61 NFS414W.350.AS.94.66 NFS414W.350.AS.94.68 ASYMMETRIC 4000K 90+ 1119 14
Non Dimmable DALI Dimmable Casambi Dimmable BEAM ANGLE CCT CRI Lumens Watts
NFS414W.400.AS.93.61 NFS414W.400.AS.93.66 NFS414W.400.AS.93.68 ASYMMETRIC 3000K 90+ 1328 18
NFS414W.400.AS.94.61 NFS414W.400.AS.94.66 NFS414W.400.AS.94.68 ASYMMETRIC 4000K 90+ 1395 18

For more details, download the NIGHTFALL 414 SURFACE MOUNT ASYMMETRIC Information Sheet
