Overview

1002 IP DOWNLIGHT

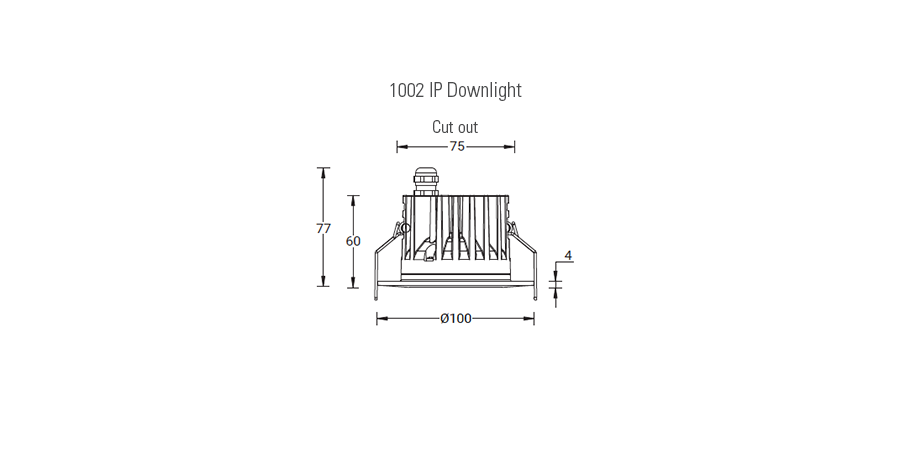

1002 IP Downlight Line Drawing

Lighting Effects

1002 IP DOWNLIGHT Lighitng Effects 1002 IP DOWNLIGHT Lighitng Effects

Product Details

  • IP65 Rated
  • Suitable for use in bathrooms
  • Die cast aluminium trim, powdercoated white
  • Clear glass lens
  • 3000K or 4000K
  • Ceiling mounted without tools

Colour Finish

  • white WH

Codes & Downloads

1002 IP

Non Dimmable Trailing Edge Dimmable DALI Dimmable Beam CCT Lumens Watts
1002.350.30.83.61 1002.350.30.83.63 1002.350.30.83.66 30° 3000K 793 9
1002.350.30.84.61 1002.350.30.84.63 1002.350.30.84.66 30° 4000K 867 9
1002.500.30.84.61 1002.500.30.84.63 1002.500.30.84.66 30° 3000K 1073 12.5
1002.500.30.84.61 1002.500.30.84.63 1002.500.30.84.66 30° 4000K 1191 12.5

For more details, download the 1002 IP Downlight Information Sheet

Download the IES file for the 1002 IP Downlight
