Overview
Product Description

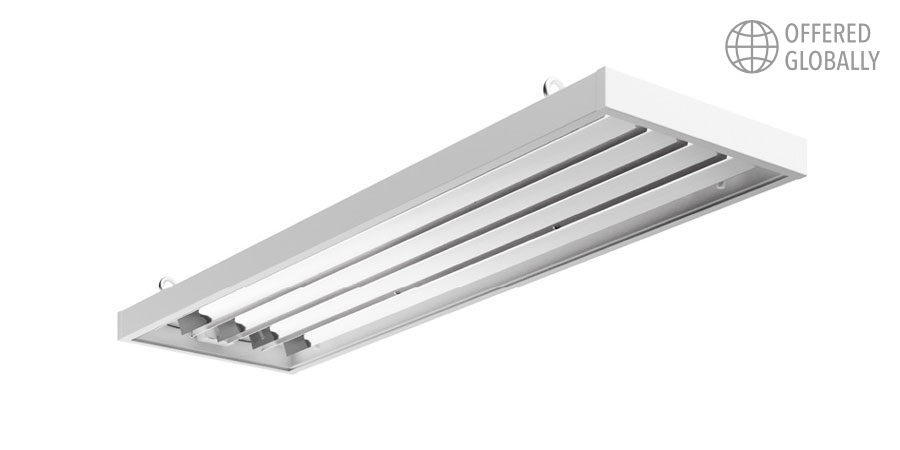

Designed and made in Australia with an IP65 and IK10 rating the Titan hi-bay is built to perform.
Offering exceptional efficacy and unprecedented flexibility in size, output and distribution this amazing luminaire is perfect not only for warehouse and industrial applications but also high contact installations such as sports halls.
Product Details
| Absolute luminous flux | 22042 lm / 33311 lm |
| System watts | 144W / 179W / 214W |
| Luminaire efficacy | Up to 161 lm/w |
| Colour deviation | 3 Step MacAdam |
| Colour rendition Index | >80 |
| Correlated colour temperature | 3000K / 4000K |
| Lumen maintenance | L90/B10 @ 70,000 hrs |
| Dimming method | DALI |
| Driver | Remote |
| Optic | Aluminium |
| Beam Angle | 30° / 90° / Asymmetric |
| Luminaire housing material | Zinc Steel |
| Luminaire housing colour | Black / White / Custom |
| Custom body finishes | Custom power coated colour |
| IP rating | IP65 / IP20 |
| IK Rating | IK10 |
| Country of origin | Australia |
| Warranty | 7 years |
Custom Luminaire Modifications
5000K & 6500K
Accessories
| SURFACE MOUNTED KIT | TN2. SURF.KIT |
| RECESSING KIT | TN2. REC.KIT |
Optional Emergency Version
| PRODUCT CODE FOR IP VERSION | TN4.900.90.84.61.IP.ME |
| PRODUCT CODE FOR NON-IP VERSION | TN4.900.90.84.61.ME |
CLASSIFICATIONS:
| PHOTOMETRIC TEST REPORT | LL25249A |
| ENDURANCE (THERMAL) TEST REPORT | LL2223505T |
| C0, C180 = B80 | |
| C90 , C270 = C500 |
Product Variants
HOW TO SPECIFY
WATTAGES + OUTPUTS LISTED FOR 4000K 90° VERSIONS
For more details, download the TITAN4 | HI-BAY Information Sheet
