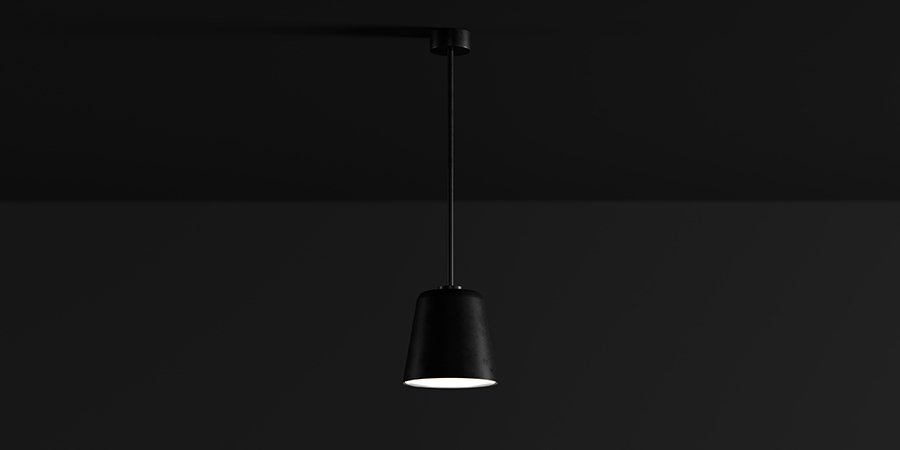

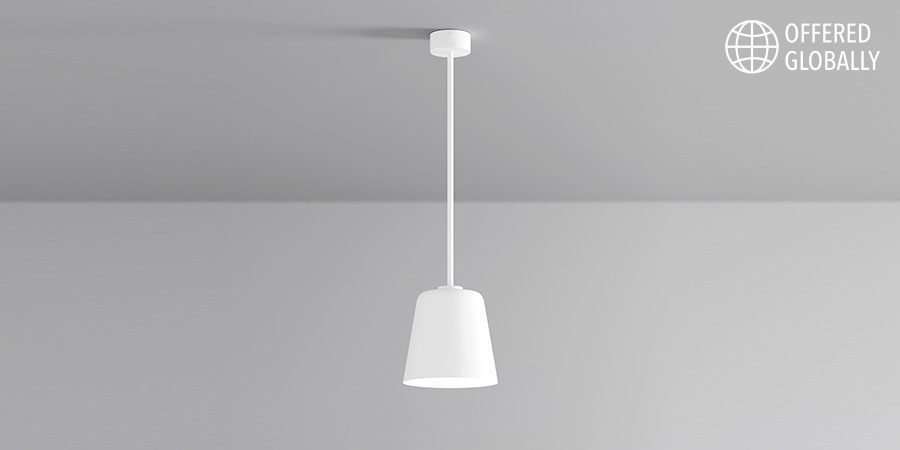

Circulite 180 Suspended

Product Description

A new addition to the popular Circulite Range, the Circulite 180 Suspended is one of the most versatile luminaires designed and made by ELS. Simple, clean lines of the circular presentation make it a beautiful option where lighting performance is as important as the room aesthetic.

The Circulite 180 Suspended is available with Variable Output Technology and is finished in ELS standard powdercoat colours or can be finished asper specification.

Product Details

Absolute luminous flux 757lm – 1100lm
System watts 9W / 13W
Luminaire efficacy up to 87lm/W
Colour deviation 3 SDCM
Colour rendition Index >90
Correlated colour temperature 3000K / 4000K
Lumen maintenance L80B10 72,000hours
Dimming method Trailing edge / DALI / Casambi
Lens  Opal
Luminaire housing Aluminium
Luminaire housing colour Black / White / Silver / Custom

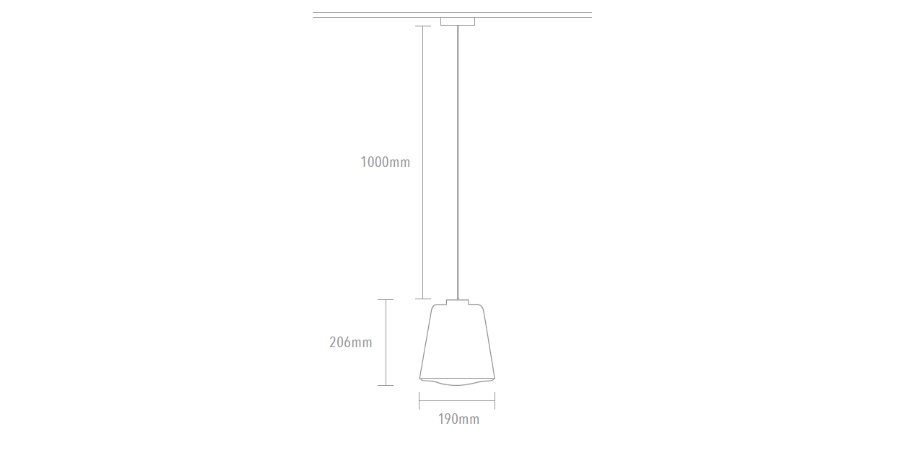

Suspension 1000mm rod suspended
Country of origin Australia

Codes & Downloads

Non Dimmable Trailing Edge Dimmable DALI Dimmable Casambi Dimmable CCT Lumens Watts
CL180.250.93.61 p CL180.250.93.63 p CL180.250.93.66 p CL180.250.93.68 p 3000K 757 9
CL180.250.94.61 p CL180.250.94.63 p CL180.250.94.66 p CL180.250.94.68 p 4000K 789 9
CL180.350.93.61 p CL180.350.93.63 p CL180.350.93.66 p CL180.350.93.68 p 3000K 1055 13
CL180.350.94.61 p CL180.350.94.63 p CL180.350.94.66 p CL180.350.94.68 p 4000K 1100 13

For more details, download the CIRCULITE 180 SUSPENDED Information Sheet
