FLEX 100 MINI PENDANT | LENS

Overview

Product Description

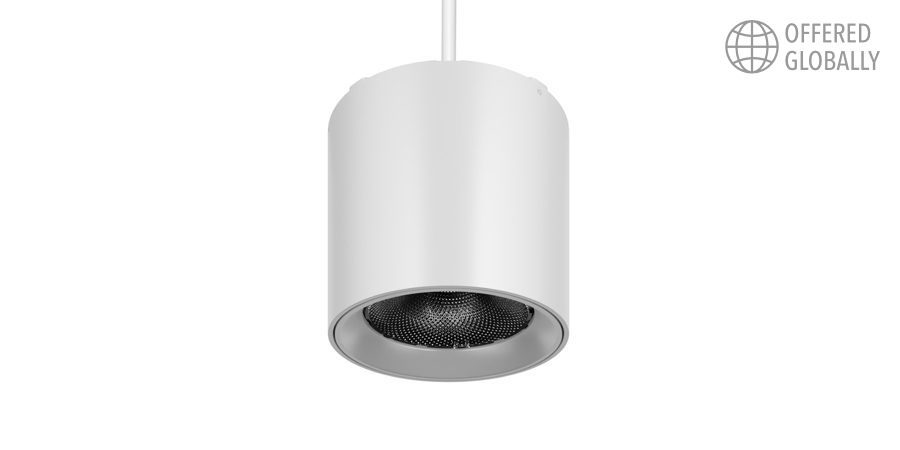

Flex by name and Flex by design. The Flex 100 Mini Pendant luminiare is one of the smallest surface pendant luminaires available in the ELS range.

Presenting in a miniature size, the Flex 100 Mini Pendant features optics that ensure exceptional glare control, a cornerstone of ELS’s design philosophy. It also features a large baffle for extra visual comfort

It is available with variable output technology to optimise performance to exact project requirements.

Product Details

Absolute luminous flux 743lm – 1209lm
System watts8W / 10W / 12W / 14W
Luminaire efficacyup to 93lm/W
Colour deviation2 SDCM
Colour rendition Index>95
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL90B10 90,000hours
Dimming methodNon dimm / Trailing Edge / DALI / Casambi
Optic PMMA Clear Lens
Beam angle13° / 25° / 34° / 54° / 80°
DriverIntegral for non dim & DALI / Remote for Casambi
Luminaire housingAluminium Powdercoated
Luminaire housing colourBlack / White / Custom
Luminaire baffle colourBlack / White / Custom
Custom body finishesCustom powdercoat colour
SuspensionClear flex 1m
Country of origin Australia
Warranty7 years

Optional Accessories

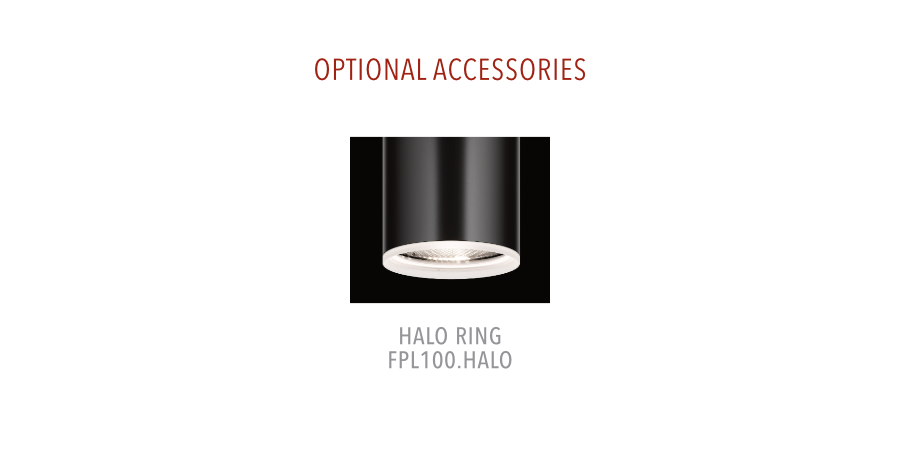

HALO RING
FPL100.HALO

A discreet glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

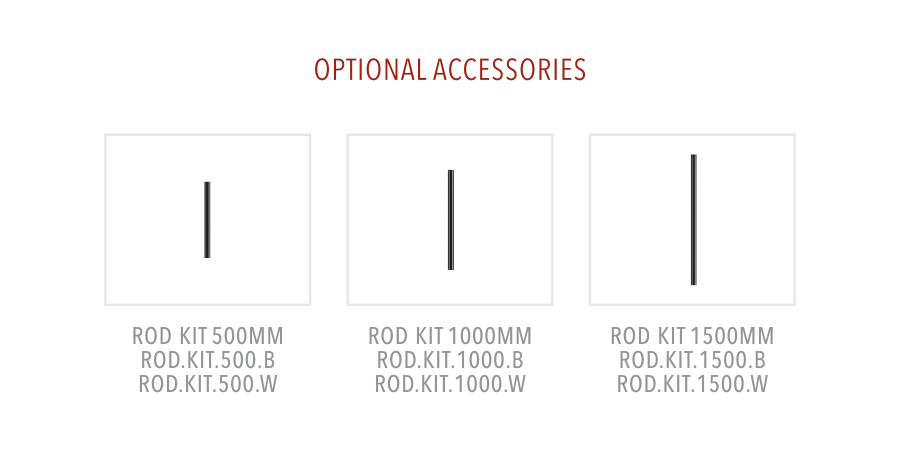

ROD KIT 500MM
ROD.KIT.500.B
ROD.KIT.500.W

An optional rod suspension kit to suit the Flex pendant range.Comes complete with 500mm rod and ceiling rose

ROD KIT 1000MM
ROD.KIT.1000.B
ROD.KIT.1000.W

An optional rod suspension kit to suit the Flex pendant range.Comes complete with 1000mm rod and ceiling rose

ROD KIT 1500MM
ROD.KIT.1500.B
ROD.KIT.1500.W

An optional rod suspension kit to suit the Flex pendant range.Comes complete with 1500mm rod and ceiling rose

Optional Cloth Flex

3 CORE OR 5 CORE

BLACK
3C.BLK
5C.BLK
GOLD
3C.GO
5C.GO
WHITE
3C.WH
5C.WH

3 CORE ONLY

YELLOW
3C.YL
ORANGE
3C.OR
RED
3C.RD
EMERALD
3C.EM
LIGHT BLUE
3C.LB

Custom Luminaire Modifications

RGBW (remote driver)
White tunable (remote driver)

Product Variants
HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

RGBW

Select from the available options to configure luminaire

For more details, download the FLEX 100 MINI PENDANT | LENS Information Sheet

Download the IES files for FLEX 100 MINI PENDANT | LENS
