Overview
Product Description

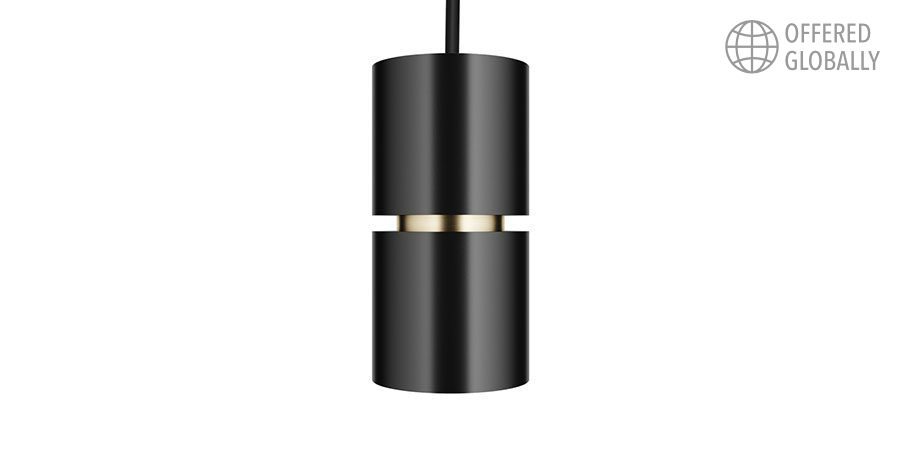

Flex by name and Flex by design. The Flex 70 Double Pendant luminiare is the newest member to the Flex luminaire family.
Presenting a sleek minimalist style, the Flex 70 Pendant Double features up down illumination with optics that ensure exceptional glare control, a cornerstone of ELS’s design philosophy. It is available with variable output technology to optimise performance to exact project requirements and a range of optics.
Product Details
Absolute luminous flux | 824lm – 1707m |
System watts | 8W / 12W / 14W |
Luminaire efficacy | up to 113lm/W |
Colour deviation | 2 SDCM |
Colour rendition Index | >95 |
Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
Lumen maintenance | L90B10 90,000hours |
Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
Optic | PMMA Clear Lens |
Beam angle | 13° / 25° / 34° / 54° / Oval / Forward Throw / Linear / Zoom |
Driver | Remote – to be installed in ceiling cavity |
Luminaire housing | Aluminium Powdercoated |
Luminaire housing colour | Black / White / Custom |
Luminaire baffle colour | Black |
Custom body finishes | Custom powdercoat colour |
Suspension | Clear flex 1m |
Country of origin | Australia |
Custom Luminaire Modifications
RGBW (remote driver)
White tunable (remote driver)
Horticultural version – Bloom / Leaf
Optional Accessories
![](https://elslighting.com.au/wp-content/uploads/2022/09/Accessories_Honeycomb-Louvre.jpg)
FFL70.HONEYCOMB
![](https://elslighting.com.au/wp-content/uploads/2022/09/Accessories_Specialty-Colour-Filter.jpg)
FFL70.COLOUR.XXX
Optional Cloth Flex
3 CORE OR 5 CORE
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Black.jpg)
3C.BLK
5C.BLK
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Gold.jpg)
3C.GO
5C.GO
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_White.jpg)
3C.WH
5C.WH
3 CORE ONLY
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Yellow.jpg)
3C.YL
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Orange.jpg)
3C.OR
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Red.jpg)
3C.RD
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Emerald.jpg)
3C.EM
![](https://elslighting.com.au/wp-content/uploads/2022/09/ClothFlex_Light-Blue.jpg)
3C.LB
Custom Finishes
![](https://elslighting.com.au/wp-content/uploads/2022/09/FLEX70_DOUBLE_WALL-Finishes-Gold-Feature.jpg)
![](https://elslighting.com.au/wp-content/uploads/2022/09/FLEX70_DOUBLE_WALL-Finishes-Copper-Feature.jpg)
![](https://elslighting.com.au/wp-content/uploads/2022/09/FLEX70_DOUBLE_WALL-Finishes-Custom-Feature.jpg)
Product Variants
FIXED CCT
Select from the available options to configure luminaire
![FLEX70_DOUBLEPENDANT-Fixed-CCT](https://elslighting.com.au/wp-content/uploads/2022/11/FLEX70_DOUBLEPENDANT-Fixed-CCT.png)
TUNABLE WHITE
Select from the available options to configure luminaire
![FLEX70_DOUBLEPENDANT-TUNABLE WHITE](https://elslighting.com.au/wp-content/uploads/2022/11/FLEX70_DOUBLEPENDANT-TW.png)
RGBW
Select from the available options to configure luminaire
![FLEX70_DOUBLEPENDANT-RGBW](https://elslighting.com.au/wp-content/uploads/2022/11/FLEX70_DOUBLEPENDANT-RGBW.png)
For more details, download the FLEX 70 MINI PENDANT DOUBLE | LENS Information Sheet
