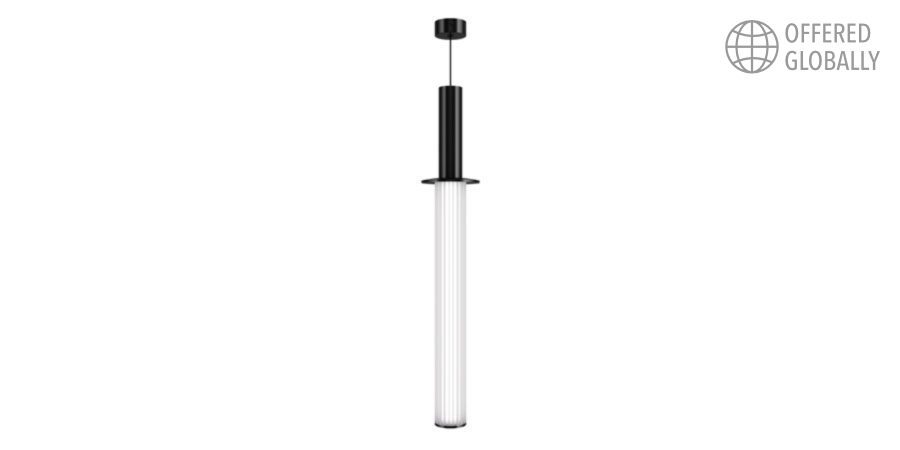

FLUTE PENDANT 610 | VERTICAL

Overview

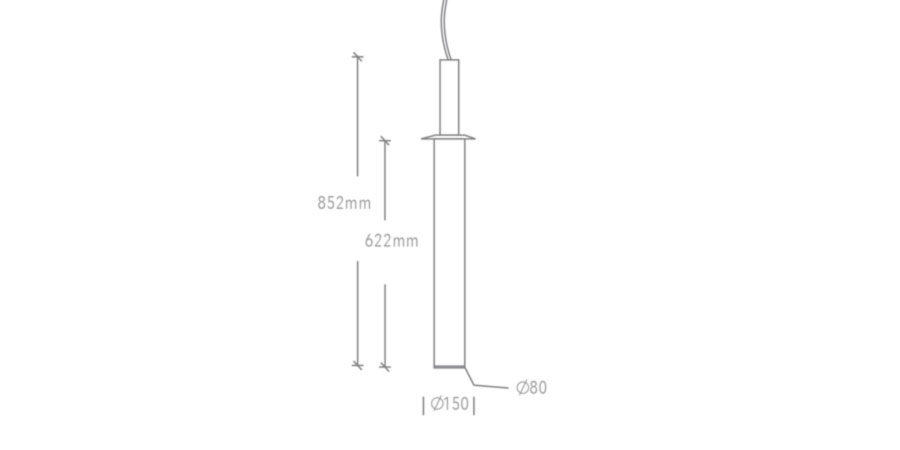

FLUTE PENDANT 610 diagram
FLUTE PENDANT 410 insitu

Product Description

The Flute Pendant luminiares offer a versatile high performance pendant with all the style of the Art Deco era.

Presenting a sleek minimalist style, the Flute Pendant luminaire features the highest quality German manufactured fluted glass combined with Australian made hardware to provide not only a product that looks the part but also performs exceptionally well; a cornerstone of ELS’s design and manufacturing philosophy.

Product Details

Absolute luminous flux 1743lm
System watts25W
Colour deviation3 SDCM
Colour rendition Index>90
Correlated colour temperature2700K / 3000K / 4000K
Lumen maintenanceL80B10 72,000hours
Dimming methodNon dimm / DALI / Casambi
DriverIntegral in luminaire
Luminaire housingAluminium Powdercoated
Luminaire diffuserFluted cylindrical glass / Cylindrical polycarbonate
Colour finishBlack / White / Gold
Custom body finishesCustom powdercoat colour
SuspensionClear suspension – standard 1m
Country of origin Australia
Warranty 7 years

Custom Luminaire Modifications

Diffuser Options

FLUTED GLASS
OPAL POLYCARB

Optional Cloth Flex

3 CORE OR 5 CORE

BLACK
3C.BLK
5C.BLK
GOLD
3C.GO
5C.GO
WHITE
3C.WH
5C.WH

3 CORE ONLY

YELLOW
3C.YL
ORANGE
3C.OR
RED
3C.RD
EMERALD
3C.EM
LIGHT BLUE
3C.LB

Optional Rod Suspension Kit

ROD KIT 500MM
ROD.KIT.500.BL
ROD.KIT.500.WH
ROD KIT 1000MM
ROD.KIT.1000.BL
ROD.KIT.1000.WH
ROD KIT 1500MM
ROD.KIT.1500.BL
ROD.KIT.1500.WH

Product Variants
HOW TO SPECIFY

Select from the available options to configure luminaire

For more details, download the FLUTE PENDANT 610 Information Sheet

Download the IES files for FLUTE PENDANT 610
