FLEX 100 MINI TRACK DOWNLIGHT | LENS

Overview

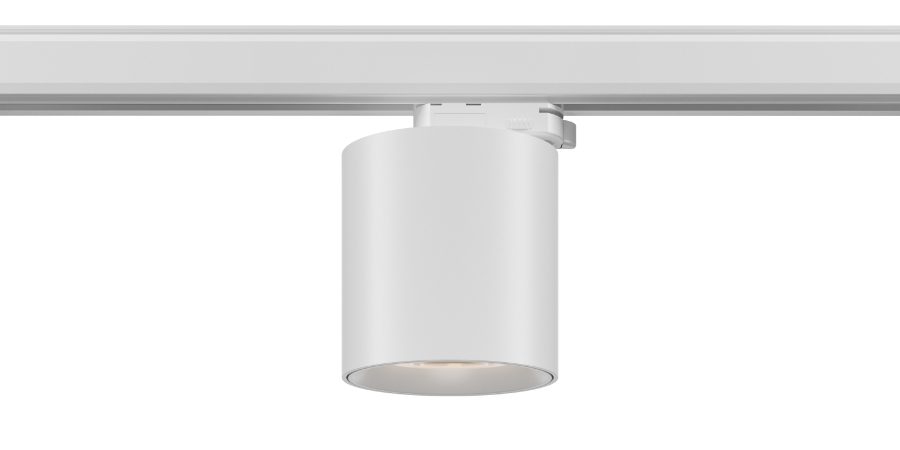

FTL100M FLEX 100 MINI TRACK DOWNLIGHT Hero White

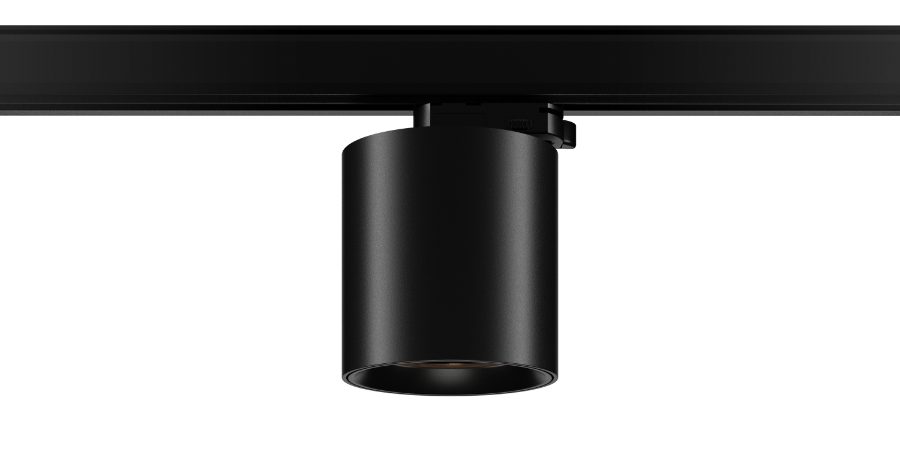

FTL100M FLEX 100 MINI TRACK DOWNLIGHT Hero Black
Accessories_Monopoint

Product Description

Flex by name and Flex by design. The Flex 100 Mini Track Downlight luminaire is the newest member of the Flex Range.

Flexible, movable lighting has become an integral part of modern interior design and multi functional spaces. The Flex 100 Mini Track Downlight provides all the features of a recessed or surface mounted luminaire while providing optimum flexibility and longevity of a space.

Featuring optics that ensure exceptional glare control, a swathe of accessories and variable output technology to optimise performance the Flex 100 Mini Track Downlight is the perfect choice for modern flexible interiors.

Product Details

Absolute luminous flux 743lm – 1500lm
System watts8W / 10W / 12W / 14W / 16W / 18W
Luminaire efficacyup to 93lm/W
Colour deviation3 SDCM
Colour rendition Index>90
Correlated colour temperature2700K / 3000K / 3500K / 4000K
Lumen maintenanceL90B10 90,000hours
Dimming methodNon dimm / DALI / Casambi
Optic PMMA Clear Lens
Beam angle13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear
DriverIntegral
Luminaire housingAluminium Powdercoated
Luminaire housing colourBlack / White / Custom
Luminaire baffle colourBlack / Custom
Custom body finishesCustom powdercoat colour
Country of origin Australia
Warranty 7 years

Optional Accessories

HALO RING
FPL100.HALO

A discreet glowing ring attachment that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

MONOPOINT
MONO.BLK
MONO.WH

Monopoint surface mount adapter. Suited to non dimmable and DALI dimmable versions.

140mm dia x 35mm deep

BLACK BAFFLE
WHITE BAFFLE

Product Variants

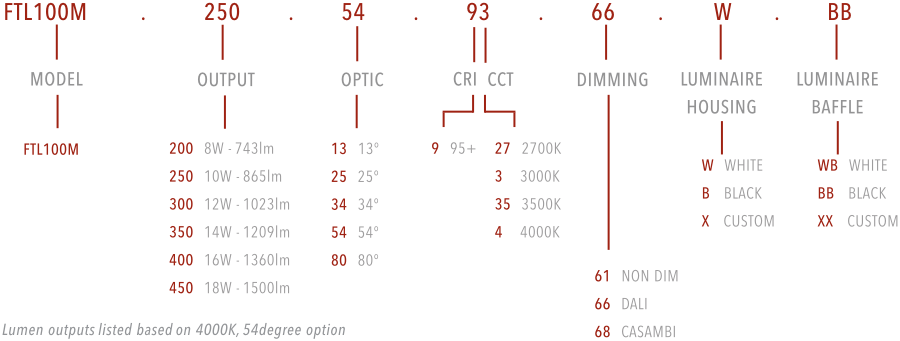

HOW TO SPECIFY

FIXED CCT

Select from the available options to configure luminaire

For more details, download the FLEX 100 MINI TRACK DOWNLIGHT | LENS Information Sheet

Download the IES files for FLEX 100 MINI TRACK DOWNLIGHT | LENS
