Overview
Product Description

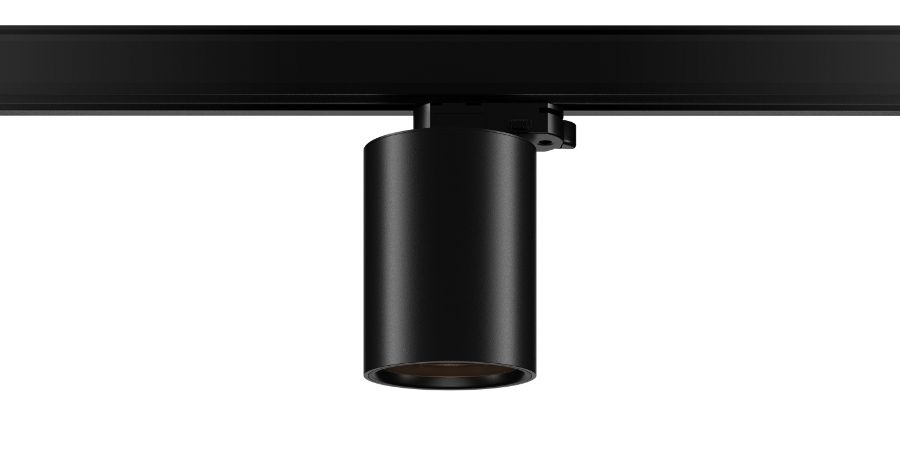

Flex by name and Flex by design. The Flex 70 Mini Track Downlight luminaire is the newest member of the Flex Range.
Flexible, movable lighting has become an integral part of modern interior design and multi functional spaces. The Flex 70 Mini Track Downlight provides all the features of a recessed or surface mounted luminaire while providing optimum flexibility and longevity of a space.
Featuring optics that ensure exceptional glare control, a swathe of accessories and variable output technology to optimise performance the Flex 70 Mini Track Downlight is the perfect choice for modern flexible interiors.
Product Details
Absolute luminous flux | 743lm – 1209lm |
System watts | 8W / 10W / 12W / 14W |
Luminaire efficacy | up to 93lm/W |
Colour deviation | 3 SDCM |
Colour rendition Index | >90 |
Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
Lumen maintenance | L90B10 90,000hours |
Dimming method | Non dimm / DALI / Casambi |
Optic | PMMA Clear Lens |
Beam angle | 13° / 25° / 34° / 54° / 80° / Oval / Asymmetric / Linear |
Driver | Integral |
Luminaire housing | Aluminium Powdercoated |
Luminaire housing colour | Black / White / Custom |
Luminaire baffle colour | Black / Custom |
Custom body finishes | Custom powdercoat colour |
Country of origin | Australia |
Warranty | 7 years |
Optional Accessories

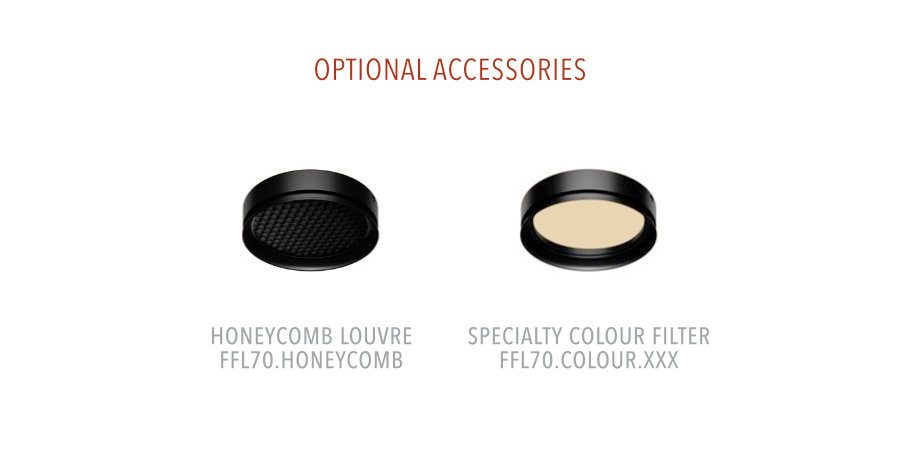

FFL70.HONEYCOMB
Used to provide additional glare control in sensitive areas. Easily installed by placing behind the luminaire baffle.

FFL70.COLOUR.XXX
High quality borosilicate glass filters for premium colourfast performance. Available in a selection of colours. Easily installed by placing behind the luminaire baffle.

FPL70.XLB
A deep 17mm baffle to provide extra visual comfort in sensititve areas. Supplied in black as standard. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

FPL70.HALO
A discreet 7mm glowing ring attachement that emits a soft glowing light. Supplied in place of the standard baffle. Easily retrofitted by removing the existing baffle.

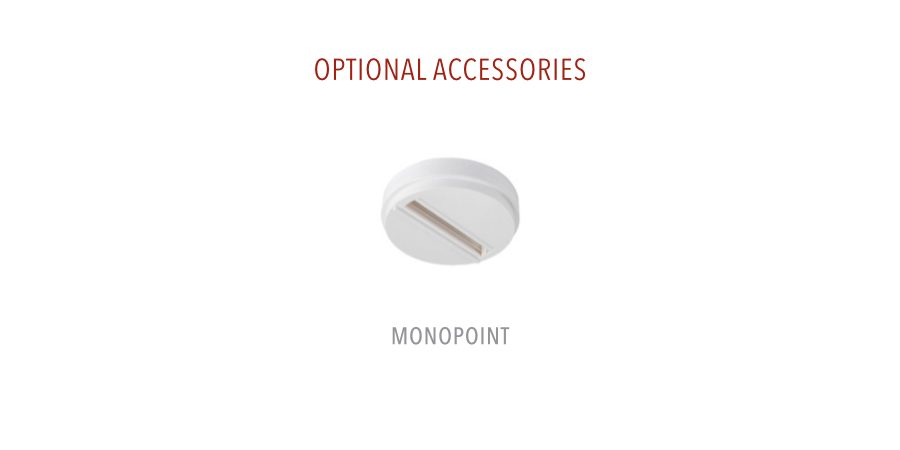

MONO.BLK
MONO.WH
Monopoint surface mount adapter. Suited to non dimmable and DALI dimmable versions.
140mm dia x 35mm deep
Product Variants

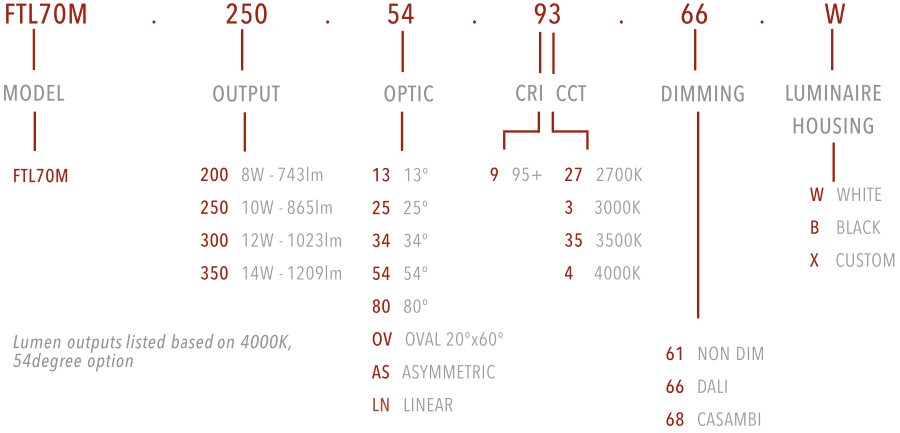

HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire

For more details, download the FLEX 70 MINI TRACK DOWNLIGHT | LENS Information Sheet
Download the IES files for FLEX 70 MINI TRACK DOWNLIGHT | LENS
