Overview
Product Description

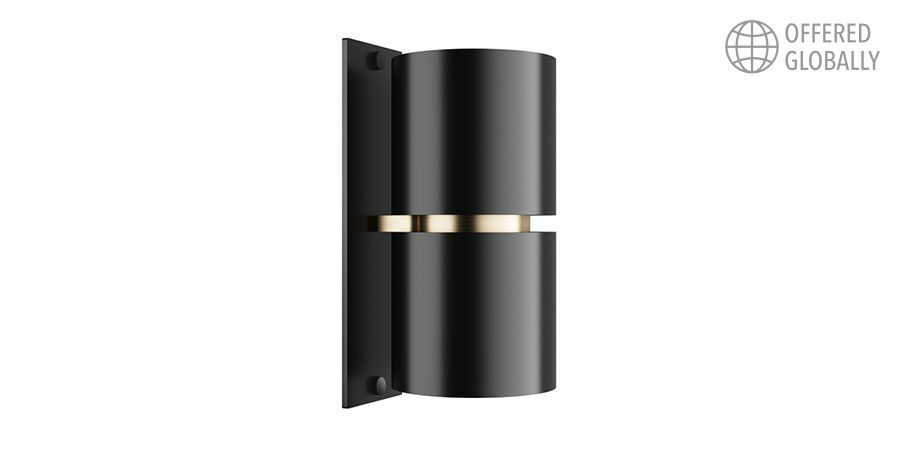

Flex by name and Flex by design. The Flex 70 Double Wall luminiare is the newest member to the Flex luminaire family.
Presenting a sleek minimalist style, the Flex 70 Wall Double features optics that ensure exceptional glare control a cornerstone of ELS’s design philosophy. It is available with variable output technology to optimise performance to exact project requirements and a range of optics.
Product Details
Absolute luminous flux | 824lm – 1707m |
System watts | 8W / 12W / 14W |
Luminaire efficacy | up to 113lm/W |
Colour deviation | 2 SDCM |
Colour rendition Index | >95 |
Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
Lumen maintenance | L90B10 90,000hours |
Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
Optic | PMMA Clear Lens |
Beam angle | 20° / 25° / 34° / 54° / Oval / Forward Throw / Linear / Zoom |

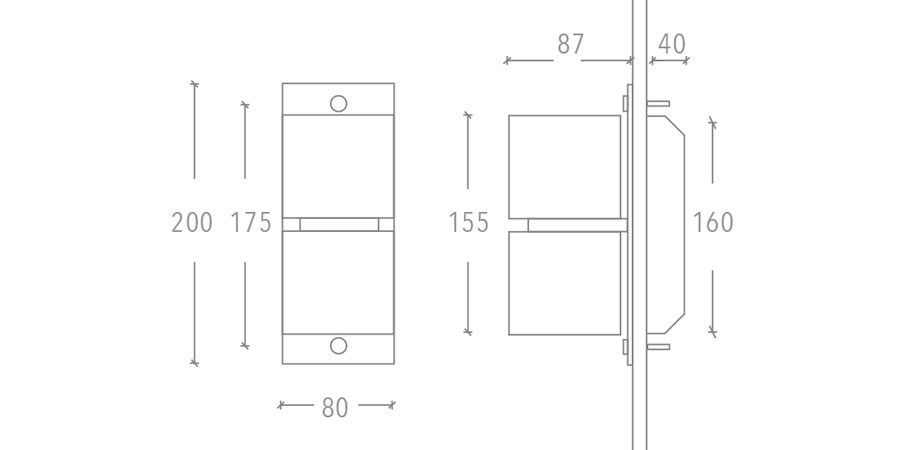

Driver | Remote – located in wall cavity |
Luminaire housing | Aluminium Powdercoated |
Luminaire housing colour | Black / White / Custom |
Luminaire baffle colour | Black |
Custom body finishes | Custom powdercoat colour |
Country of origin | Australia |
Custom Luminaire Modifications
RGBW (remote driver)
White tunable (remote driver)
Horticultural version – Bloom/ Leaf
Optional Accessories
![](https://elslighting.com.au/wp-content/uploads/2022/09/Accessories_Honeycomb-Louvre.jpg)
FFL70.HONEYCOMB
![](https://elslighting.com.au/wp-content/uploads/2022/09/Accessories_Specialty-Colour-Filter.jpg)
FFL70.COLOUR.XXX
Custom Finishes
![](https://elslighting.com.au/wp-content/uploads/2022/09/FLEX70_DOUBLE_WALL-Finishes-Gold-Feature.jpg)
![](https://elslighting.com.au/wp-content/uploads/2022/09/FLEX70_DOUBLE_WALL-Finishes-Copper-Feature.jpg)
![](https://elslighting.com.au/wp-content/uploads/2022/09/FLEX70_DOUBLE_WALL-Finishes-Custom-Feature.jpg)
Product Variants
HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
![FLEX70_DOUBLE_WALL-Fixed-CCT](https://elslighting.com.au/wp-content/uploads/2022/11/FLEX70_DOUBLE_WALL-Fixed-CCT.png)
TUNABLE WHITE
Select from the available options to configure luminaire
![FLEX70_DOUBLE_WALL-TUNABLE WHITE](https://elslighting.com.au/wp-content/uploads/2022/11/FLEX70_DOUBLE_WALL-TW.png)
RGBW
Select from the available options to configure luminaire
![FLEX70_DOUBLE_WALL-RGBW](https://elslighting.com.au/wp-content/uploads/2022/11/FLEX70_DOUBLE_WALL-RGBW.png)
For more details, download the FLEX WALL | DOUBLE DIRECTION Information Sheet
