Overview
Product Description

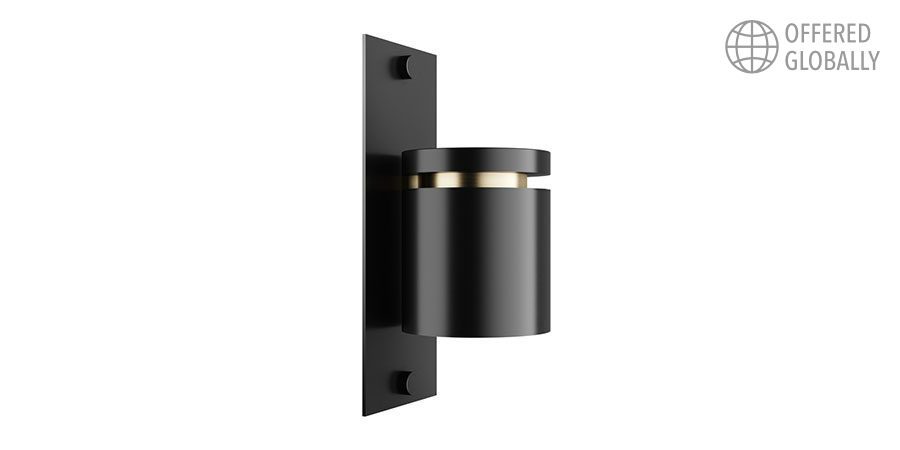

Flex by name and Flex by design. The Flex 70 Single Wall luminiare is the newest member to the Flex luminaire family.
Presenting a sleek minimalist style, the Flex 70 Wall Single features optics that ensure exceptional glare control a cornerstone of ELS’s design philosophy. It is available with variable output technology to optimise performance to exact project requirements and a range of optics
Product Details
| Absolute luminous flux | 824lm – 1115m |
| System watts | 8W / 10W / 12W |
| Luminaire efficacy | up to 113lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | >95 |
| Correlated colour temperature | 2700K / 3000K / 3500K / 4000K |
| Lumen maintenance | L90B10 90,000hours |
| Dimming method | Non dimm / Trailing Edge / DALI / Casambi |
| Optic | PMMA Clear Lens |
| Beam angle | 20° / 25° / 34° / 54° / Oval / Forward Throw / Linear / Zoom |

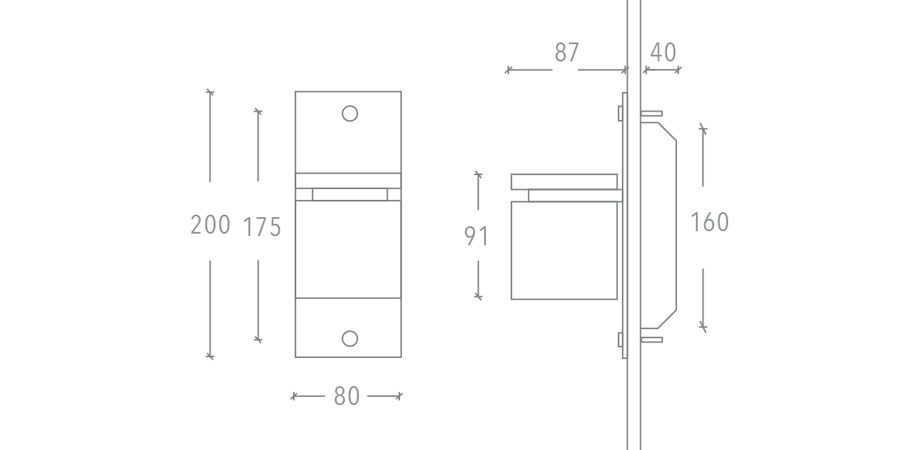

| Driver | Remote – located in wall cavity |
| Luminaire housing | Aluminium Powdercoated |
| Luminaire housing colour | Black / White / Custom |
| Luminaire baffle colour | Black |
| Custom body finishes | Custom powdercoat colour |
| Country of origin | Australia |
Custom Luminaire Modifications
RGBW (remote driver)
White tunable (remote driver)
Horticultural version – Bloom/ Leaf
IPX4
Custom Finishes
Optional Accessories
FFL70.HONEYCOMB
FFL70.COLOUR.XXX
Product Variants
HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
TUNABLE WHITE
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the FLEX WALL | SINGLE DIRECTION Information Sheet
