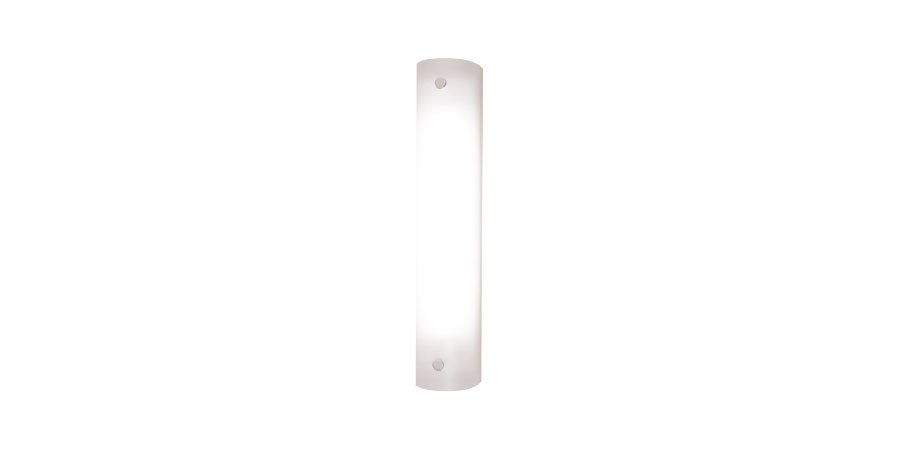

ROYALE WALL LIGHT

Overview

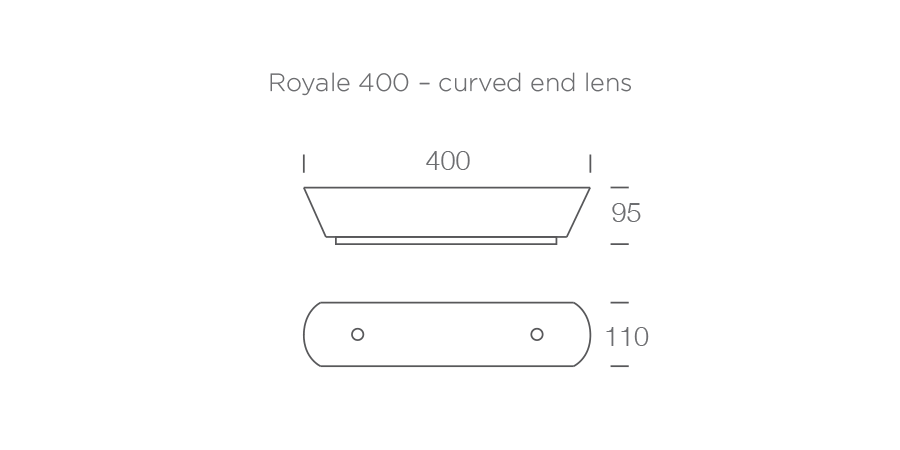

ROYALE 400 Curve Lens diagram

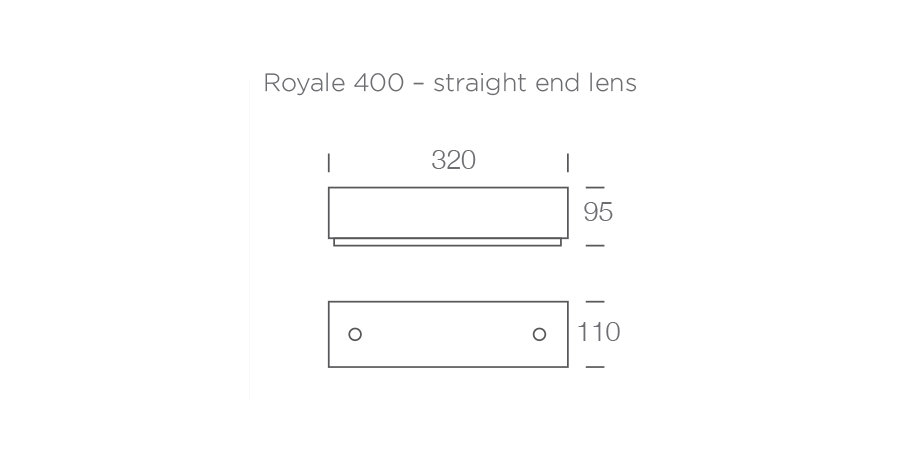

ROYALE 400 Straight Lens diagram

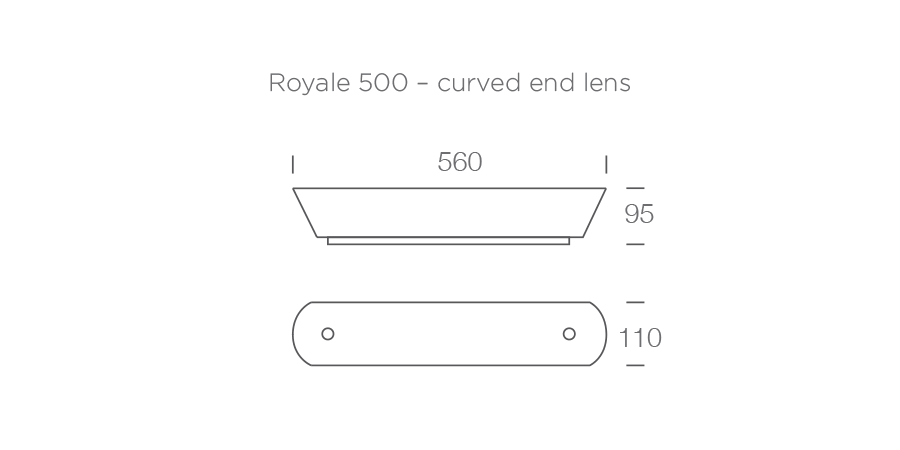

ROYALE 500 Curve Lens diagram

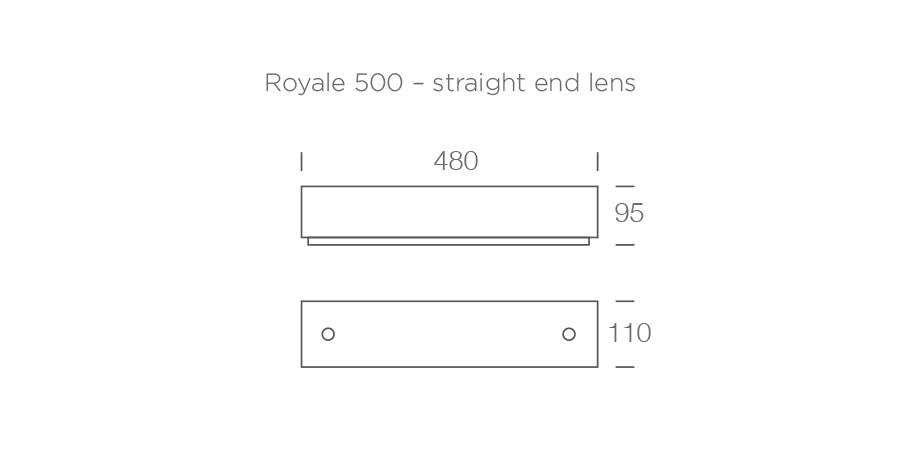

ROYALE 500 Straight Lens diagram

Product Details

  • Suitable for wall mounting – horizontal or vertical
  • 3000K or 4000K
  • High output satin opal acrylic lens specifically designed for use with LED
  • Curved end lens or straight end lens
  • Chrome lens retainers
  • IPX4 version available
  • Made in Australia

Codes & Downloads

RY400 LED

Electronic Non Dimmable & Trailing Edge Dimmable CCT Lumens Watts
Curved End Lens Straight End Lens
RYC400.13.3000.61.SOA RYS400.13.3000.61.SOA 3000K 946 13
RYC400.13.4000.61.SOA RYS400.13.4000.61.SOA 4000K 1100 13

RY500 LED

Electronic Non Dimmable & Trailing Edge Dimmable CCT Lumens Watts
Curved End Lens Straight End Lens
RYC500.25.3000.61.SOA RYS500.25.3000.61.SOA 3000K 1788 25
RYC500.25.4000.61.SOA RYS500.25.4000.61.SOA 4000K 1950 25

For more details, download the ROYALE WALL LIGHT Information Sheet

Download the IES file for the ROYALE WALL LIGHT
