Codes & Downloads
RY400 LED
Electronic Non Dimmable & Trailing Edge Dimmable |
CCT |
Lumens |
Watts |

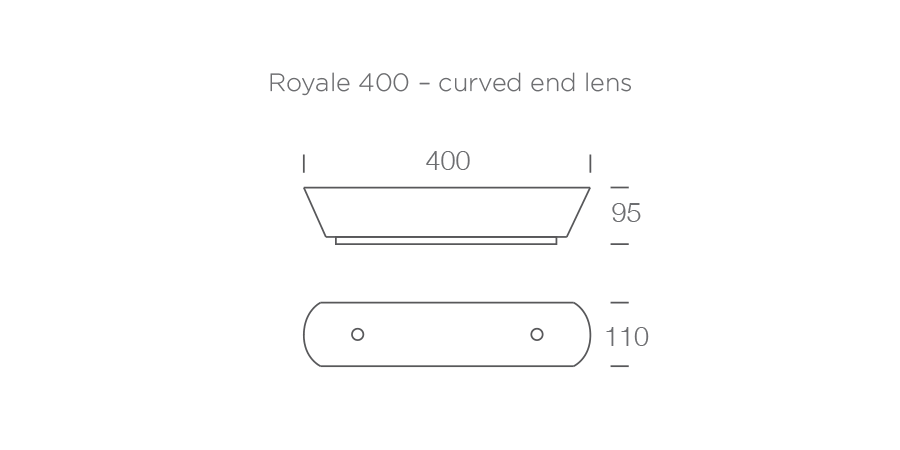

Curved End Lens |

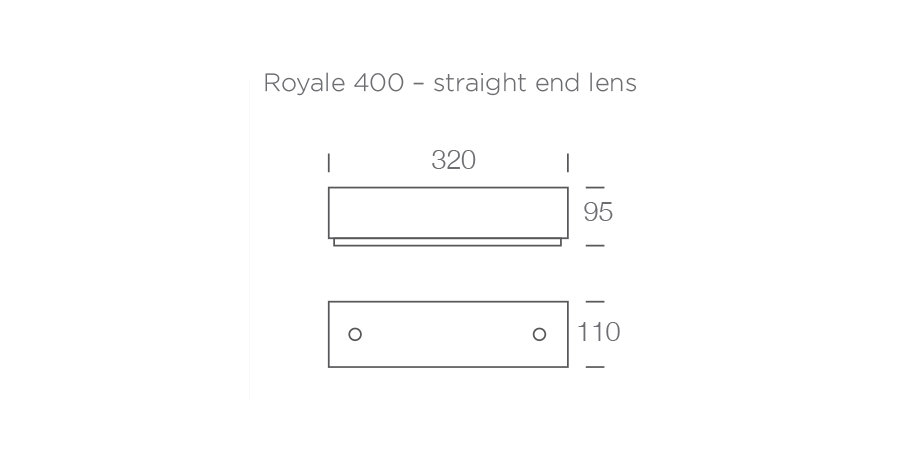

Straight End Lens |
RYC400.13.3000.61.SOA |
RYS400.13.3000.61.SOA |
3000K |
946 |
13 |
RYC400.13.4000.61.SOA |
RYS400.13.4000.61.SOA |
4000K |
1100 |
13 |
RY500 LED
Electronic Non Dimmable & Trailing Edge Dimmable |
CCT |
Lumens |
Watts |

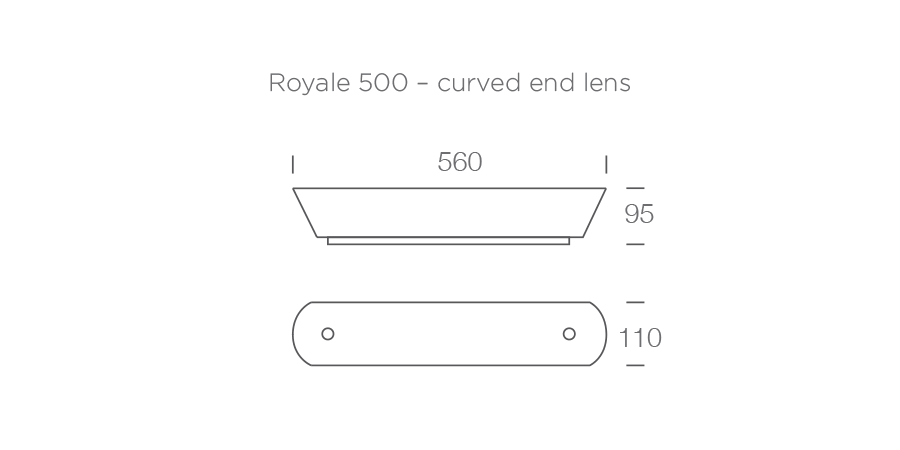

Curved End Lens |

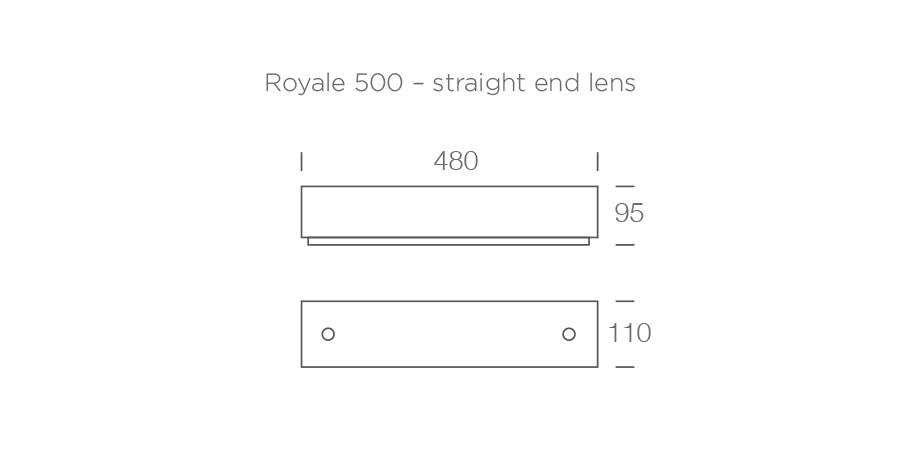

Straight End Lens |
RYC500.25.3000.61.SOA |
RYS500.25.3000.61.SOA |
3000K |
1788 |
25 |
RYC500.25.4000.61.SOA |
RYS500.25.4000.61.SOA |
4000K |
1950 |
25 |
For more details, download the ROYALE WALL LIGHT Information Sheet
Download the IES file for the ROYALE WALL LIGHT
