Overview
Product Description

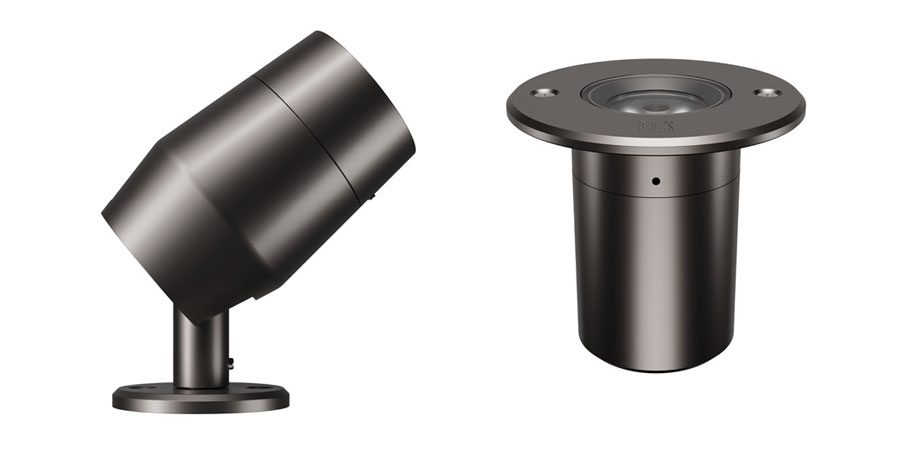

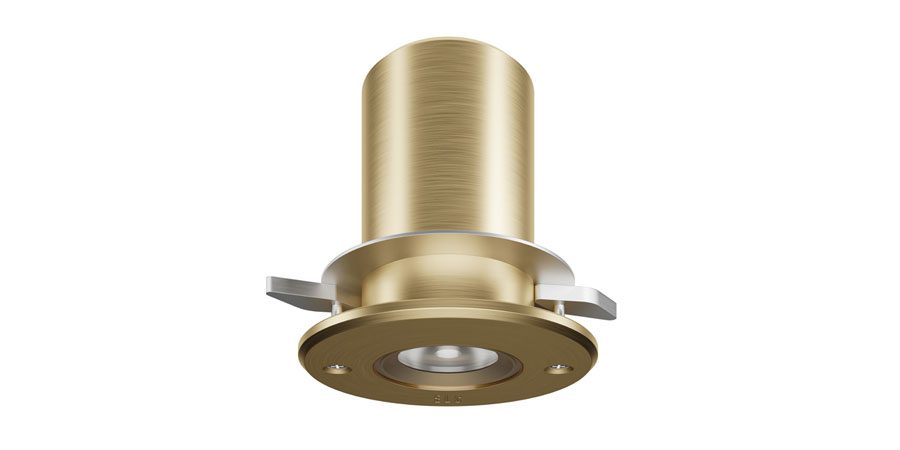

Designed and manufactured in Australia to withstand the harsh Australian conditions the Iconic downlight luminaire is IP66 rated.
Presenting a sleek miniature style, the Iconic downlight features a variety of optics, accessories and outputs. Whether illuminating a walkway or portico the Iconic downlight is perfect for the job.
Product Details
| Absolute luminous flux | 357lm – 755lm |
| System watts | 6W / 8W / 11W |
| Luminaire efficacy | up to 74lm/W |
| Colour deviation | 2 SDCM |
| Colour rendition Index | 80+ |
| Correlated colour temperature | Amber/ 2700K / 3000K / 4000K / RGBW |
| Lumen maintenance | L90 87,000hours |
| Dimming method | Non dimm / DALI / DMX |
| Optic | PMMA Clear Lens |
| Beam angle | 8° / 14° / 22° / 40° /Asymmetric / Linear / Oval |
| Luminaire housing | Aluminium |
| Luminaire housing colour | Clear anodised / Gunmetal anodised / Gold anodised |
| Custom body finishes | Custom powdercoat colour |
| IP Rating | IP66 |
| Voltage | 24V |
| Power Supply | Sold separately |
| Country of origin | Australia |
Custom Luminaire Modifications
2700K colour temperature
Amber LED
Product Variants
HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the ICONIC | DOWNLIGHT Information Sheet
