Overview
Product Description

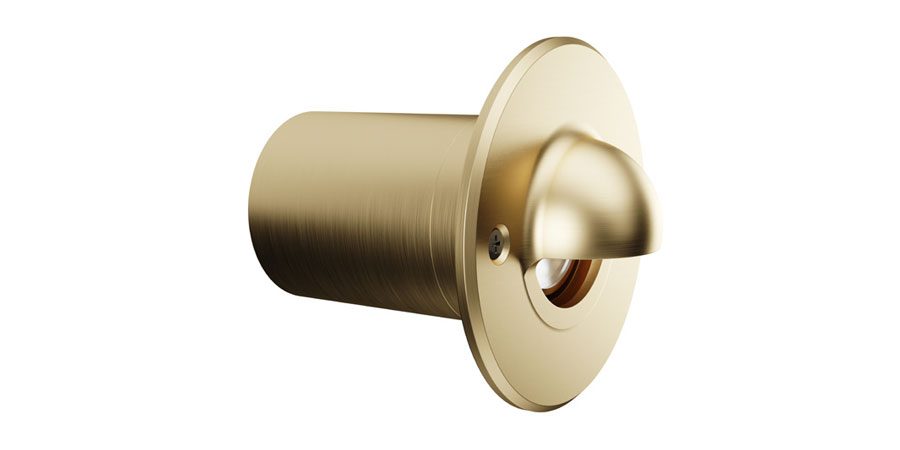

Designed and manufactured in Australia to withstand the harsh Australian conditions the Iconic In-wall luminaire is IP66 rated.
Presenting a sleek miniature style, the Iconic In-wall luminaire with eyelid allows maximum glare control while providing discreet forward an side throw optics for improved spacial lighting.
Product Details
| Absolute luminous flux | 180lm – 301lm |
| System watts | 6W / 8W / 11W |
| Luminaire efficacy | up to 74lm/W |
| Colour rendition Index | 80+ |
| Correlated colour temperature | Amber / 2700K / 3000K / 4000K / RGBW |
| Lumen maintenance | L90 87,000hours |
| Dimming method | Non dimm / DALI / DMX |
| Optic | PMMA Clear Lens |
| Beam angle | Forward / side throw |
| Luminaire housing | Aluminium |
| Luminaire housing colour | Clear anodised / Gunmetal anodised / Gold anodised |
| Custom body finishes | Custom anodised colour |
| IP Rating | IP66 |
| Voltage | 24V |
| Power Supply | Sold separately |
| Country of origin | Australia |
Custom Luminaire Modifications
2700K colour temperature
Amber LED
Product Variants
HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the ICONIC | EYELID WALL Information Sheet
