Overview
Product Description
Designed and manufactured in Australia to withstand the harsh Australian conditions the Iconic Projector is IP66 rated.
Presenting a sleek miniature style, the Iconic Projector features a variety of optics, accessories and outputs. Whether highlighting an architectural structure in RGBW or a discreetly illuminating a landscape in Amber that is home to wildlife the Iconic Projector is perfect for the job.
Product Details
| Absolute luminous flux | 357lm – 755lm |
| System watts | 6W / 8W / 11W |
| Luminaire efficacy | up to 74lm/W |
| Colour rendition Index | 80+ |
| Correlated colour temperature | Amber / 2700K / 3000K / 4000K / RGBW |
| Lumen maintenance | L90 87,000hours |
| Dimming method | Non dimm / DALI / DMX |
| Optic | PMMA Clear Lens |
| Beam angle | 8° / 14° / 22° / 40° / Asymmetric / Linear / Oval |
| Luminaire housing | Aluminium |
| Luminaire housing colour | Clear anodised / Gunmetal anodised / Gold anodised |
| Custom body finishes | Custom anodised colour |
| IP Rating | IP66 |
| Voltage | 24V |
| Power Supply | Sold separately |
| Country of origin | Australia |
Custom Luminaire Modifications
2700K colour temperature
Amber LED
Optional Accessories

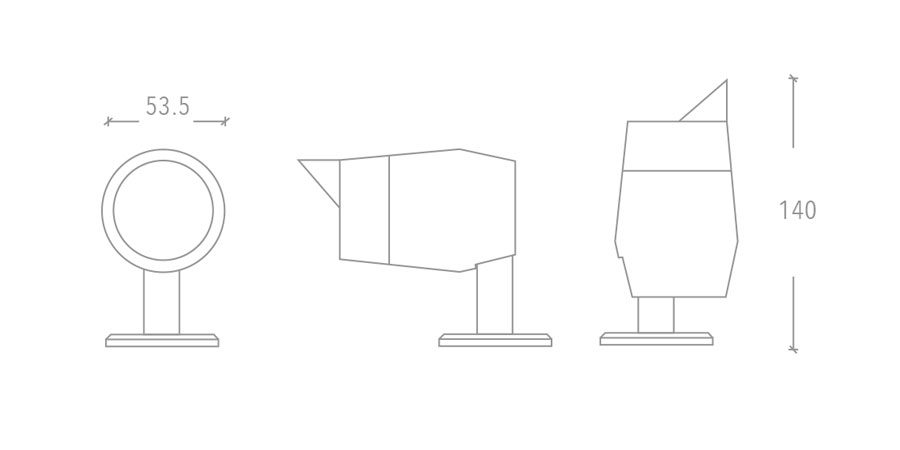

GLARE SHIELD
IGL10.GLARE.SHIELD

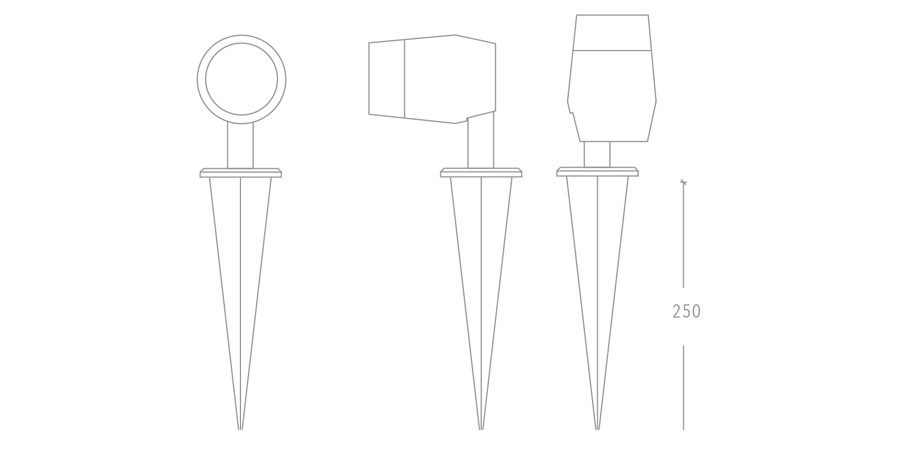

GROUND SPIKE
IGL10.GROUND.SPIKE
Product Variants
HOW TO SPECIFY
FIXED CCT
Select from the available options to configure luminaire
RGBW
Select from the available options to configure luminaire
For more details, download the ICONIC | PROJECTOR Information Sheet
