Overview

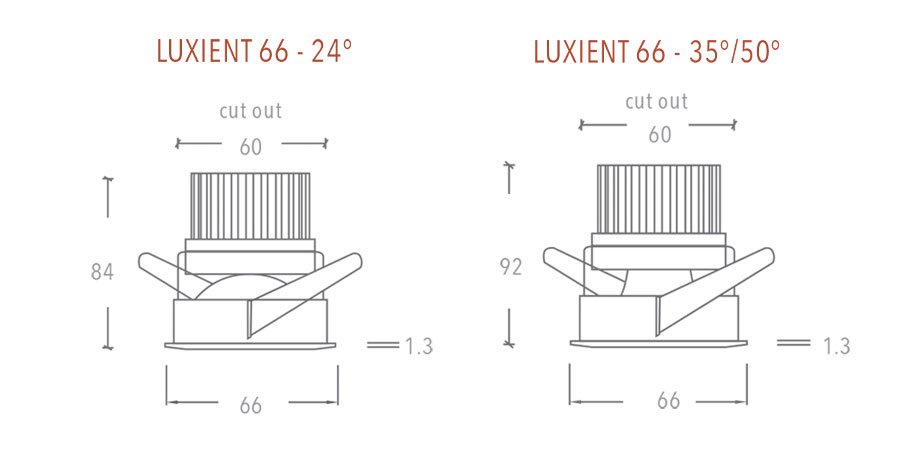

LUXIENT 66 DOWNLIGHT Line Drawing

Product Details

  • 95+ CRI
  • Up to 101 Lm/w
  • 3000K or 4000K
  • High quality, mirror finish low glare reflector
  • Thin 1.3mm white polycarbonate trim
  • Made in Australia
  • L90B10 up to 90,000 hours
  • 2 X SDCM
  • IPX4 avaliable
  • Lumen outputs listed based on 50reflector
  • Cyanosis approval in 4000K

Codes & Downloads

LX66 – 150mA

Non DimmableTrailing Edge DimmableDALI DimmableBeamCCTLumensWattsLm/W
LX66.150.24.93.61LX66.150.24.93.63LX66.150.24.93.6624°3000K6436.599
LX66.150.24.94.61LX66.150.24.94.63LX66.150.24.94.6624°4000K6586.5101
LX66.150.35.93.61LX66.150.35.93.63LX66.150.35.93.6635°3000K6436.599
LX66.150.35.94.61LX66.150.35.94.63LX66.150.35.94.6635°4000K6586.5101
LX66.150.50.93.61LX66.150.50.93.63LX66.150.50.93.6650°3000K6436.599
LX66.150.50.94.61LX66.150.50.94.63LX66.150.50.94.6650°4000K6586.5101

LX66 – 250mA

Non DimmableTrailing Edge DimmableDALI DimmableBeamCCTLumensWattsLm/W
LX66.250.24.93.61LX66.250.24.93.63LX66.250.24.93.6624°3000K9851098
LX66.250.24.94.61LX66.250.24.94.63LX66.250.24.94.6624°4000K101410101
LX66.250.35.93.61LX66.250.35.93.63LX66.250.35.93.6635°3000K9851098
LX66.250.35.94.61LX66.250.35.94.63LX66.250.35.94.6635°4000K101410101
LX66.250.50.93.61LX66.250.50.93.63LX66.250.50.93.6650°3000K9851098
LX66.250.50.94.61LX66.250.50.94.63LX66.250.50.94.6650°4000K101410101

For more details, download the LUXIENT 66 DOWNLIGHT Information Sheet

Download the IES file for LUXIENT 66 DOWNLIGHT
